NANO-PV-D4251/N4551/D5251 EPIC SBC

Page 26

3.2.12 PCI-104 Connector

CN Label:

PCI-104_PLUS1

CN Type:

PCI-104 connector

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-14

The PCI-104 connector is for installing a PCI-104 expansion card.

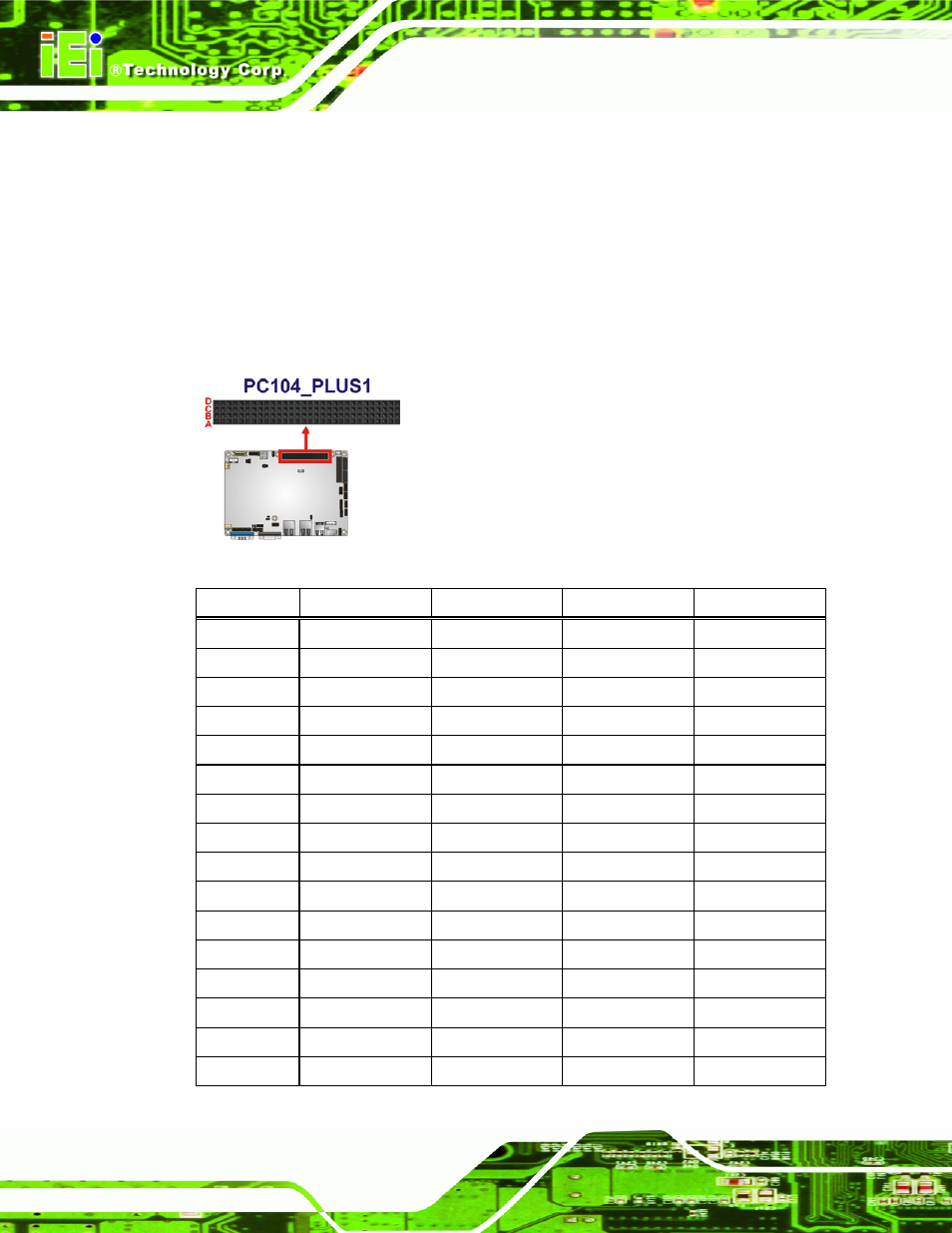

Figure 3-13: PCI-104 Connector Location

Pin

Row A

Row B

Row C

Row D

1

GND/5 V

TBD1

5 V

AD00

2 VI/O1 AD02 AD01 +5

V

3 AD05 GND AD04 AD03

4 C/BE0#

AD07 GND AD06

5 GND AD09 AD08 GND

6 AD11 VI/O2 AD10 M66EN

7 AD14 AD13 GND AD12

8

+3.3 V

C/BE1#

AD15

+3.3 V

9 SERR#

GND SB0# PAR

10 GND

PERR# +3.3

V SDONE

11 STOP# +3.3

V LOCK# GND

12 +3.3

V TRDY# GND

DEVSEL#

13 FRAME#

GND

IRDY# +3.3

V

14 GND

AD16 +3.3

V C/BE2#

15

AD18 +3.3

V

AD17 GND

16

AD21 AD20 GND AD19
