NANO-PV-D4251/N4551/D5251 EPIC SBC

Page 34

Pin Description

Pin Description

1 VCC

2 GND

3 CS#

4 CLOCK

5 SO

6 SI

7 NC

8 NC

Table 3-22: SPI Flash Connector Pinouts

3.2.21 TPM Connector

CN Label:

TPM1

CN Type:

20-pin header (2x10)

CN Location:

See Figure 3-22

CN Pinouts:

See Table 3-23

The Trusted Platform Module (TPM) connector secures the system on bootup.

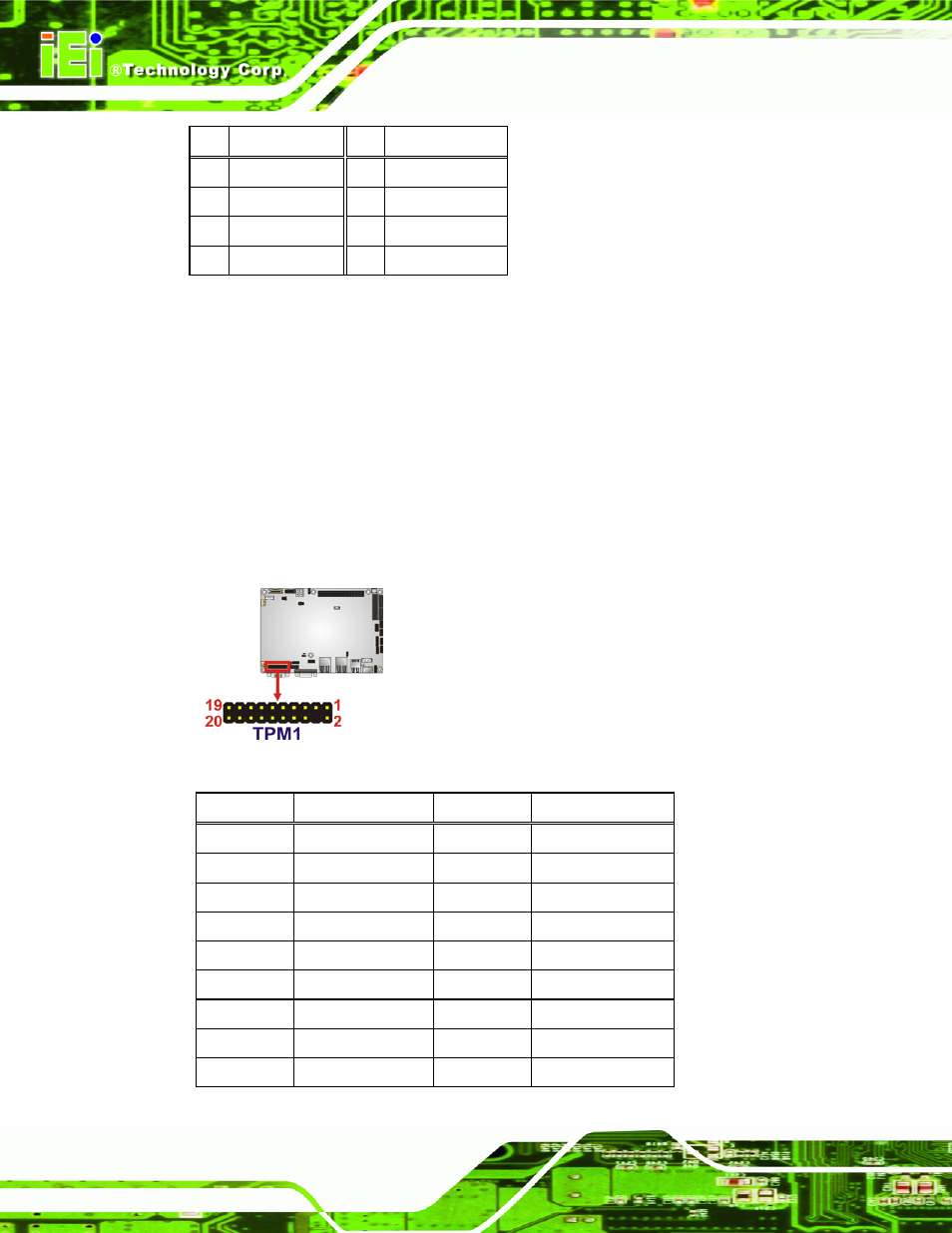

Figure 3-22: TPM Connector Pinout Locations

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

TPMCLK

2

GND

3

LPC_FRAME#

4

NC

5

LRESET#

6

VCC5S

7

LPC_AD3

8

LPC_AD2

9

VCC3S

10

LPC_AD1

11

LPC_AD0

12

GND

13

SMBCLK

14

SMBDATA

15

VCC3DUAL

16

SERIRQ

17

GND

18

NC
