NANO-PV-D4251/N4551/D5251 EPIC SBC

Page 52

4.5.9 LVDS Voltage Selection

WARNING:

Incorrect voltages can destroy the LCD panel. Make sure to select a

voltage that matches the voltage required by the LCD panel.

Jumper Label:

J_VLVDS1

Jumper Type:

6-pin header

Jumper Settings:

See Table 4-10

Jumper Location:

See Figure 4-10

The LCD voltage selection jumper sets the voltage of the power supplied to the LCD

panel.

Setting Description

1-2

+3.3 V (Default)

3-4

+5.0 V

5-6

+12 V

Table 4-10: LVDS Voltage Selection Jumper Settings

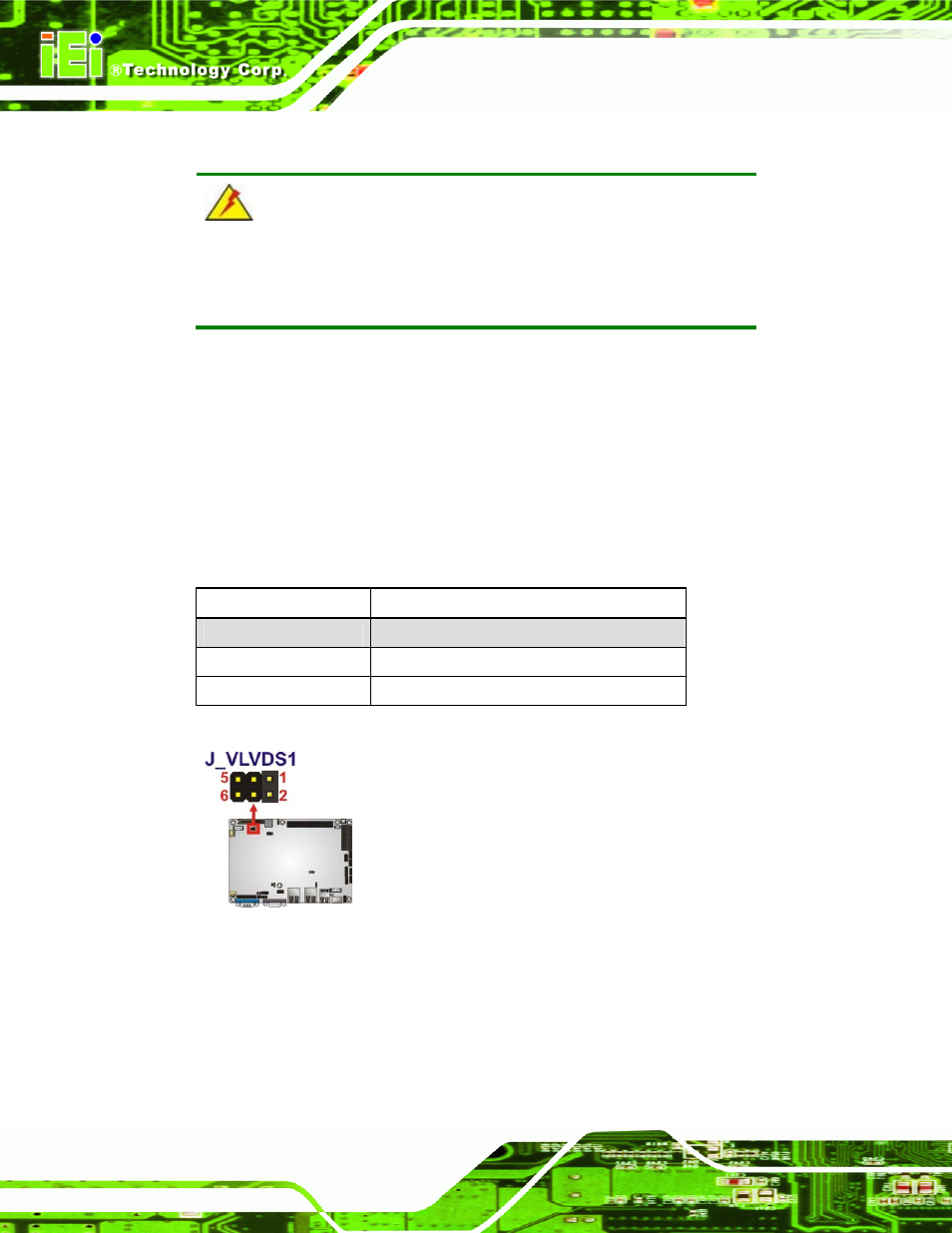

Figure 4-10: LVDS Voltage Selection Jumper Locations

4.5.10 PCI-104 Voltage Setup

Jumper Label:

JP1

Jumper Type:

3-pin header
