NANO-PV-D4251/N4551/D5251 EPIC SBC

Page 25

3.2.11 Parallel Port Connector

CN Label:

LPT1

CN Type:

26-pin box header

CN Location:

See Figure 3-12

CN Pinouts:

See Table 3-13

The parallel port connector connects to a parallel port connector interface or some other

parallel port device such as a printer.

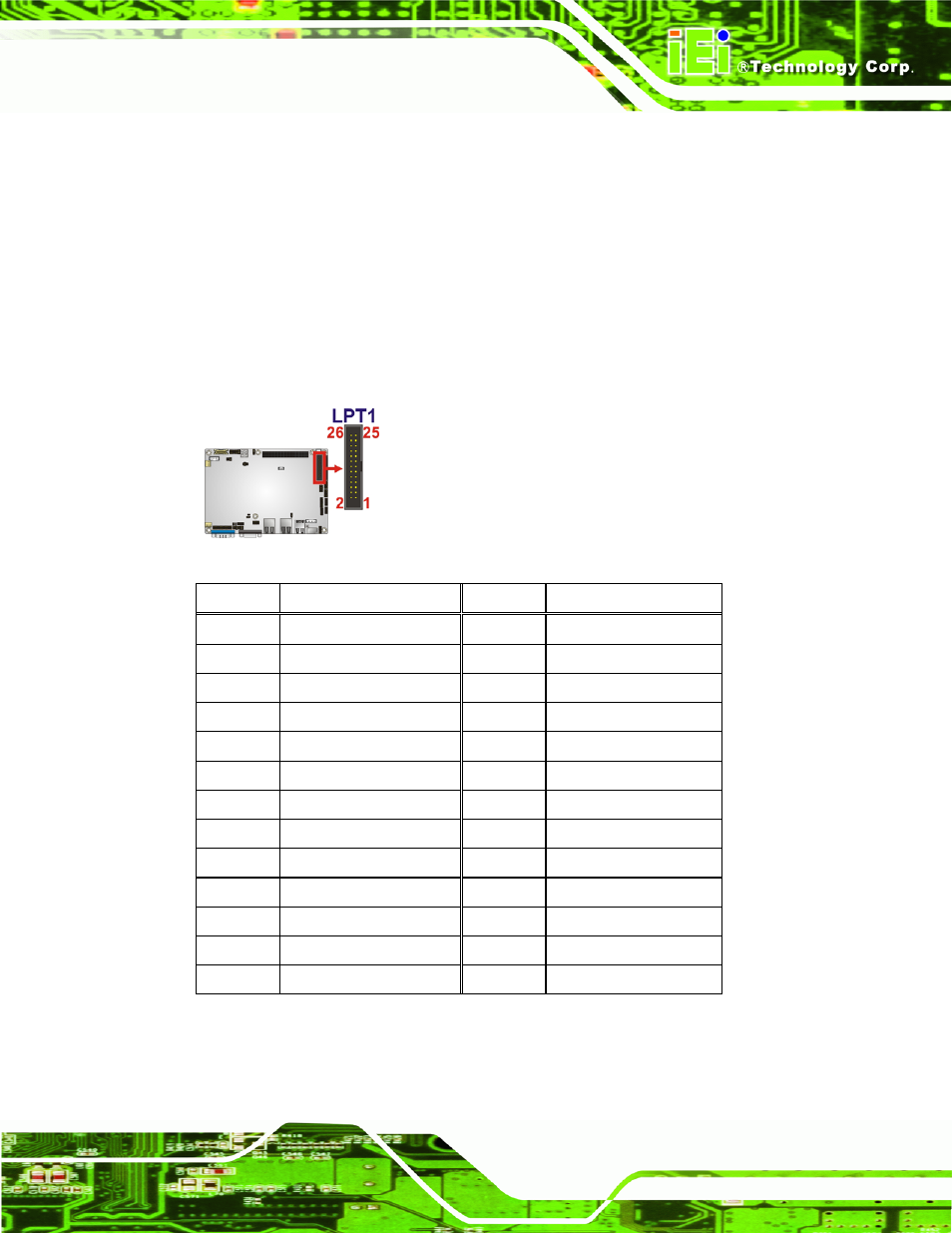

Figure 3-12: Parallel Port Connector Location

Pin Description

Pin Description

1 STB

2 AFD

3 PTD0

4 ERR

5 PTD1

6 INIT

7 PTD2

8 SLIN

9 PTD3

10

GROUND

11 PTD4

12 GROUND

13 PTD5

14 GROUND

15 PTD6

16 GROUND

17 PTD7

18 GROUND

19 ACK

20 GROUND

21 BUSY

22 GROUND

23 PE

24 GROUND

25 SLCT

26 NC

Table 3-13: Parallel Port Connector Pinouts
