NANO-PV-D4251/N4551/D5251 EPIC SBC

Page 20

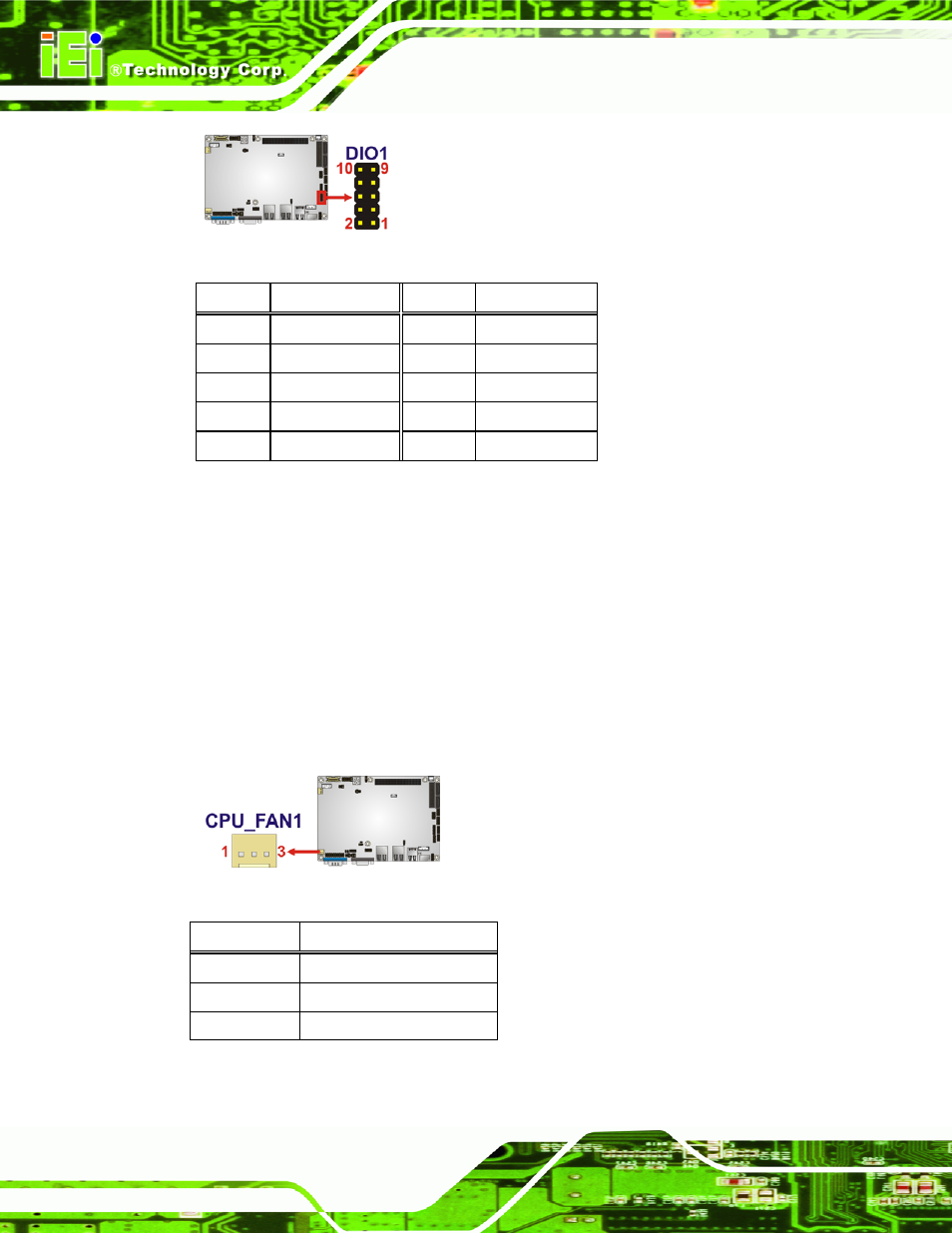

Figure 3-5: Digital I/O Connector Locations

Pin Description Pin Description

1 GND

2 +5V

3 Output

3 4 Output

2

5 Output

1 6 Output

0

7 Input

3

8 Input

2

9

Input 1

10

Input 0

Table 3-6: Digital I/O Connector Pinouts

3.2.5 Fan Connector (CPU)

CN Label:

CPU_FAN1

CN Type:

3-pin wafer (1x3)

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-7

The fan connector attaches to a CPU cooling fan.

Figure 3-6: CPU Fan Connector Location

Pin Description

1 FANIO1

2 +12V

3 GND

Table 3-7: CPU Fan Connector Pinouts
