NANO-9452 EPIC Motherboard
Page 61
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
7 GND 8 USBV3L 5V
Table 4-29: USB Port Pinouts
4.3.5 VGA Connector
CN Label: VGA1
CN Type: 15-pin Female
CN Location: See Figure 4-25
CN Pinouts: See Figure 4-29 and Table 4-30
The NANO-9452 has a single 15-pin female connector for connectivity to standard display
devices.

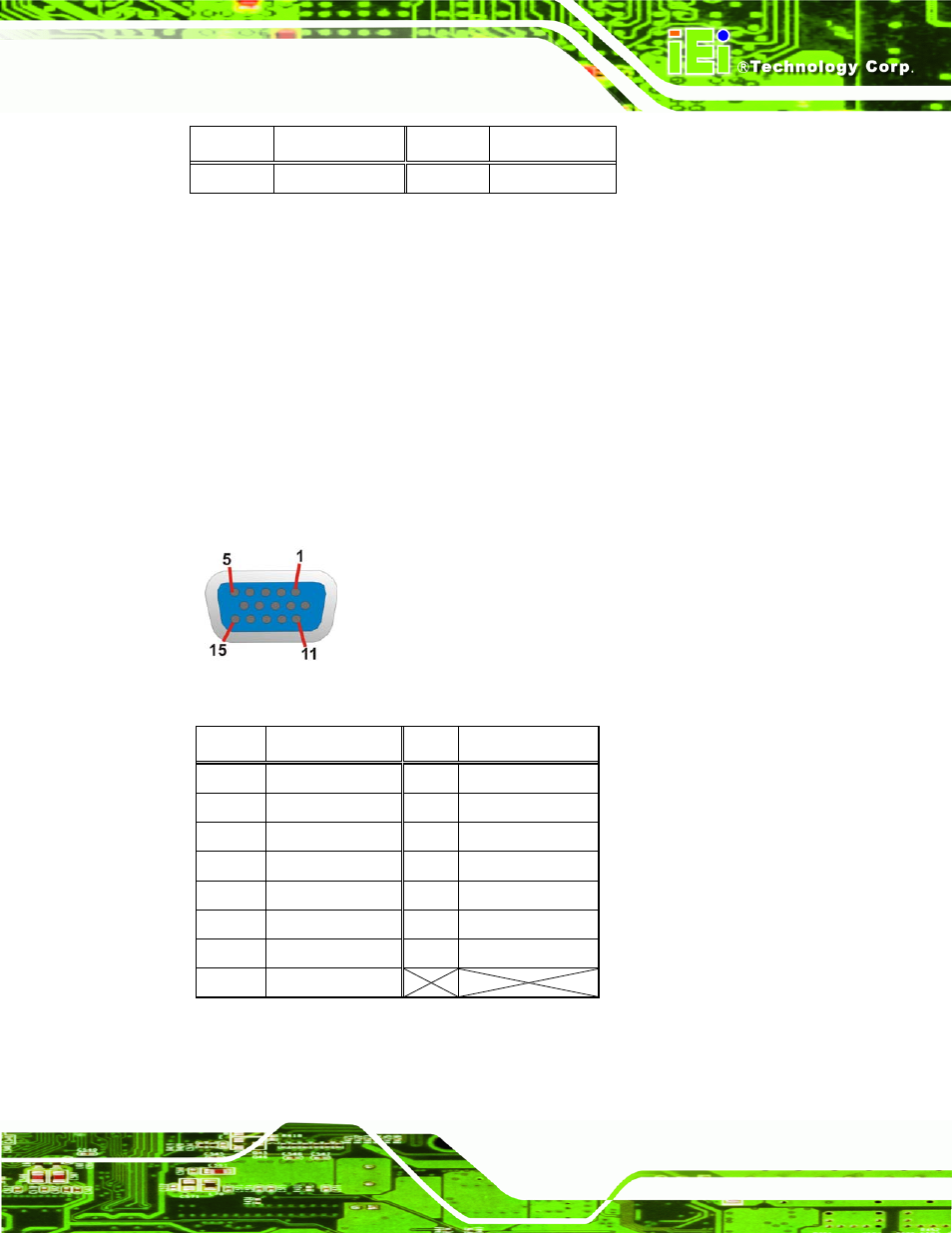

Figure 4-29: VGA Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC / NC 10 GND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 4-30: VGA Connector Pinouts
