NANO-9452 EPIC Motherboard

Page 58

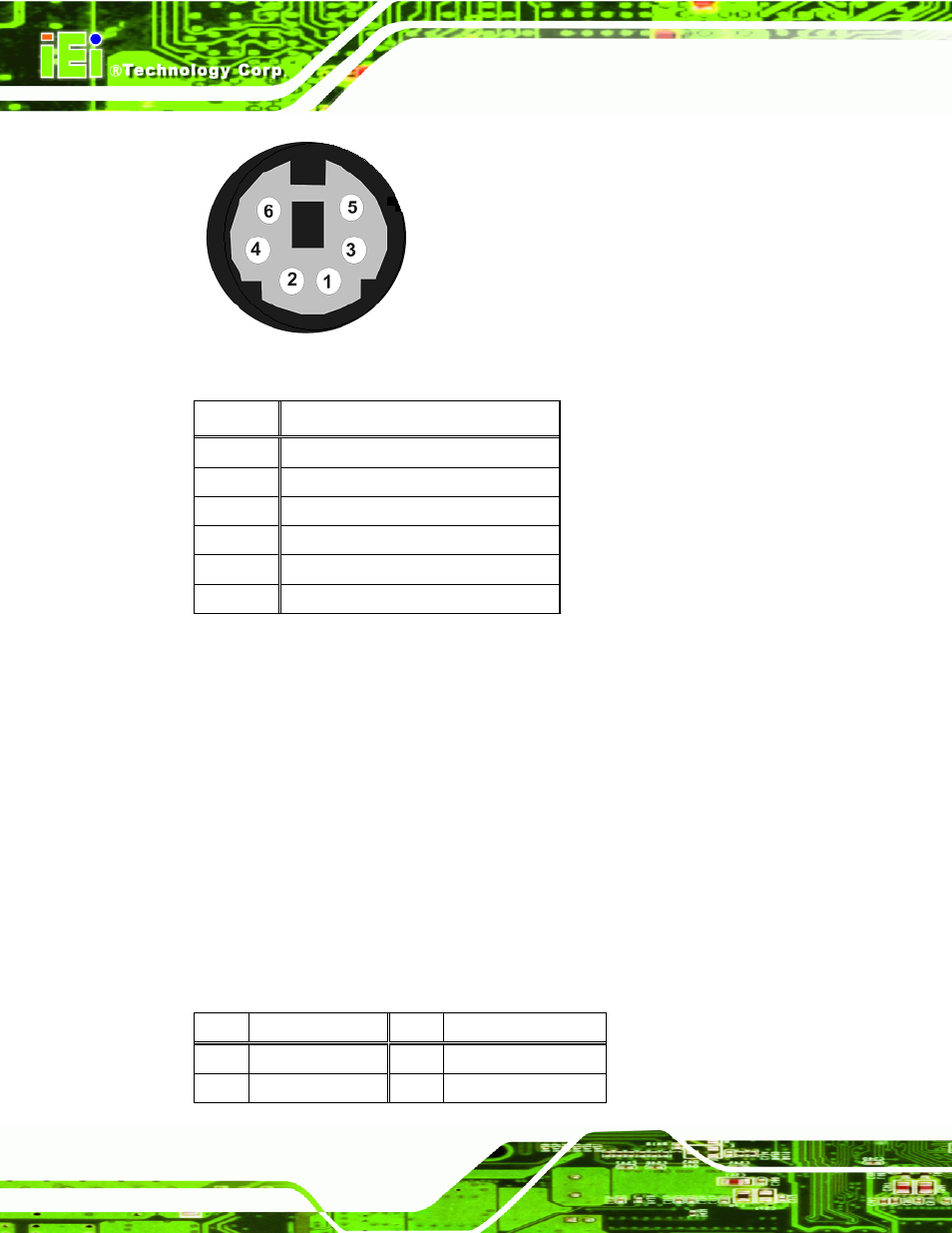

Figure 4-26: PS/2 Pinouts

PIN DESCRIPTION

1 KEYBOARD

DATA

2 MOUSE

DATA

3 GND

4 VCC

5 KEYBOARD

CLOCK

6 MOUSE

CLOCK

Table 4-25: Mini-DIN 6 PS/2 Connector Pinouts

4.3.2 LAN Connectors

CN Label:

LAN1 and LAN2

CN Type:

RJ-45

CN Location:

See Figure 4-25

CN Pinouts:

See Table 4-26

The NANO-9452 is equipped with two built-in GbE Ethernet controllers. The controllers

can connect to the LAN through two RJ-45 LAN connectors. There are two LEDs on the

connector indicating the status of LAN. The pin assignments are listed in the following

table:

PIN DESCRIPTION PIN

DESCRIPTION

1 MDIA3-

5 MDIA1+

2 MDIA3+

6 MDIA2+
