6.3.4 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 7) shows the operating
temperature, fan speeds and system voltages.

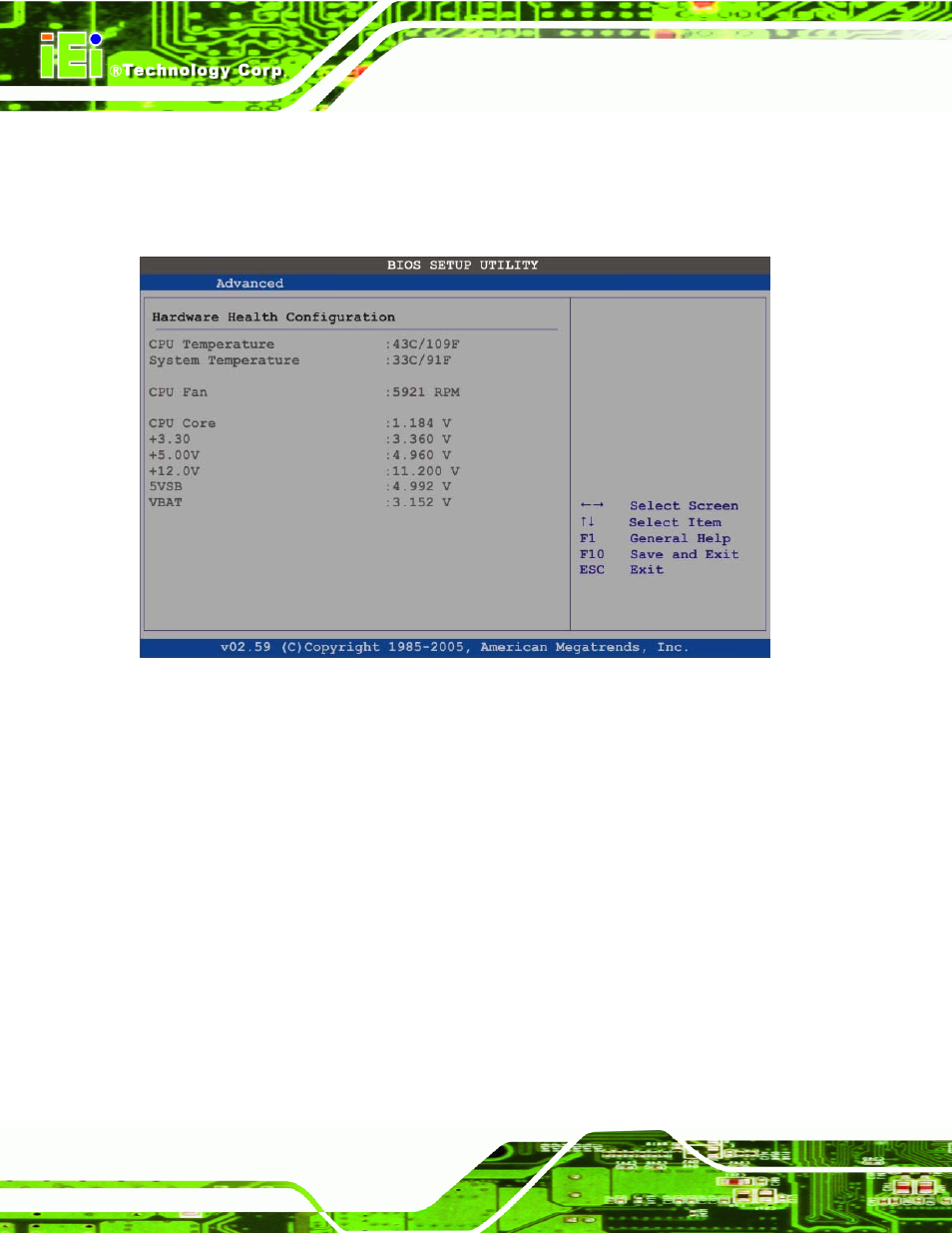

BIOS Menu 7: Hardware Health Configuration
 Hardware Health Monitoring
Use the Hardware Health Configuration menu (BIOS Menu 7) monitor system
environmental parameters. The following health parameters are monitored.
 Temperature monitoring: The following system temperatures are monitored:
o CPU Temperature
o System Temperature
 Fan Speed Monitoring: The following system fan speeds are monitored:
o System FAN Speed
 Voltage Monitoring: The following system voltages are monitored:
o CPU Core
o +3.30V
o +5.00V
