NANO-9452 EPIC Motherboard

Page 45

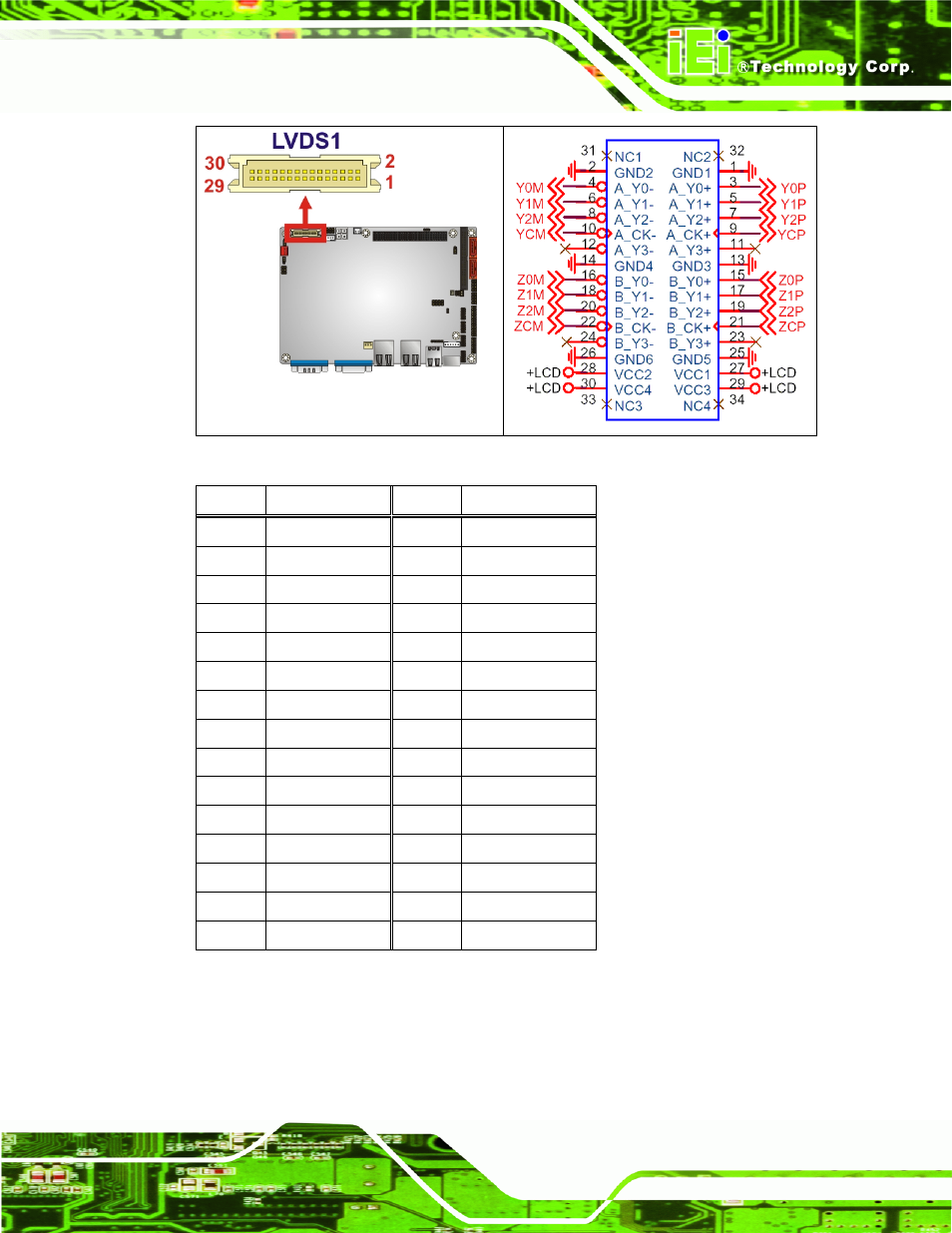

Figure 4-14: LVDS LCD Connector Pinout Locations

PIN NO. DESCRIPTION PIN NO.

DESCRIPTION

1 GROUND 2 GROUND

3 LVDSA_Y0+

4 LVDSA_Y0-

5 LVDSA_Y1+

6 LVDSA_Y1-

7 LVDSA_Y2+

8 LVDSA_Y2-

9 LVDSA_CLK+

10

LVDSA_CLK-

11 LVDS_DAP3 12 LVDS_DAN3

13 GROUND

14 GROUND

15 LVDSB_Y0+ 16 LVDSB_Y0-

17 LVDSB_Y1+ 18 LVDSB_Y1-

19 LVDSB_Y2+ 20 LVDSB_Y2-

21 LVDSB_CLK+

22 LVDSB_CLK-

23 LVDS_DBP3 24 LVDS_DBN3

25 GROUND

26 GROUND

27 VCC_LVDS 28 VCC_LVDS

29 VCC_LVDS 30 VCC_LVDS

Table 4-14: LVDS LCD Port Connector Pinouts

4.2.13 Mini PCIe Socket

CN Label:

CN4
