NANO-9452 EPIC Motherboard
Page 57
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
7 GND 8 VCC
Table 4-24: USB Port Connector Pinouts
4.3 External Peripheral Interface Connector Panel
Figure 4-25 shows the NANO-9452 rear panel. The NANO-9452 rear panel consists of
two RJ-45 Ethernet connectors, a PS/2 keyboard connector a USB port and a VGA
connector. These connectors are accessible when the NANO-9452 is installed in a
chassis.

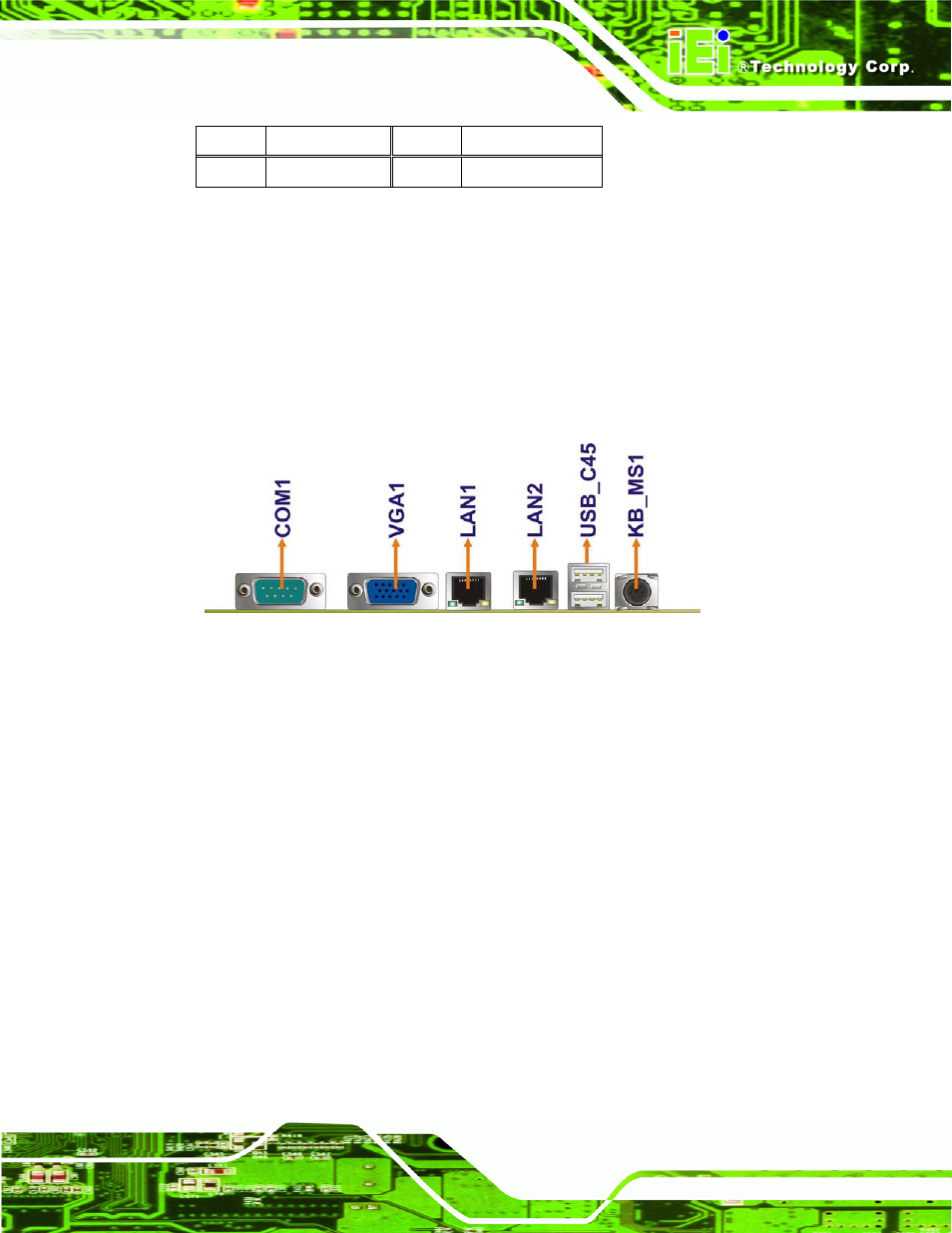

Figure 4-25: NANO-9452 External Peripheral Interface Connector
4.3.1 Keyboard/Mouse Connector
CN Label: KB_MS1
CN Type: Mini-DIN 6 PS/2
CN Location: See Figure 4-25
CN Pinouts: See Figure 4-26 and Table 4-25
The NANO-9452 CPU card has a mini-DIN 6 PS/2 connector on the mounting bracket for
easy connection to a PS/2 keyboard or PS/2 mouse. The card comes with a cable to
convert the mini-DIN 6 PS/2 into two mini-DIN 6 PS/2 connectors for keyboard and mouse
connection.
