NANO-9452 EPIC Motherboard
Page 14
 Capacities of 256 MB, 512 MB, 1.0 GB or 2.0 GB
 Transfer speeds of 400 MHz, 533 MHz, or 667 MHz
 64-bit wide channel

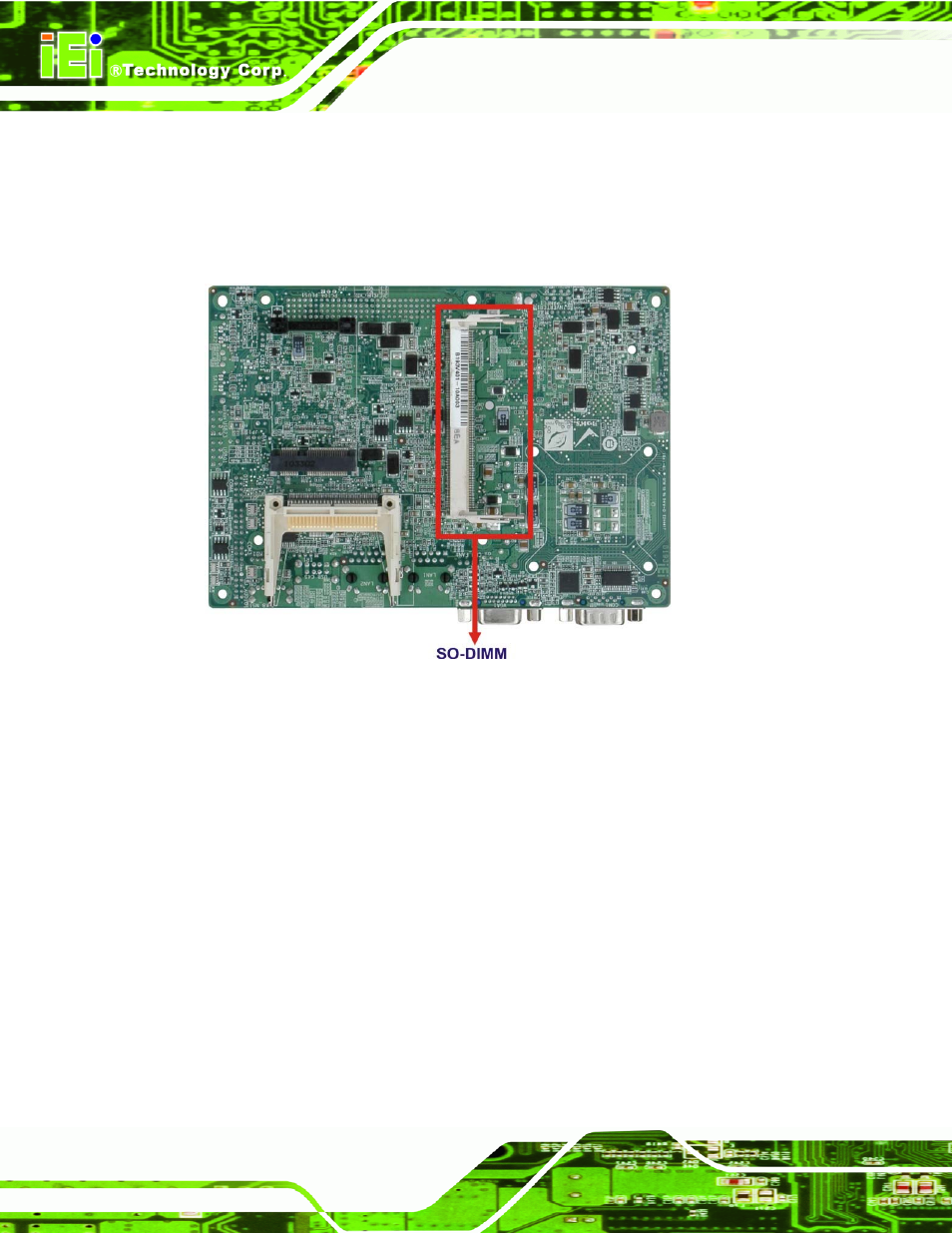

The memory socket is shown in Figure 2-4.
Figure 2-4: 200-pin SO-DIMM Socket
2.5.3 Intel
®
945GME Integrated Graphics
The Intel® 945GME Northbridge chipset has an Intel® Gen. 3.5 integrated graphics
engine that supports the following display devices:
 Analog CRT
 LVDS
 TV-Out
 S-DVO ports
2.5.3.1 Intel
®
945GME Analog CRT Support
A DB-15 VGA connector on the external peripheral interface connector panel is interfaced
to the Intel® 945GME graphics engine. The Intel® 945GME internal graphics engine, with
