NANO-9452 EPIC Motherboard

Page 43

4.2.10 Inverter Connector

CN Label:

INV1

CN Type:

5-pin connector

CN Location:

See Figure 4-12

CN Pinouts:

See Table 4-12

The backlight inverter connector provides power to an LCD panel.

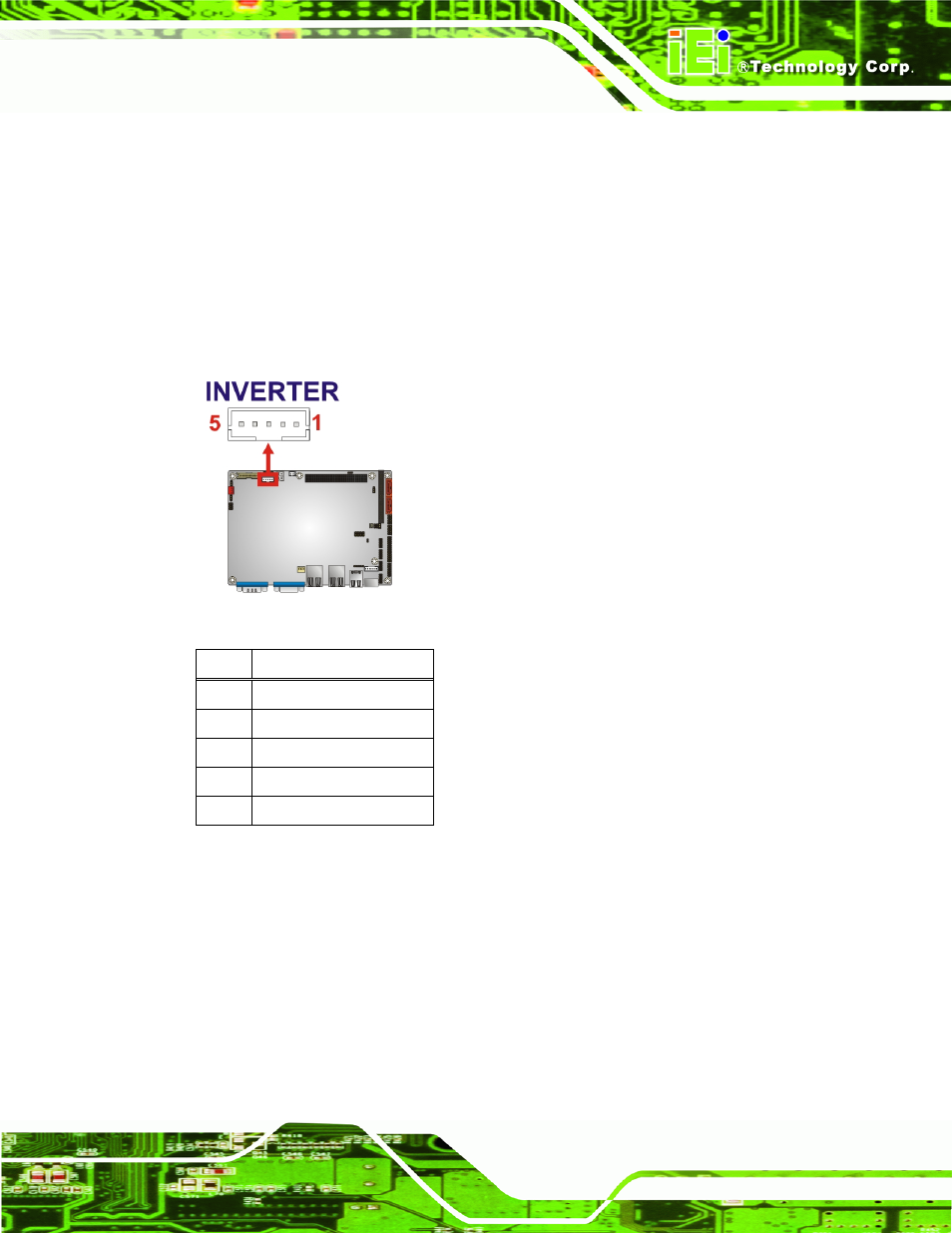

Figure 4-12: Inverter Connector Location

PIN Description

1 Brightness

2 GND

3 +12V

4 GND

5 BL_EN

Table 4-12: Inverter Connector Pinouts

4.2.11 Keyboard/Mouse Connector

CN Label:

KB1

CN Type:

6-pin header (1x6)

CN Location:

See Figure 4-13

CN Pinouts:

See Table 4-13
