ICE-CV-D25501/N26001 COM Express Module
Page 3
1.3 Features
Some of the ICE-CV-D25501/N26001 COM Express module features are listed below:
Complies with COM Express form factor
Embedded Intel® Atom™ D2550/N2600 CPU and Intel® NM10 PCH
Supports DDR3/DDR3L (1.35V) SO-DIMM
Supports 18-/24-bit single-channel LVDS, analog CRT (VGA) and dual DDI
Supports USB 3.0, SATA 3Gb/s and GbE
Supports eight USB 2.0 devices
RoHS compliant
1.4 Connectors

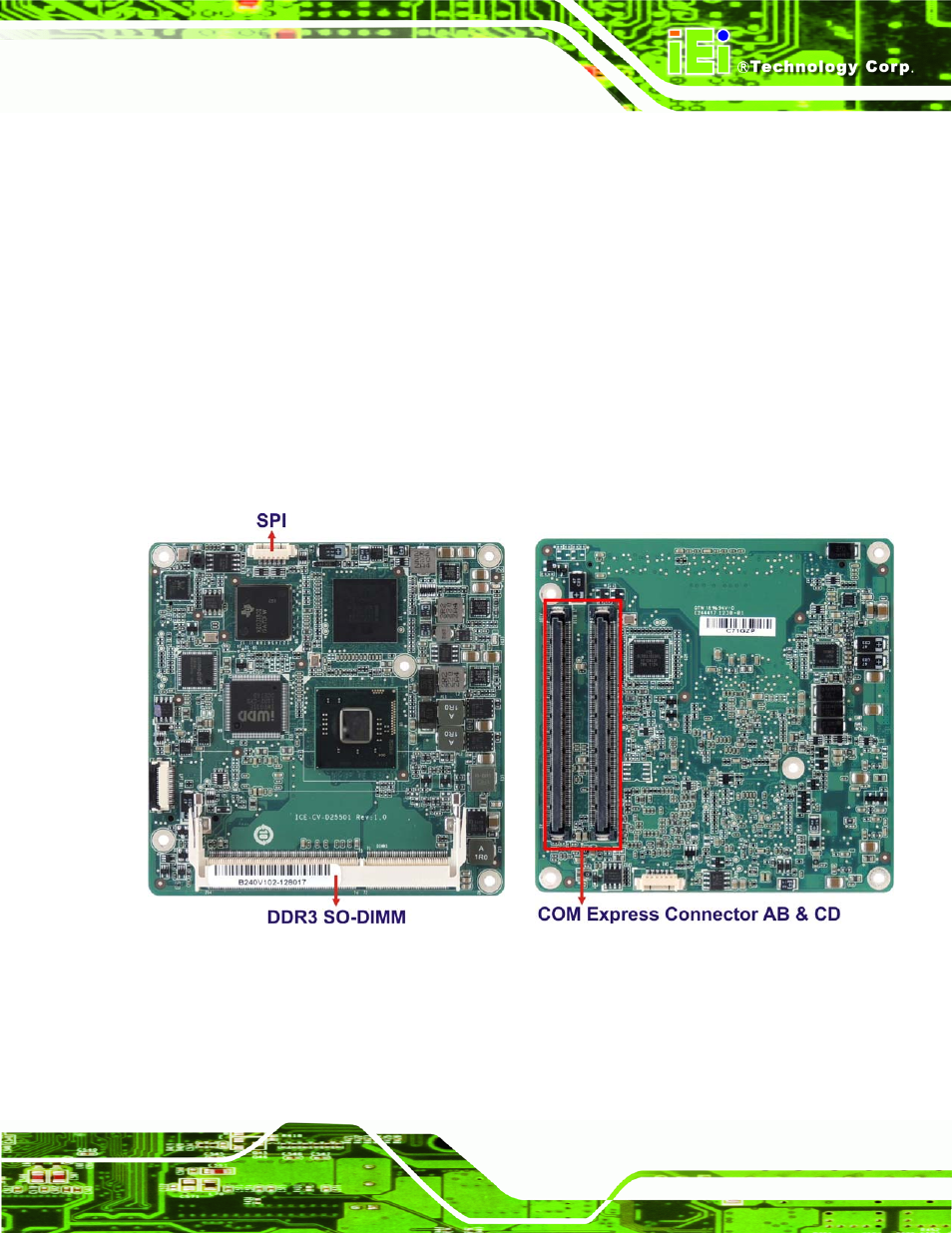

The connectors on the ICE-CV-D25501/N26001 are shown in the figure below.
Figure 1-2: Connectors
