SATA cable and insert the cable connector into the onboard SATA drive

connector. See

852H

Figure 4-12.

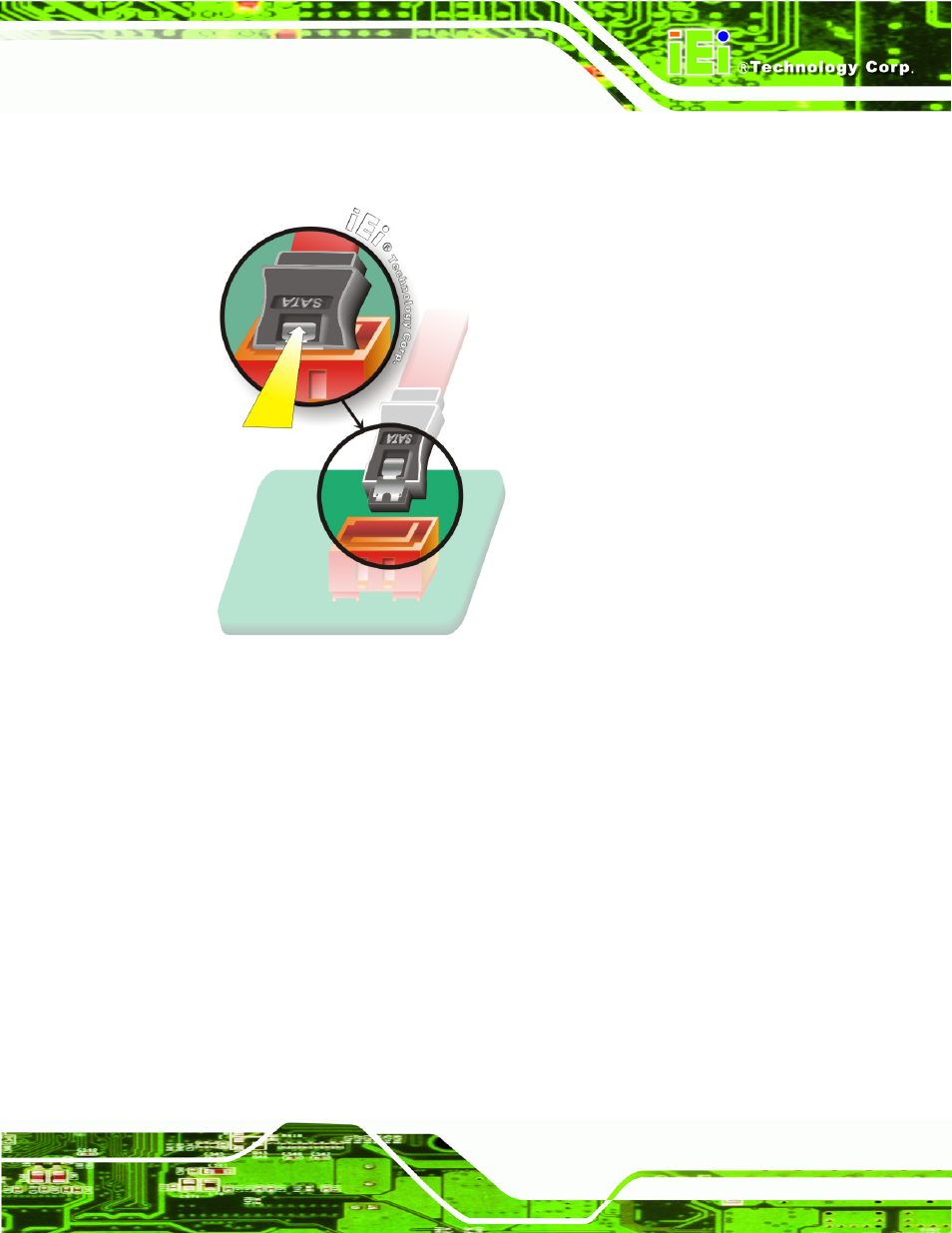

Figure 4-12: SATA Drive Cable Connection

Step 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See

853H

Figure 4-13.

Step 4:

Connect the SATA power cable. Connect the SATA power connector to the

back of the SATA drive. See

854H

Figure 4-13.
