PICOe-PV-D4251/N4551/D5251 User Manual

Page 26

3.2.12 Parallel Port Connector

CN Label:

LPT1

CN Type:

26-pin header

CN Location:

See Figure 3-14

CN Pinouts:

See Table 3-14

The 26-pin parallel port connector connects to a parallel port connector interface or some

other parallel port device such as a printer.

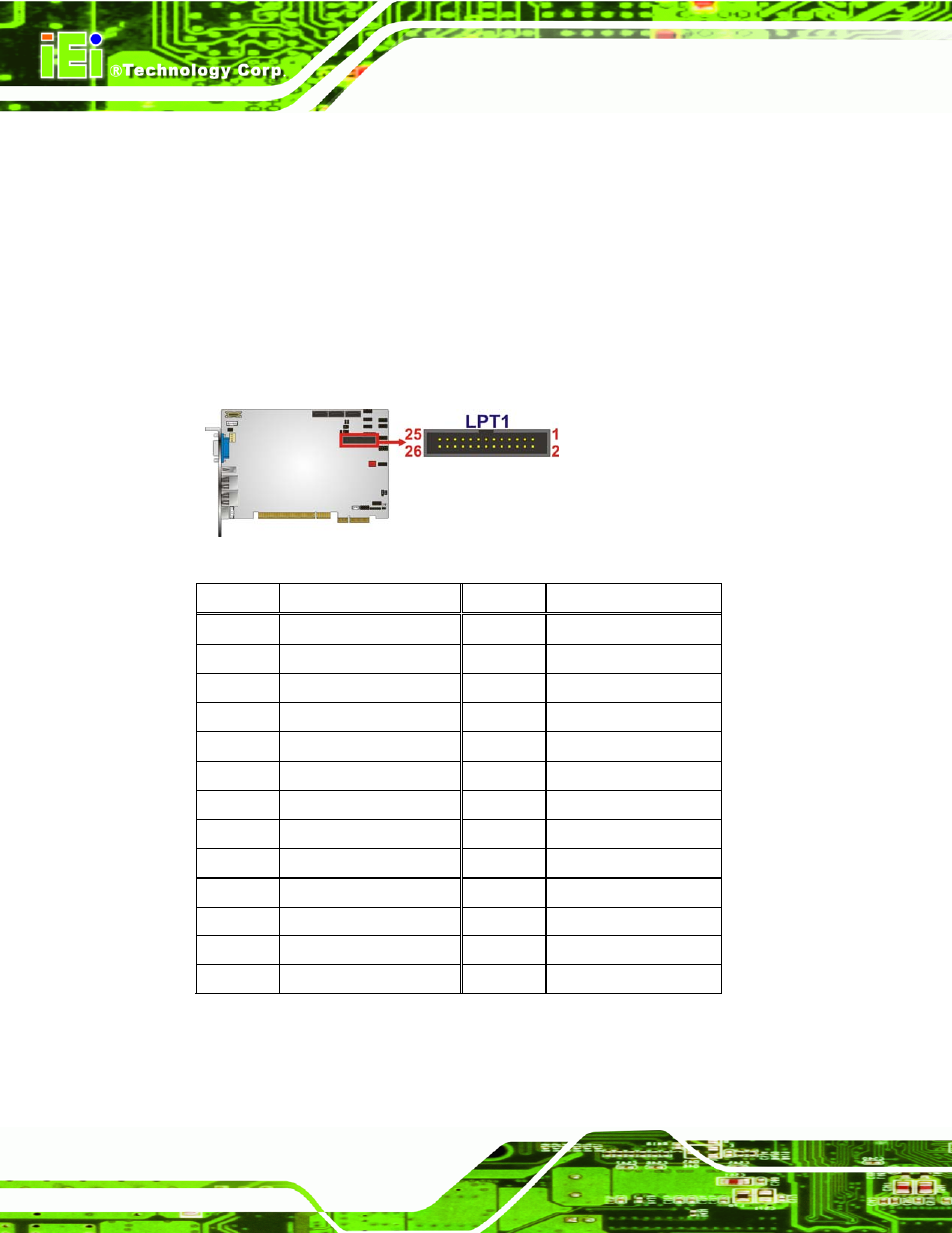

Figure 3-14: Parallel Port Connector Location

Pin Description

Pin Description

1 STB

2 AFD

3 PTD0

4 ERROR#

5 PTD1

6 INITIALIZE

7 PTD

2

8 SLIN

9 PTD3

10

GROUND

11 PTD

4

12 GROUND

13 PTD

5

14 GROUND

15 PTD

6

16 GROUND

17 PTD7

18 GROUND

19 ACK

20 GROUND

21 BUSY

22 GROUND

23 PE

24 GROUND

25 SLCT

26 NC

Table 3-14: Parallel Port Connector Pinouts
