PICOe-PV-D4251/N4551/D5251 User Manual
Page 16
Connector Type Label
Ethernet connector RJ-45 LAN1
Ethernet connector RJ-45 LAN2
Keyboard/mouse PS/2 PT1
USB port USB port USB6
VGA port connector 15-pin female VGA1
Table 3-2: Rear Panel Connectors
3.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the CPU card and are only accessible when
the CPU card is outside of the chassis. This section has complete descriptions of all the
internal, peripheral connectors on the PICOe-PV-D4251/N4551/D5251.
3.2.1 ATX Power Supply Enable Connector
CN Label: ATXCTL1
CN Type: 3-pin wafer (1x3)
CN Location: See Figure 3-3
CN Pinouts: See Table 3-3
The ATX power supply enable connector enables the PICOe-PV-D4251/N4551/D5251 to
be connected to an ATX power supply. In default mode, the
PICOe-PV-D4251/N4551/D5251 can only use an AT power supply. To enable an ATX
power supply the AT Power Select jumper must also be configured. Please refer to
Section 4.5.1 for more details.

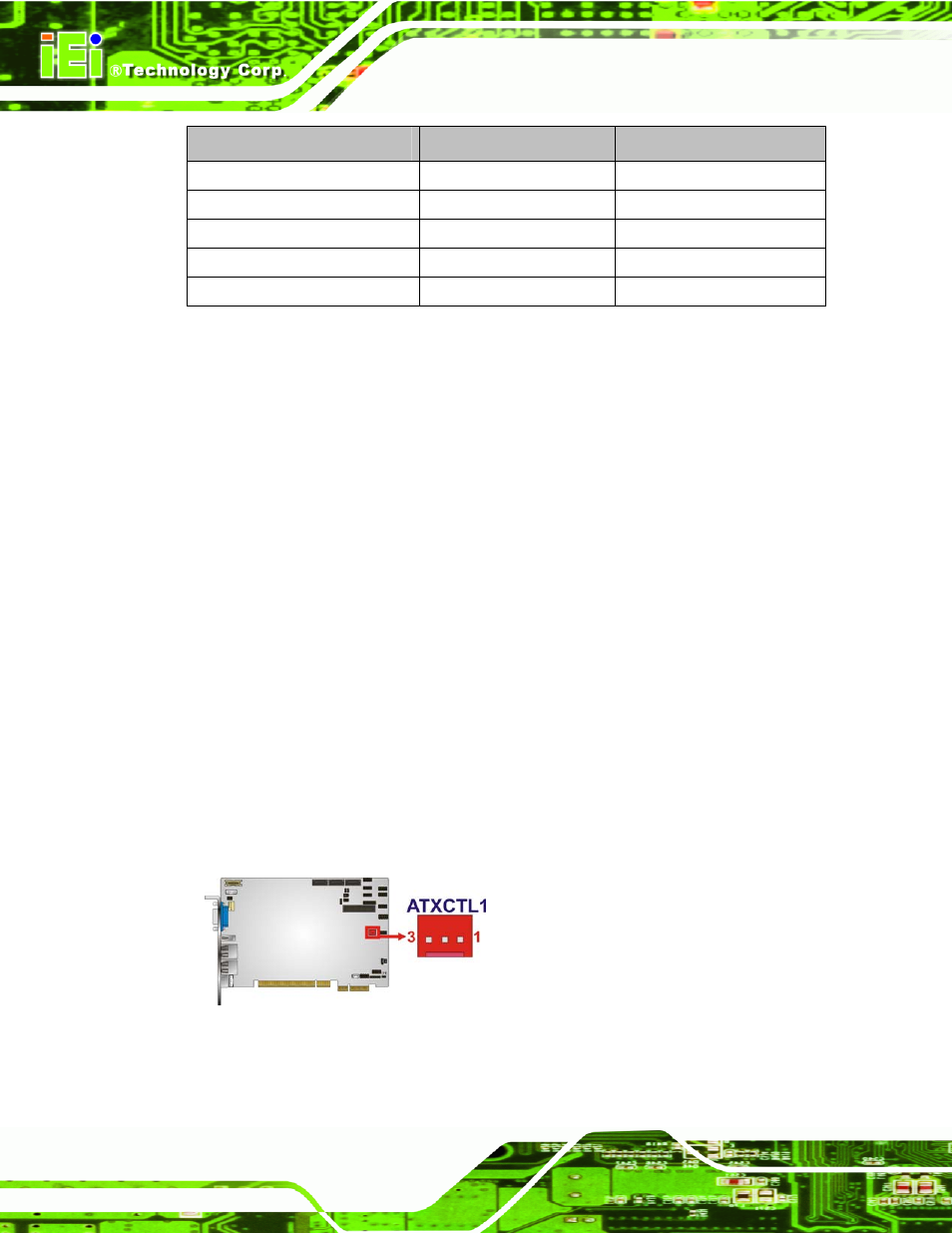

Figure 3-3: ATX Power Supply Enable Connector Location
