PICOe-PV-D4251/N4551/D5251 User Manual

Page 19

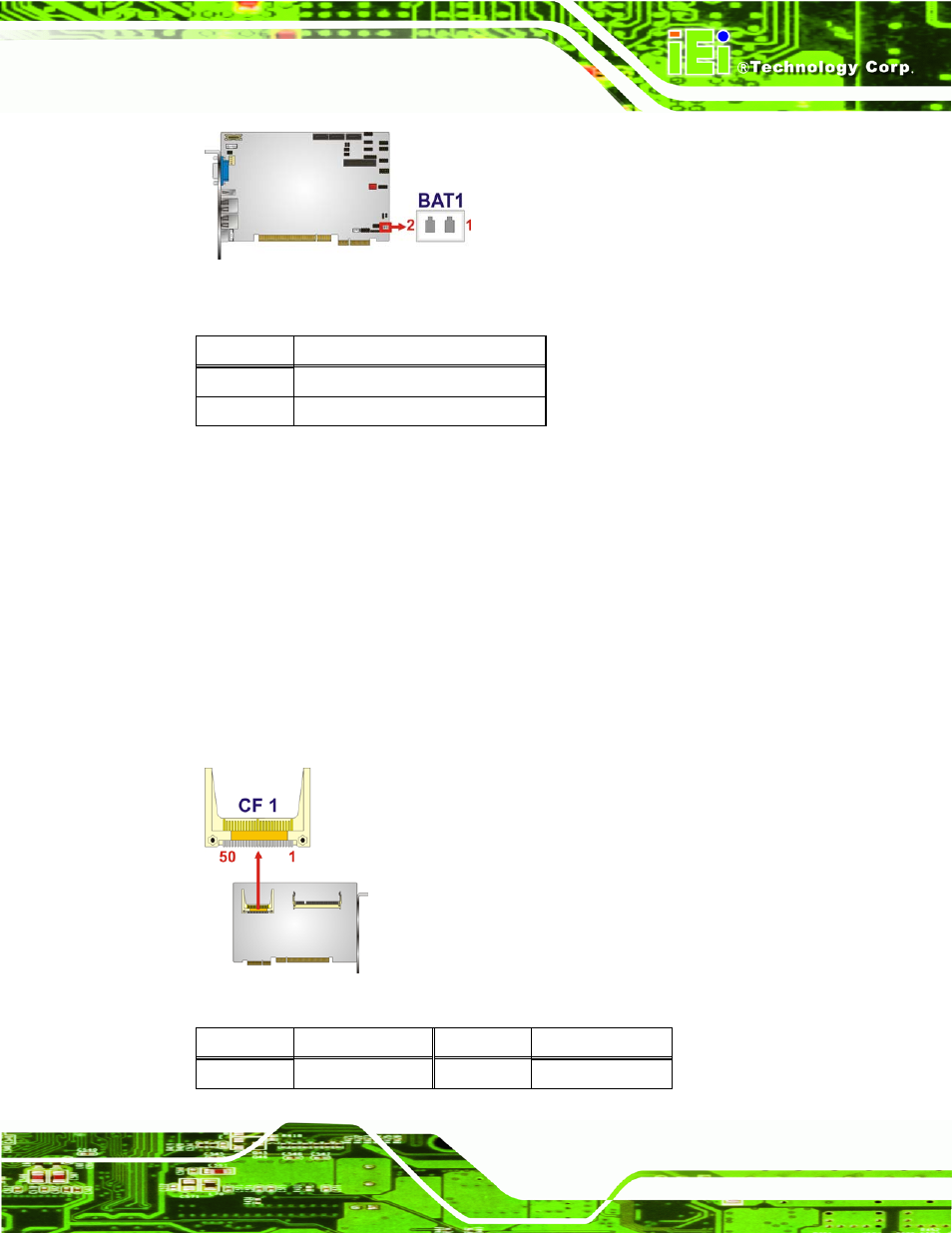

Figure 3-6: Battery Connector Location

Pin Description

1 Battery+

2 Ground

Table 3-6: Battery Connector Pinouts

3.2.5 CompactFlash® Socket

CN Label:

CF1 (solder side)

CN Type:

50-pin header (2x25)

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-7

A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the

PICOe-PV-D4251/N4551/D5251.

Figure 3-7: CF Card Socket Location

Pin Description

Pin Description

1 GROUND 26

VCC-IN

CHECK1
