3.2.11 LVDS LCD Connector
CN Label: LVDS1
CN Type: 20-pin crimp (2x10)
CN Location: See
789H
Figure 3-13
CN Pinouts: See 790HTable 3-13
The 20-pin LVDS LCD connector can be connected to a single channel, 18-bit LVDS
panel.

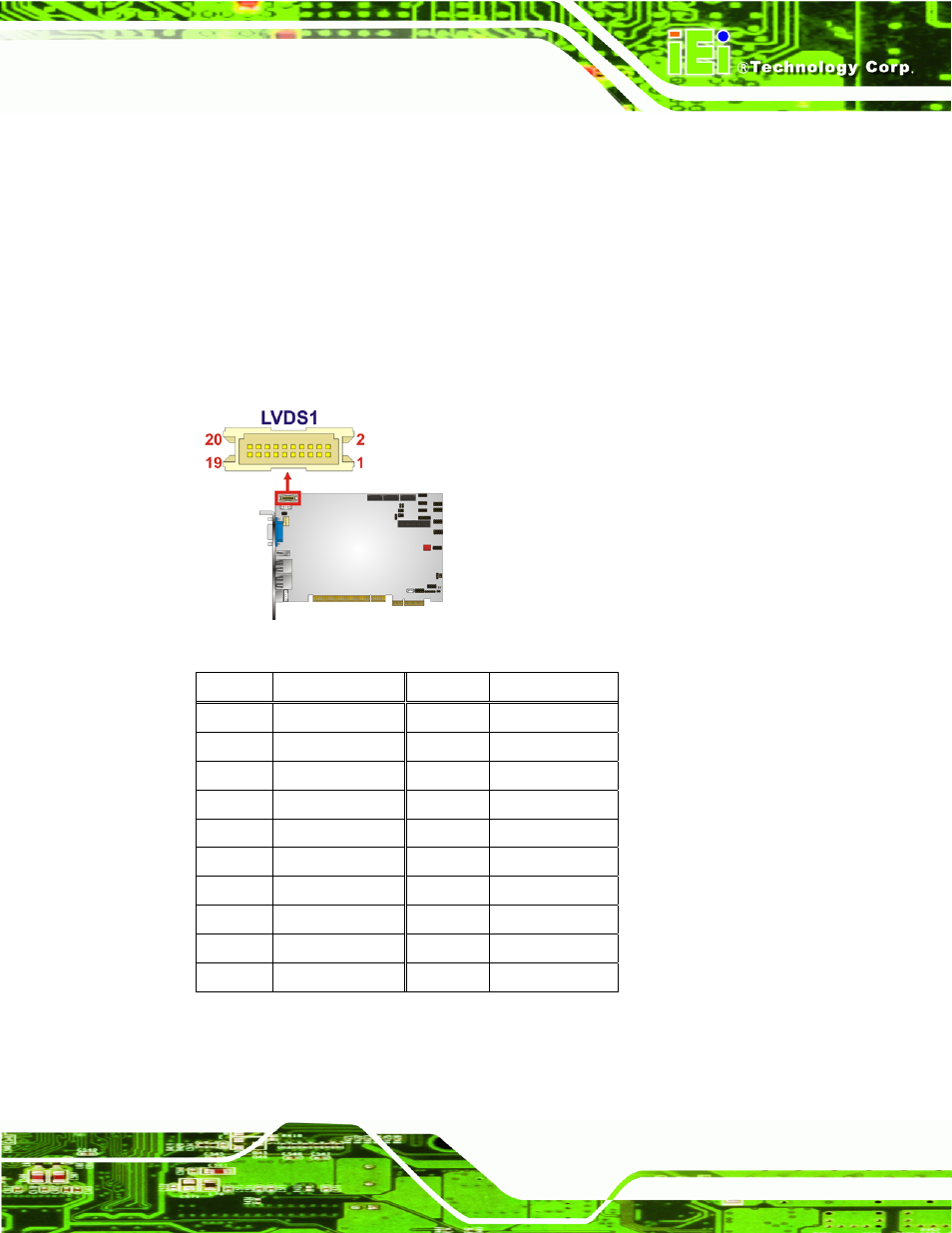

Figure 3-13: LVDS LCD Connector Pinout Location
Pin Description Pin Description
1 GND 2 GND
3 LVDSA_DATA0 4 LVDSA_DATA#0
5 LVDSA_DATA1 6 LVDSA_DATA#1
7 LVDSA_DATA2 8 LVDSA_DATA#2
9 LVDSA_CLK 10 LVDSA_CLK#
11 NC 12 NC
13 GND 14 GND
15 L_DDC_DATA 16 L_DDC_CLK
17 VCC_LCD 18 VCC_LCD
19 VCC_LCD 20 VCC_LCD
Table 3-13: TFT LCD LVDS Port Connector Pinouts
