PICOe-PV-D4251/N4551/D5251 User Manual
Page 24
Pin Description
1 VCC
2 NC
3 IR-RX
4 GND
5 IR-TX
Table 3-11: Infrared Connector Pinouts
3.2.10 Keyboard/Mouse Connector
CN Label: KB/MS1
CN Type: 6-pin header (1x6)
CN Location: See Figure 3-12
CN Pinouts: See Table 3-12
The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2
Y-cable to add keyboard and mouse functionality to the system.

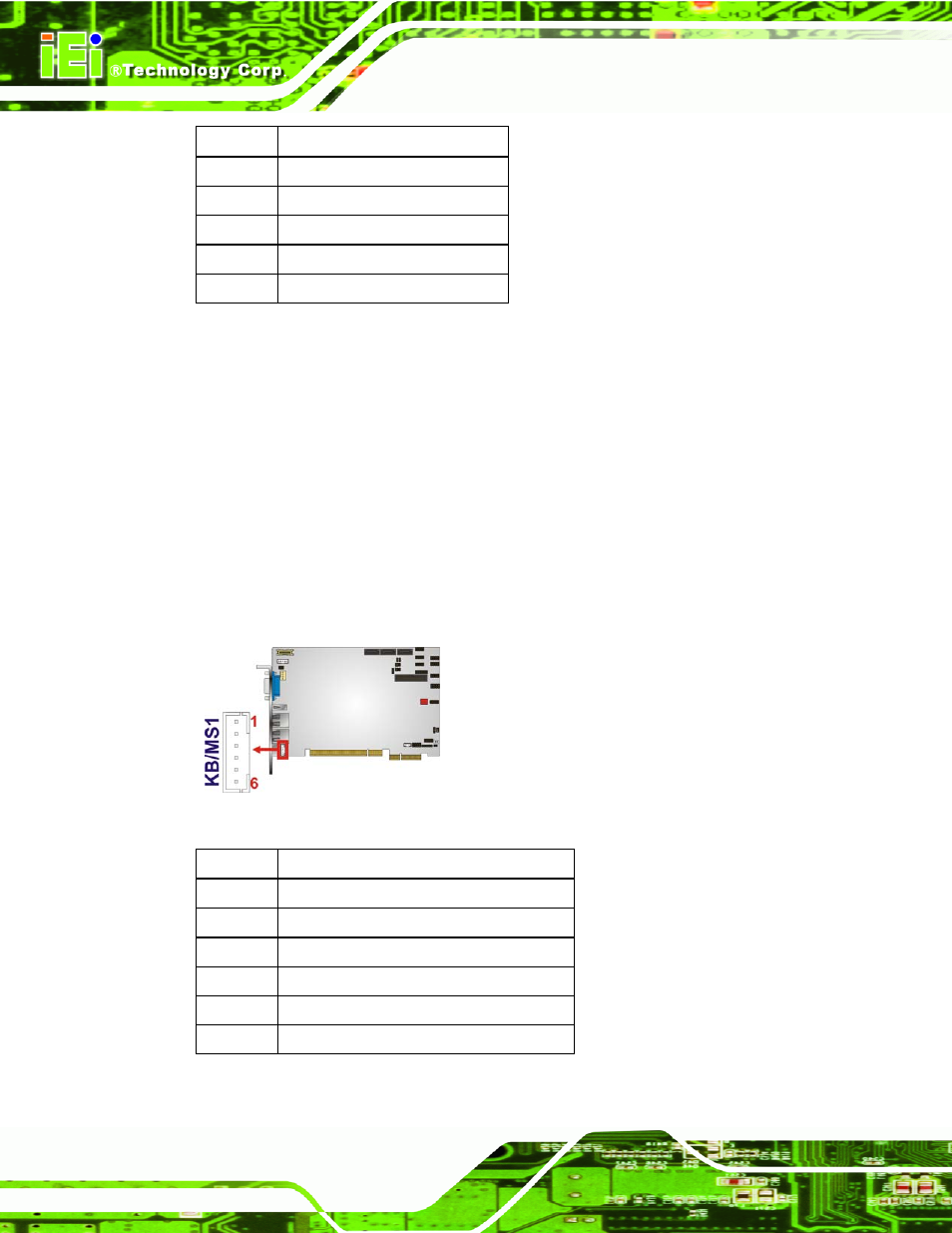

Figure 3-12: Keyboard/Mouse Connector Location
Pin Description
1 VCC5_KBMS
2 MS DATA
3 MS CLK
4 KB DATA
5 KB CLK
6 GROUND
Table 3-12: Keyboard/Mouse Connector Pinouts
