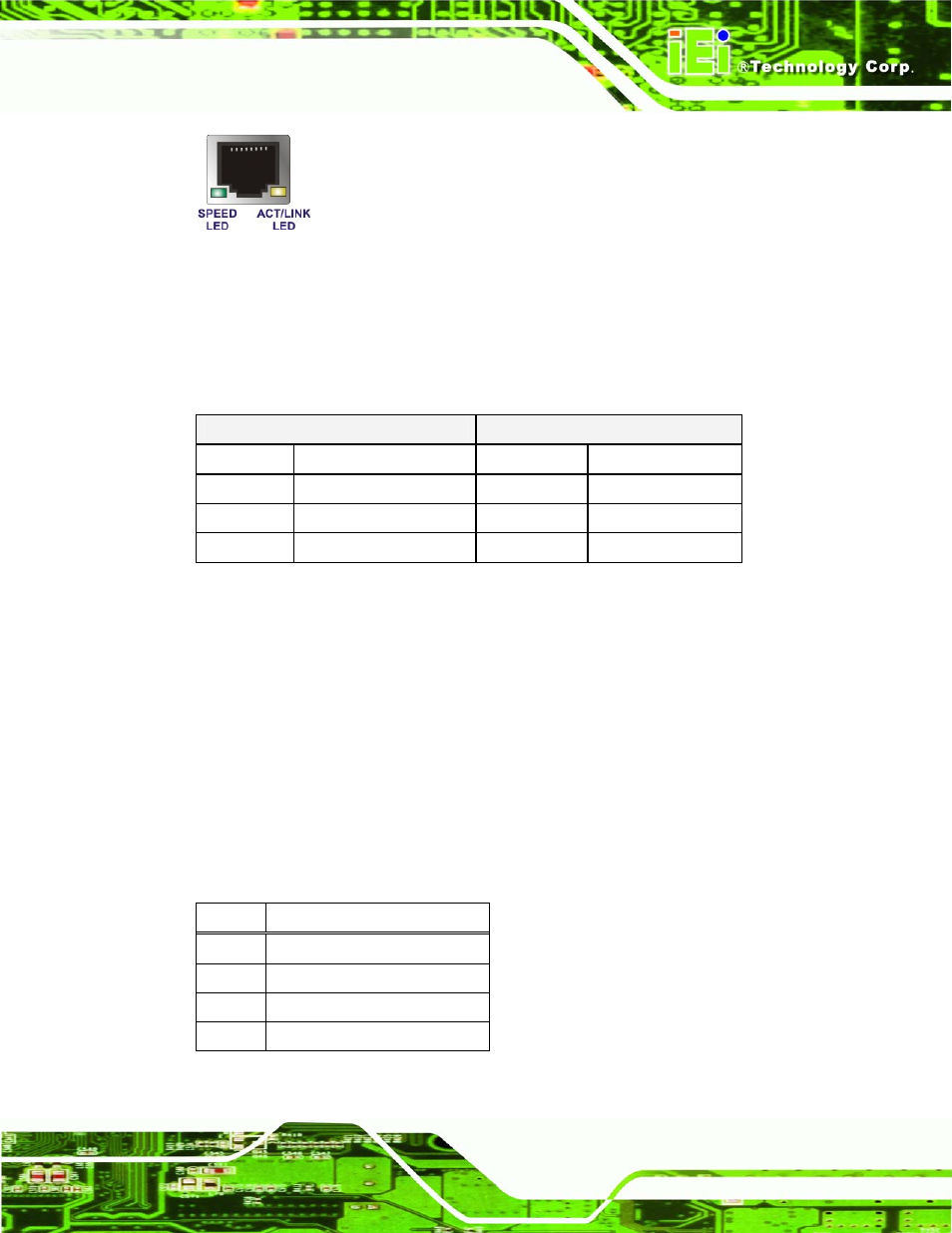

Figure 4-26: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
Table 4-26.
SPEED LED ACT/LINK LED
STATUS DESCRIPTION STATUS DESCRIPTION
OFF 10Mbps connection OFF No link
ORANGE 100Mbps connection YELLOW Linked
GREEN 1Gbps connection BLINKING Data Activity
Table 4-26: RJ-45 Ethernet Connector LEDs
4.3.3 USB Connector
CN Label: USB_C4 and USB_C5
CN Type: USB port
CN Location: See Figure 4-24
CN Pinouts: See Table 4-27
USB devices can be connected directly to the USB connectors on the rear panel.
PIN NO. DESCRIPTION
1 VCC
2 DATA-
3 DATA+
4 GND
Table 4-27: External USB Connector Pinouts
