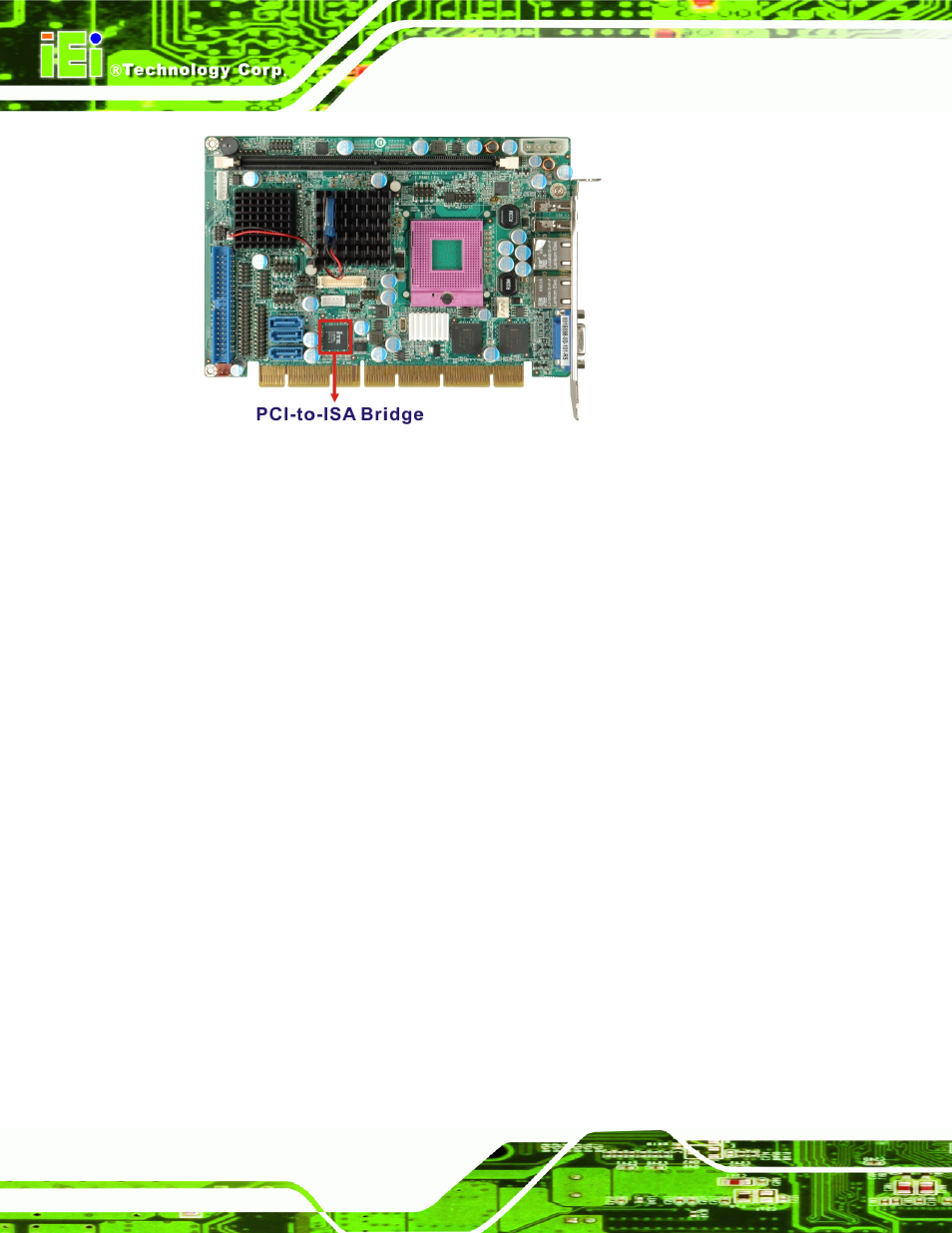

Figure 2-9: PCI-to-ISA Bridge
The ITE IT8888G has a PCI specification v2.1 compliant 32-bit PCI bus interface and
supports both PCI Bus master and slave. The PCI interface supports both programmable
positive and full subtractive decoding schemes. Some of the features of the IT8888G PCI
to ISA bridge are listed below.
PCI Interface
Programmable PCI Address Decoders
PC/PCI DMA Controller
Distributed DMA Controller
ISA Interface
SM Bus
1 analog line-level mono output: MONO_OUT
Power-on Serial Bus Configuration
Serial IRQ
Versatile power-on strapping options
Supports NOGO function
Single 33 MHz Clock Input
+3.3V PCI I/F with +5V tolerant I/O buffers
+5V ISA I/F and core Power Supply
