ZOLL AED PLUS Administrator’s Guide
To remove the battery cover, insert a small tool (e.g., flat blade screw driver) into the two slots on
the rear of the unit to depress the latches, then insert the tool into the groove on the bottom to lift
the cover (see Figure 7).

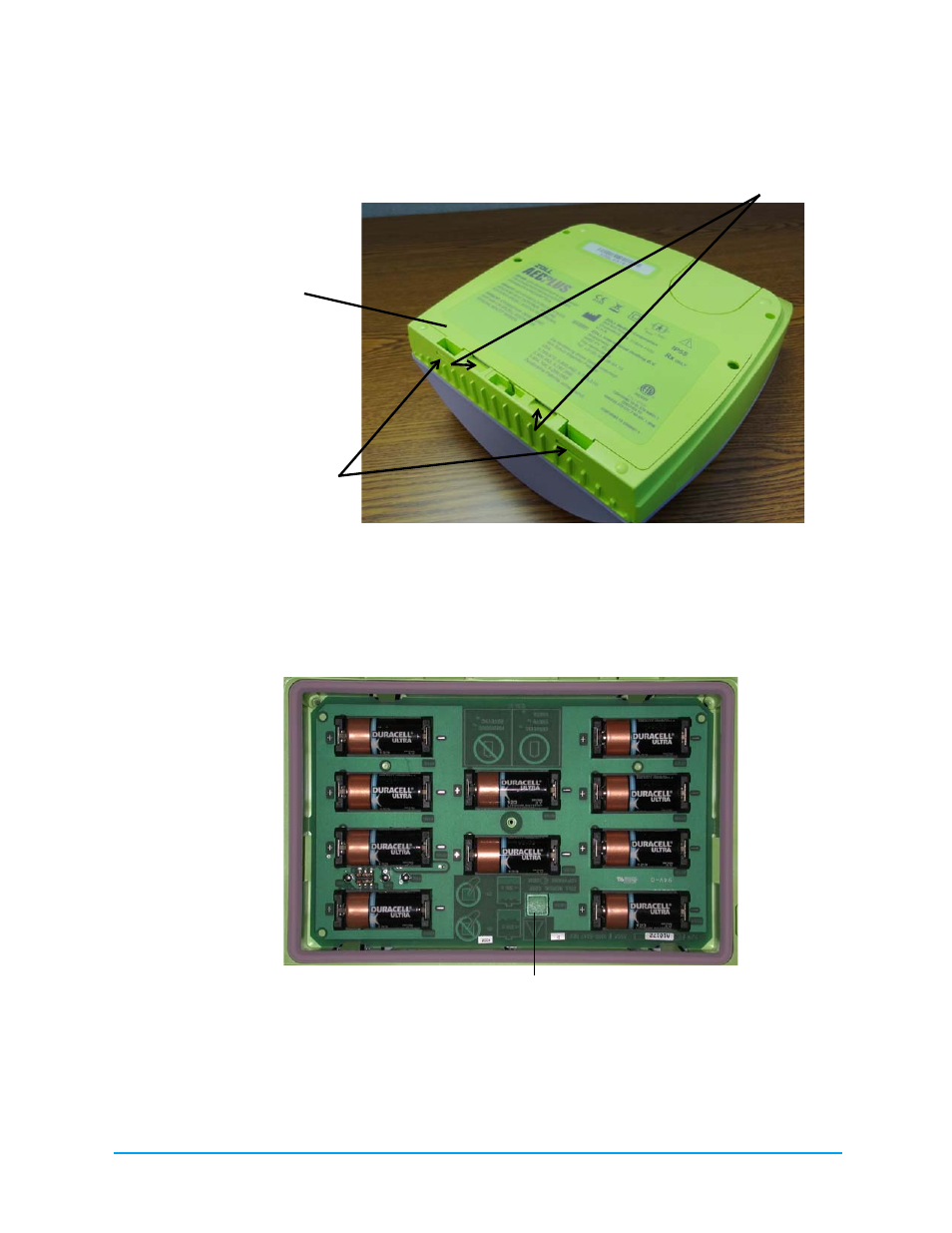

Figure 7: Removing the Battery Compartment Door
2.
Remove all batteries at once and dispose of batteries properly. Place new batteries into the battery
bank, observing battery polarity markings and making sure that all batteries are securely seated and
properly oriented. After placing the first 5 to 9 batteries in the battery well, the
INSTALL BATTERIES audio prompt reminds you to install the remaining batteries in the battery
compartment.
Figure 8: Battery Compartment
1) Depress latch
here
2) Lift cover here
Battery
Compartment
Door
Battery Reset Button
