ZOLL AED PLUS Administrator’s Guide 9
Using the LCD Display
The AED Plus is equipped with a 1.3 x 2.6 inch LCD screen (see Figure 3) that displays the following
information:

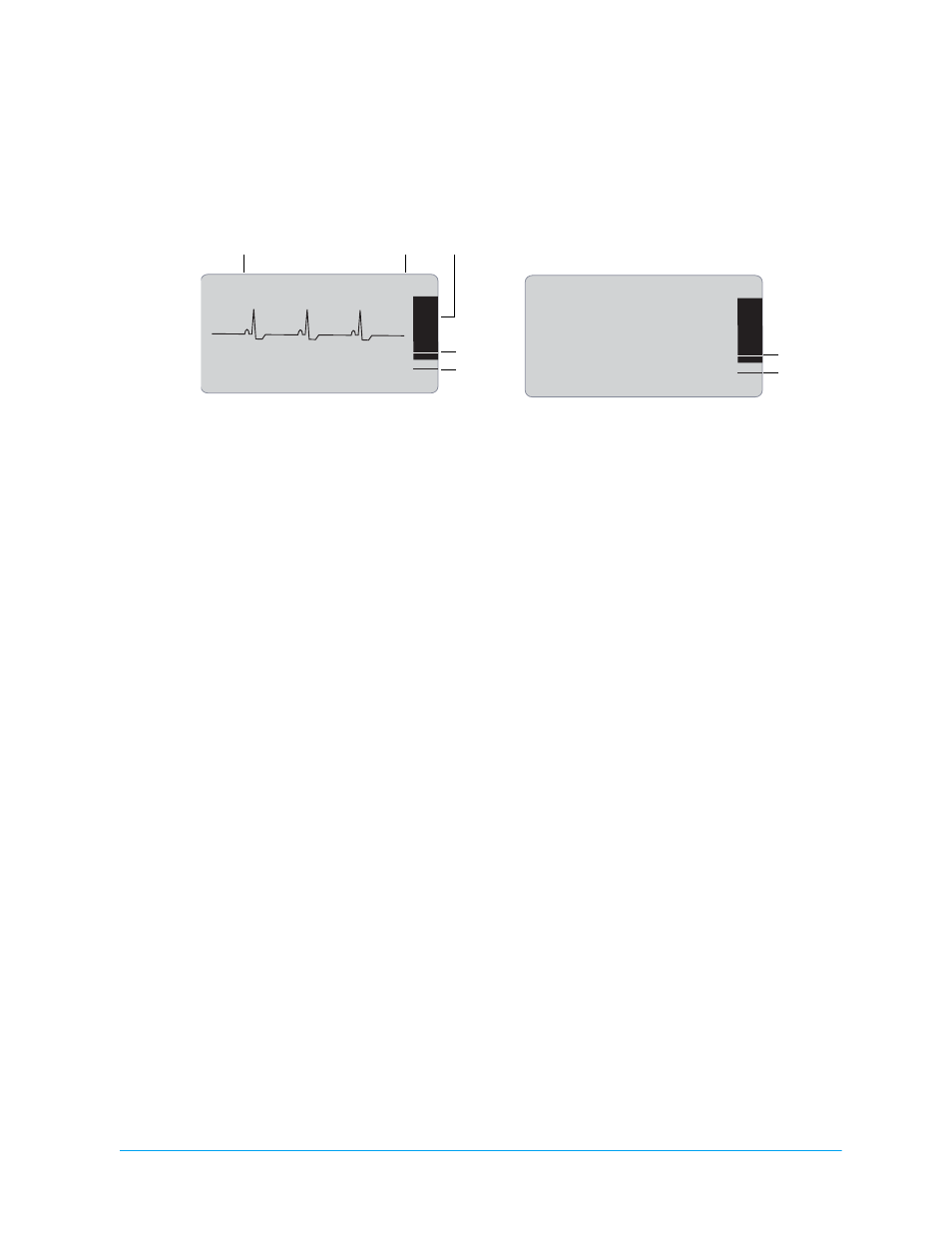

Figure 3: LCD Displays
NOTE Some special AED Plus models do not have an LCD.
Shock Count (Upper left corner of screen): Indicates the total number of defibrillation shocks
delivered by the AED Plus since it was last powered on. Shock count is saved through brief power off
periods (< 5 seconds). When the AED Plus is turned off for more than 5 seconds, the shock count is
reset to 0.
Elapsed Time (Upper right corner of screen): Indicates the total time in minutes and seconds that has
elapsed since the AED Plus was last powered on. Elapsed time continues to be counted through brief
power off periods (< 5 seconds). When the AED Plus is turned off for more than 5 seconds, elapsed
time is reset to 00:00. When elapsed time exceeds 99 minutes and 59 seconds, the timer wraps around
to 00:00 and continues counting.
CPR Depth of Compression Indicator (Right side of screen): A bar graph is displayed that shows
the depth of chest compressions measured during the delivery of CPR. Indicator lines are displayed in
the bar graph area at 2 and 2.4 inches of compression depth to provide reference points for rescuers
performing CPR.
Visual User Prompts (Lower 1/3 of screen): Whenever the AED Plus issues a voice prompt, the text
of the voice prompt is simultaneously displayed on the LCD display.
ECG Waveform (Center portion of screen): Although AED Plus units do not display ECG waveforms
in their factory default configuration, the device can be specifically set up to continuously display
ECG signals as they are acquired.
05:25 SHOCKS: 05
CHECK
RESPONSIVENESS
05:25 SHOCKS: 05
CHECK
RESPONSIVENESS
With ECG Without ECG
2” (5 cm)
depth
2.4” (6 cm)
depth
Elapsed Time
CPR Depth of
Compression Indicator
2” (5 cm)
depth
2.4” (6 cm)
depth
Shock Count
