4 ZOLL AED PLUS Administrator’s Guide

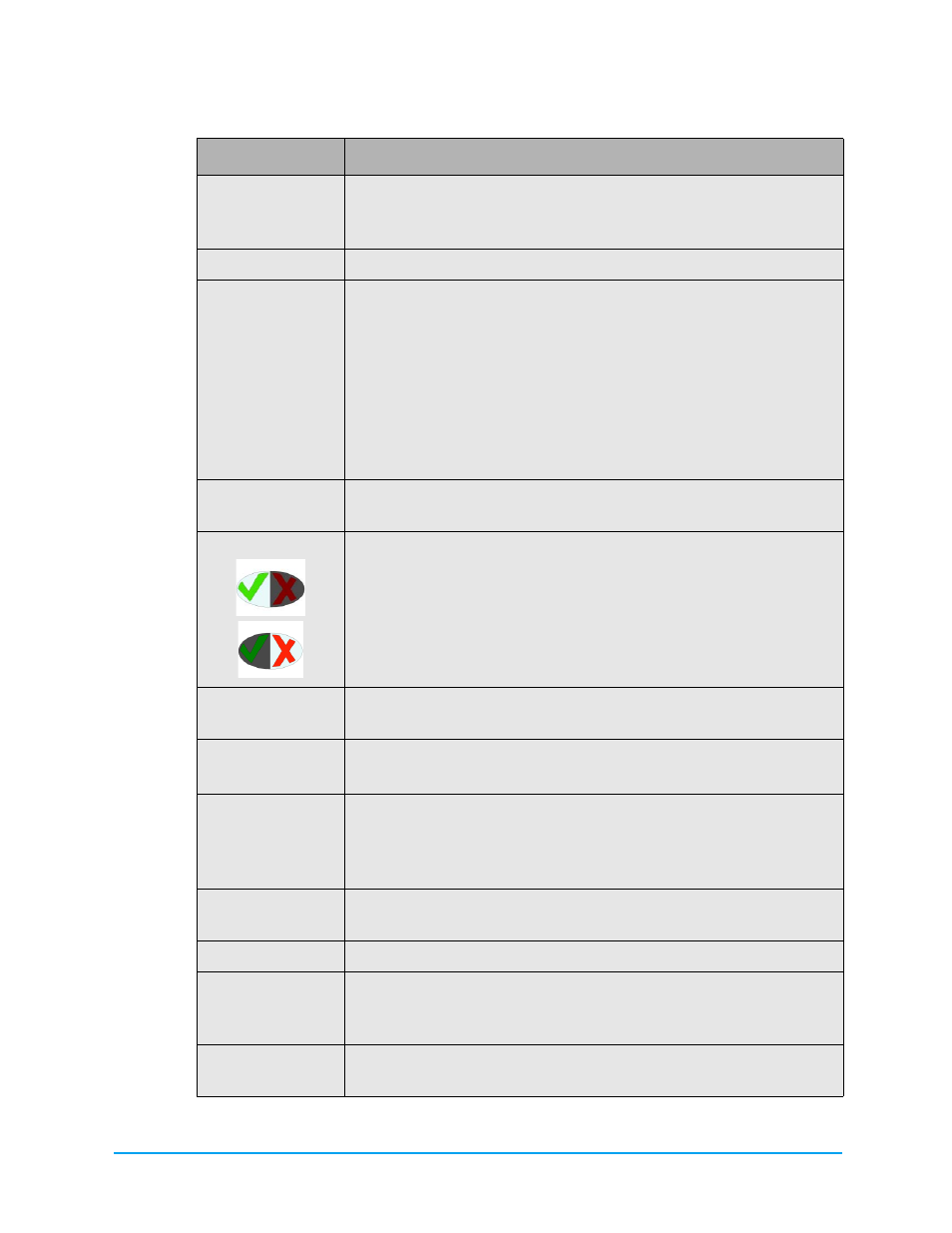

Table 1: Control Function
Control/Indicator Description
ON/OFF Button Turns power ON or OFF.
When held depressed for > 5 seconds initiates self test or data
communications.
Indicator lights Illuminates to indicate which step rescuer must take to treat a victim.
Shock Button Illuminates when the AED Plus is charged and ready to deliver a shock to the
victim.
When pressed, causes the charged and ready AED Plus to discharge its
energy into the victim.
When the AED Plus is not charged the lighted button is extinguished.
Pressing this button initiates a voice prompt that indicates the number of
defibrillator shocks delivered since the unit was powered on.
Pictograms Icons that explain the series of steps needed for resuscitation and
defibrillation.
Status Indicator
Illuminated check mark indicates the unit passed its last self test and is ready
for use.
Illuminated “X” indicates unit has failed its self test and is not ready for use
LCD Display Displays elapsed time, shock count, user prompts, CPR compression depths
and ECG waveforms.
IrDA Port Provides a communications link between the defibrillator and a personal
computer or another IrDA

equipped device.
PASS Cover
(optional)
Some AED Plus models include a cover that may be used as a shoulder
support to aid victim airway management. The PASS can be ordered
separately for other AED Plus models (see “Ordering Accessories” on
page 27).
Battery
Compartment
Holds 10 123A lithium manganese dioxide batteries used to power the unit.
Electrode Connector Connector for attaching electrodes to the AED Plus.
Speaker Provides audio prompts and metronome beeps that direct rescuers on what to
do during a rescue; also provides voice prompts to indicate if service is
required.
Microphone
(optional)
When voice recording option is installed, this microphone picks up and
records ambient sounds, including rescuer’s voice.
