ZOLL AED PLUS Administrator’s Guide 5
Using the AED Plus Graphical User Interface
The AED Plus graphical user interface (see Figure 2) is visible on the top of the unit when the cover
is removed. The pictograms are reminders of the steps to follow when performing a rescue and
reinforce instructions provided through voice prompts and optional display messages.
Each pictogram on the device is associated with an indicator light (LED) and voice prompts. This
combination draws attention to the graphics in a sequence defined by current protocols for use of an
Automated External Defibrillator (AED) by the AHA and ERC.

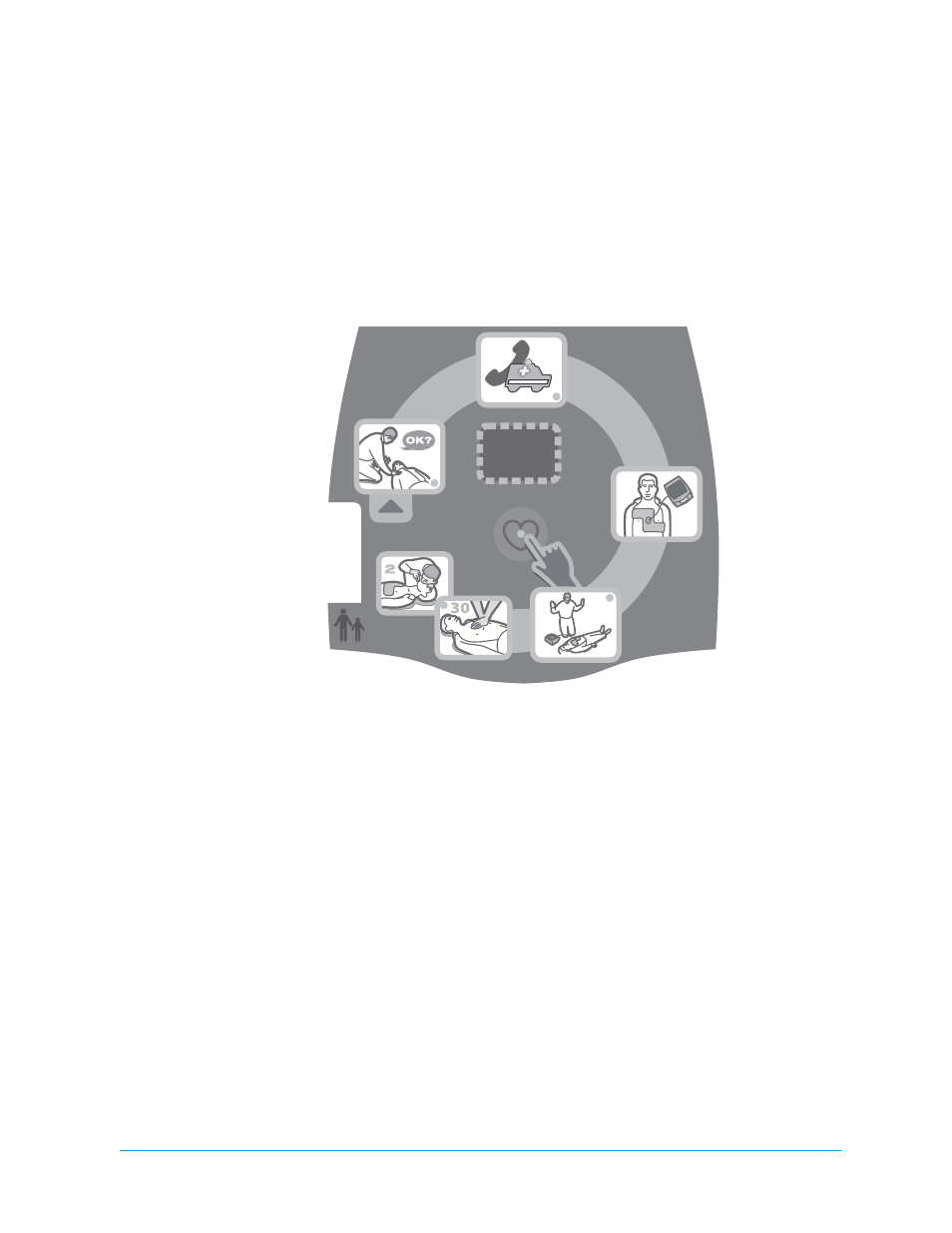

Figure 2: Graphical User Interface
The AED Plus unit contains an LCD display (some special models do not have an LCD) that displays
elapsed time, number of shocks delivered, text messages corresponding to the voice prompts, and
depth of CPR compressions. The LCD can also be configured to display the acquired ECG signals.
When the AED Plus is turned on, the unit automatically initiates the sequence of voice prompts and
graphic illuminations for a rescue event. The sequence continues until the AED Plus is turned off or
the electrodes are disconnected from the victim for an extended period of time. As soon as electrodes
are attached to the victim and impedance of the connection is verified, the unit stops cycling through
the above-mentioned voice and graphic illumination sequence and automatically begins analysis of
the ECG rhythm.
Following the results of this ECG analysis, voice prompts tell the rescuer whether a shockable or
non-shockable rhythm has been detected. If a shockable ECG rhythm is present, the graphics
illuminate and voice prompts guide the rescuer through the defibrillation sequence. When no shock is
advised, the AED Plus issues the audio prompts, NO SHOCK ADVISED and START CPR, and
illuminates the CPR-related graphics. A period of 2 minutes (depending upon device configuration)
is then allowed for rescuer CPR. Following this “CPR period”, the AED Plus automatically re-initiates
a new ECG rhythm analysis.
