Specifications
Mounting: Plug-in, mates directly with
connector on photoelectric
amplifier board.
Timing Controls: Potentiometers, adjustable
Weight: 1 oz.
Ambient Temperature: 0 - 125ºF. (-18 –– +52°C)
Light or Dark Operation: Selectable
Timing Ranges: MCS-836: 0.4 to 15 seconds
MCS-836-1: 1 to 30 seconds
MCS-836-2: 0.02 to 0.5 seconds
Minimum Input Pulse: 20 milliseconds for delay
pull, delay drop, and dual
delay. 50 microseconds for
one-shot and delayed
one-shot
Minimum Reset Time: 1 millisecond for all
functions
Electrical: Pin No. Function
+ +24 VDC Input
- Return (ground)
A Timer Input
B Timer Output
Part Numbers: MCS-836: 7400-448-024
MCS-836-1: 7400-448-029
MCS-836-2: 7400-448-030
Operations
The timer module is an optional plug-in device
which modifies the basic on-off photoelectric
control operation. These functions are necessary for
special timing applications. Dark-to-Light and Light-
to-Dark transitions may be used to trigger any func-
tion, as selected.
Delay Pull: This function provides a delayed
response for pull-in (energize) of the output device.
The time delay is adjustable from 0.4 to 15 sec-
onds.
2.520 MAX.
P1 P2
1.650
MAX.
.450
.300
POST INSERTION
.200 .015 +-
1
2
3
4
5
6
B A + -
SWI
.156
1.600
1.912
COMPONENT SIDE
.
.
Decrease

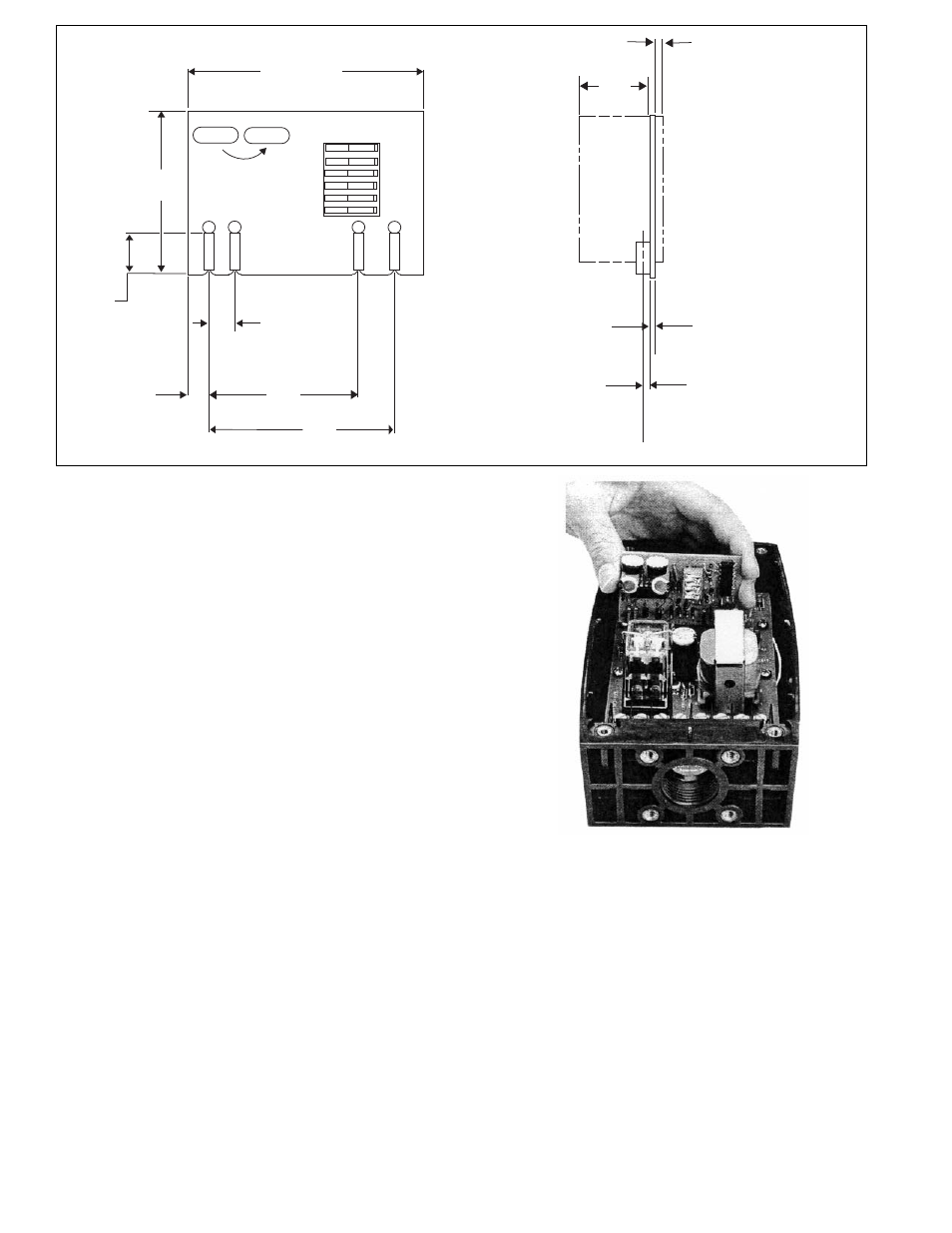

Outline Diagram
.5625
MAX.
.093 MAX
.062 .008
.062 .015
+-
+-
MOUNTING POST
