REV 3 LTCA VERSION 2.xx SOFTWARE MANUAL
65

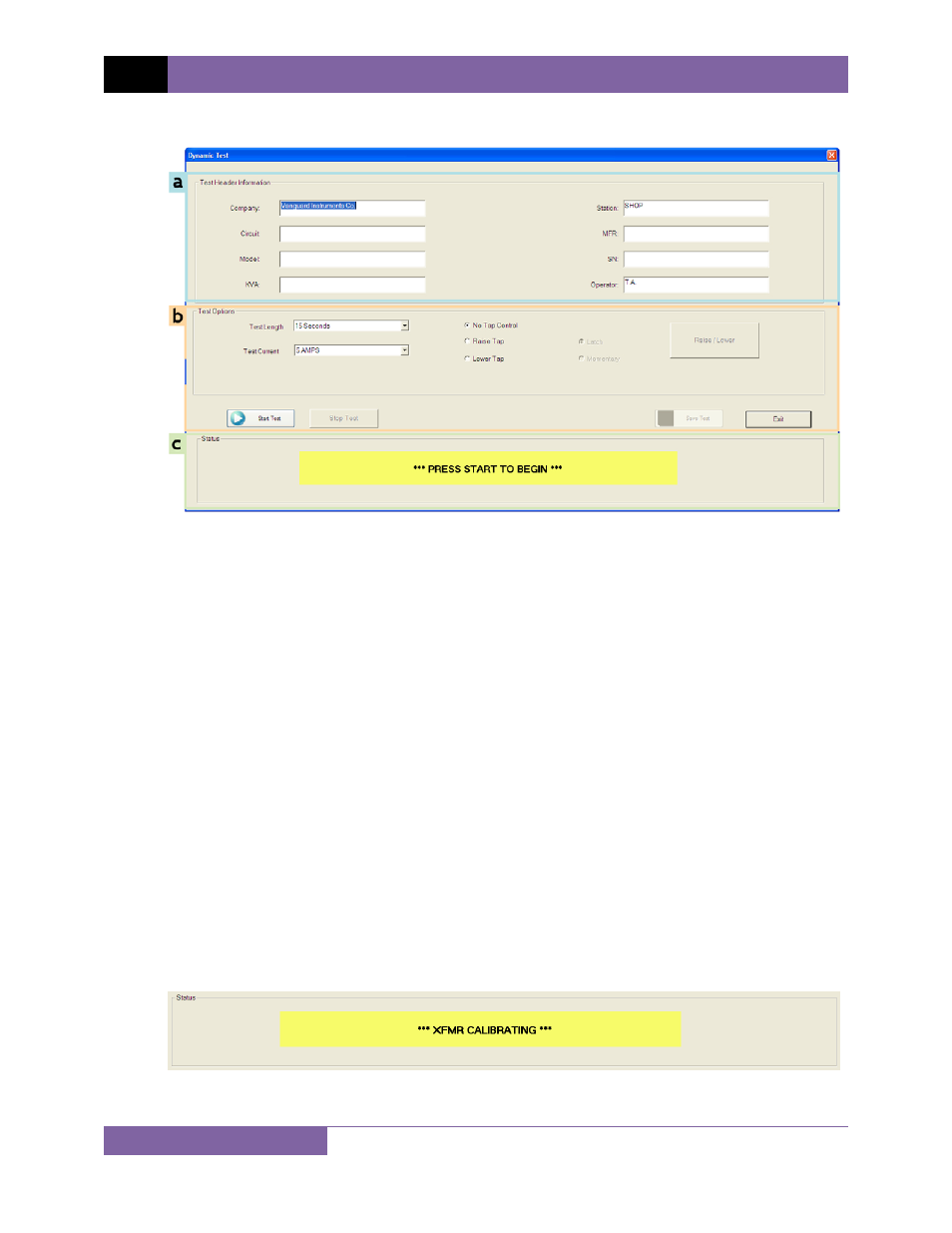

5. The following screen will be displayed:
a. Test Header Information Section
Enter any relevant header information in this section such as the company name,
circuit, station, operator, etc.
b. Test Options Section
Select the test duration from the “Test Length” drop down menu.
Select the test current from the “Test Current” drop down menu.
Select the tap control by clicking on the corresponding radio button (“No Tap
Control”, “Raise Tap”, or “Lower Tap”.
From this section you can also start the test, stop the test, save the test, or exit
the test by clicking on the “Start Test”, “Stop Test”, “Save Test”, and “Exit”
button, respectively.
c. Status Section
Displays the current status of the test being performed.
Click on the “Start Test” button to start running the test.
6. The status section of the testing window will be updated to show the current status of
the test as shown below:
