4.5 Viewing and Working with Static Test Results

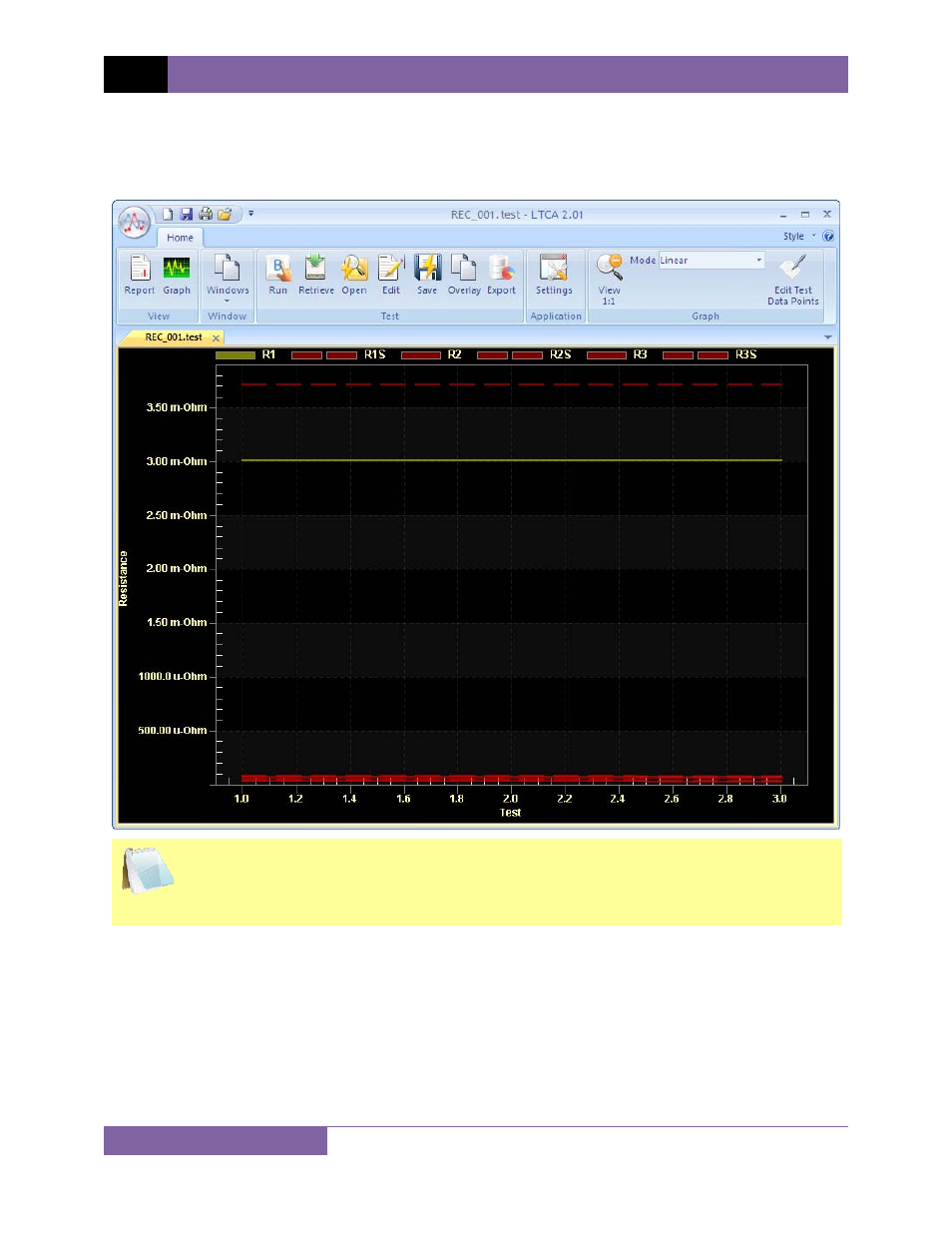

Once a test record from a static test has been retrieved (see sections 4.1 and 4.2 for
instructions), the graph of the data will be displayed as shown below:
NOTE
R1s, R2s, and R3s are the respective equivalent resistance values of R1, R2, and R3 at
the reference temperature. These will be displayed if a reference temperature was
provided during testing.
You can view the test report by clicking on the Report icon. Please see section 4.5.1 for further
information.
You can also view and edit the test record header information (such as the Company name,
Station ID, Circuit ID, Operator name, etc.) as well as the reference temperature and any notes
entered for each test. To edit this information, click on the Edit icon. The following screen will
be displayed:
