LTCA VERSION 2.xx SOFTWARE MANUAL REV 3
10
3.3 Application Setup
Before using the LTCA program, the application setup parameters should be reviewed and
changed as required. To change the setup parameters:
1. Make sure the LTCA software is running on the PC.
2. Click on the Settings icon on the ribbon (alternatively you can select Application Setup

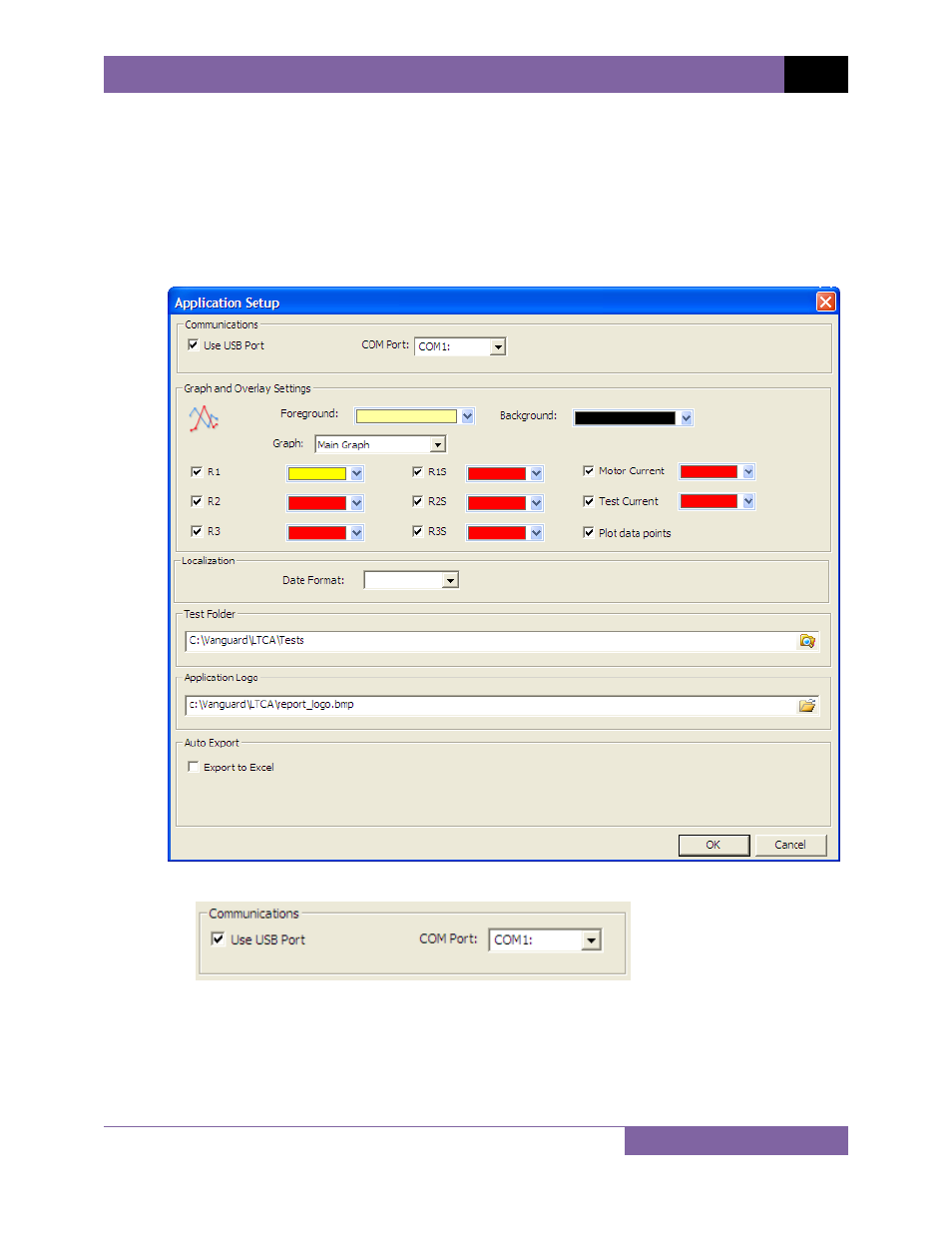

from the File menu). The following window will be displayed:
a. Communications
WRM-10P and WRM-40
Since the WRM-10P and WRM-40 feature only an RS-232C port, the “Use USB Port”
check box should be un-checked. To configure the serial port settings, select the
correct COM: port from the “COM Port:” drop-down list.
