REV 3 VCBA S2 VERSION 4.xx SOFTWARE MANUAL
48
You can click on the file folder icon at the top right of the window to browse to the
directory containing the test records to be merged. Once you have located the test
records, click on the first file name to be merged and then hold down the [CTRL] key and
click on the second file name. Click on the “OK” button.
NOTE
Both test records must be of the same type. For example, you cannot merge
a CLOSE type test record with an OPEN type test record.

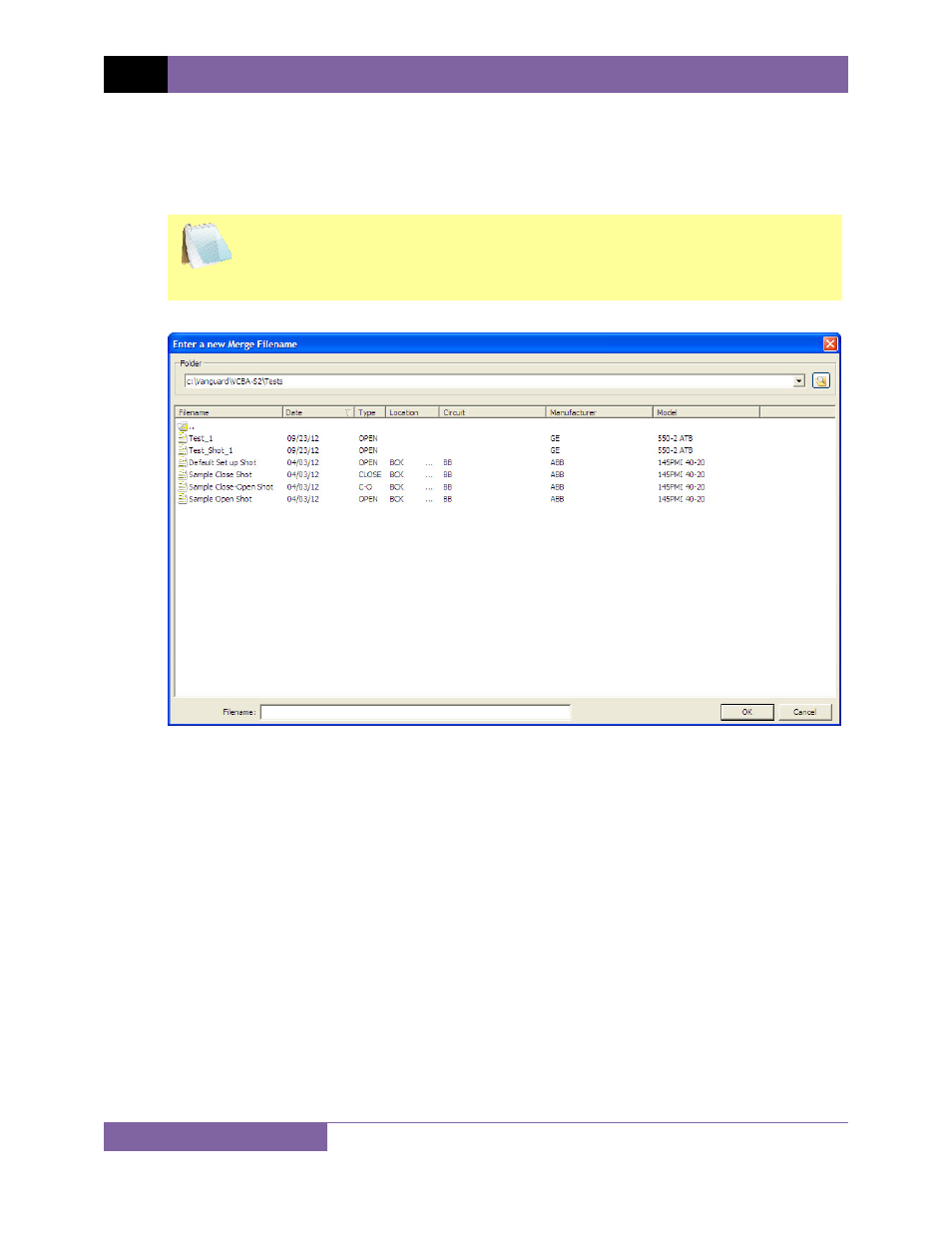

3. The following window will be displayed:
If you do not want to save the merged test shot in the directory shown, click on the
folder icon at the top right of the window and locate the folder on your computer where
you would like to save the merged test shot.
In the “Filename:” input field, type a name for the merged test shot file and click on the
“OK” button.
4. The data from the two source test records will be merged and saved as the new file
name. The merged test shot will be opened and displayed. The two source test records
will not be modified in anyway.
