CT-6500 Operating Instructions
48

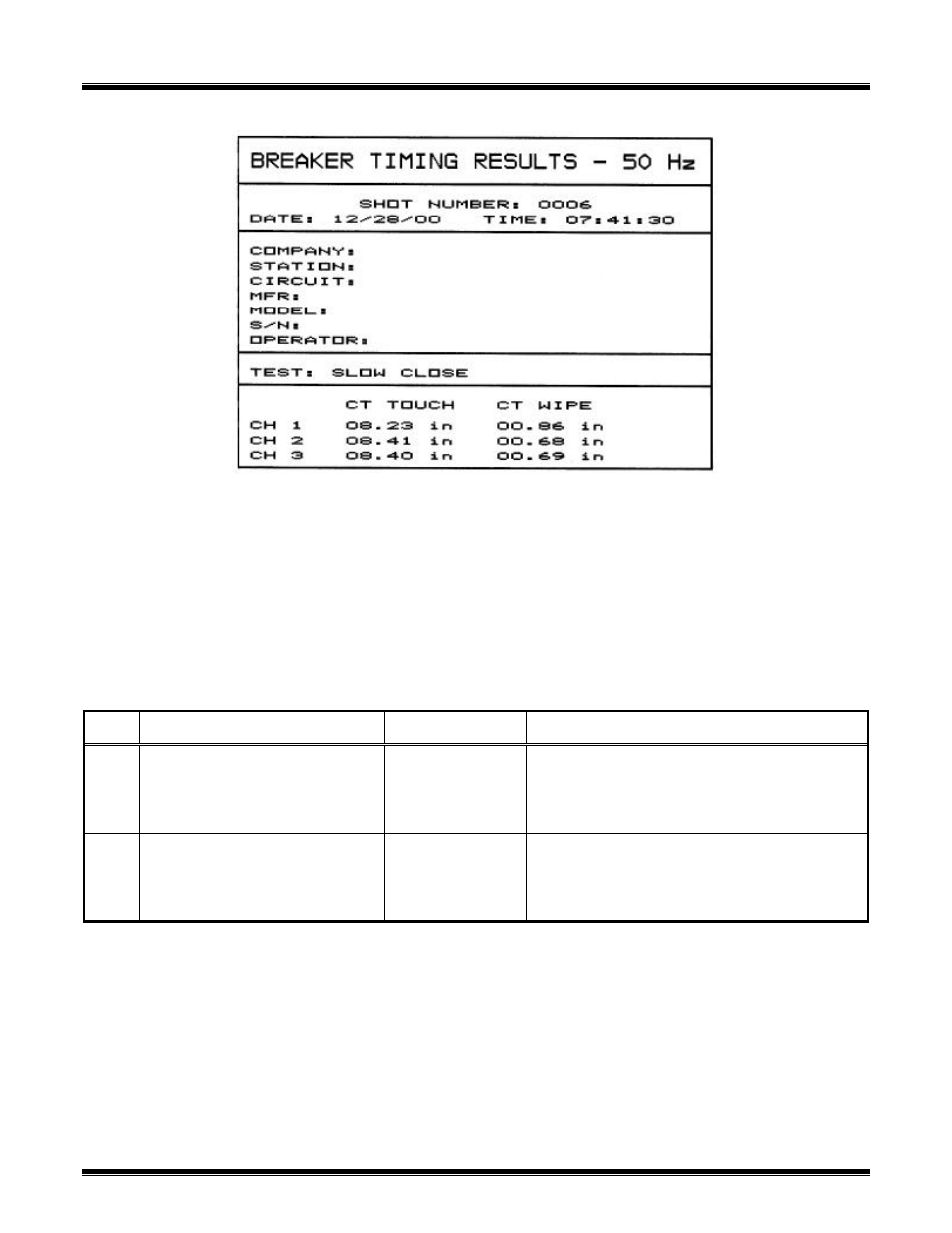

Figure 17.0 Typical Slow-Close Test Report
NOTE
By adding the contact touch and the contact wipe distance, the total is the breaker’ stroke.
9.15 Transducer Self-Test
The operator can check the transducer electronics by connecting the transducer to the CT-
6500 and running a “Test Transducer” diagnostics.
Table 20.0 Performing a Transducer Self Test
STEP OPERATION ACTION DISPLAY
1 SELECT DIAGNOSTIC. PRESS # 4 KEY. 1. SLOW-CLOSE TEST
2. PRINT DATA
3. TEST TRANSDUCER
4. CHECK HOOKUP
2 SELECT TRANSDUCER. PRESS # 3 KEY. TRANSDUCER TEST
1= XXX.XX INCHES
2= XXX.XX INCHES
3= XXX.XX INCHES
NOTES
1. After selecting the transducer test mode, move the transducer slider and observe the
display on the CT-6500 LCD.
2. If the slider is moved 1.00 inch, the CT-6500 LCD should display 1.00 inch.
3. Press the “STOP” key to return back to the main menu.
