AUTO-OHM 100/200 Series 2 Operating Procedures
12
Rev 3, 2009
3.0 CONTROL AND DISPLAY
3.1 Auto-Ohm 100 Series 2 Front Panel
The Auto-Ohm 100 Series 2 controls and displays are shown in the control-panel illustration
below (Figure 6.0). Pointing leader lines reference each item with an index number. Each index
number is cross-referenced to a functional description in Table 3.0, which describes the function
and purpose of each item on the control panel. Although the purpose of these controls and the
display may seem obvious and intuitive, users should become familiar with them before
attempting to use the Auto-Ohm 100 Series 2. First-time users should also review and become
familiar with the Safety Summary on the front page.

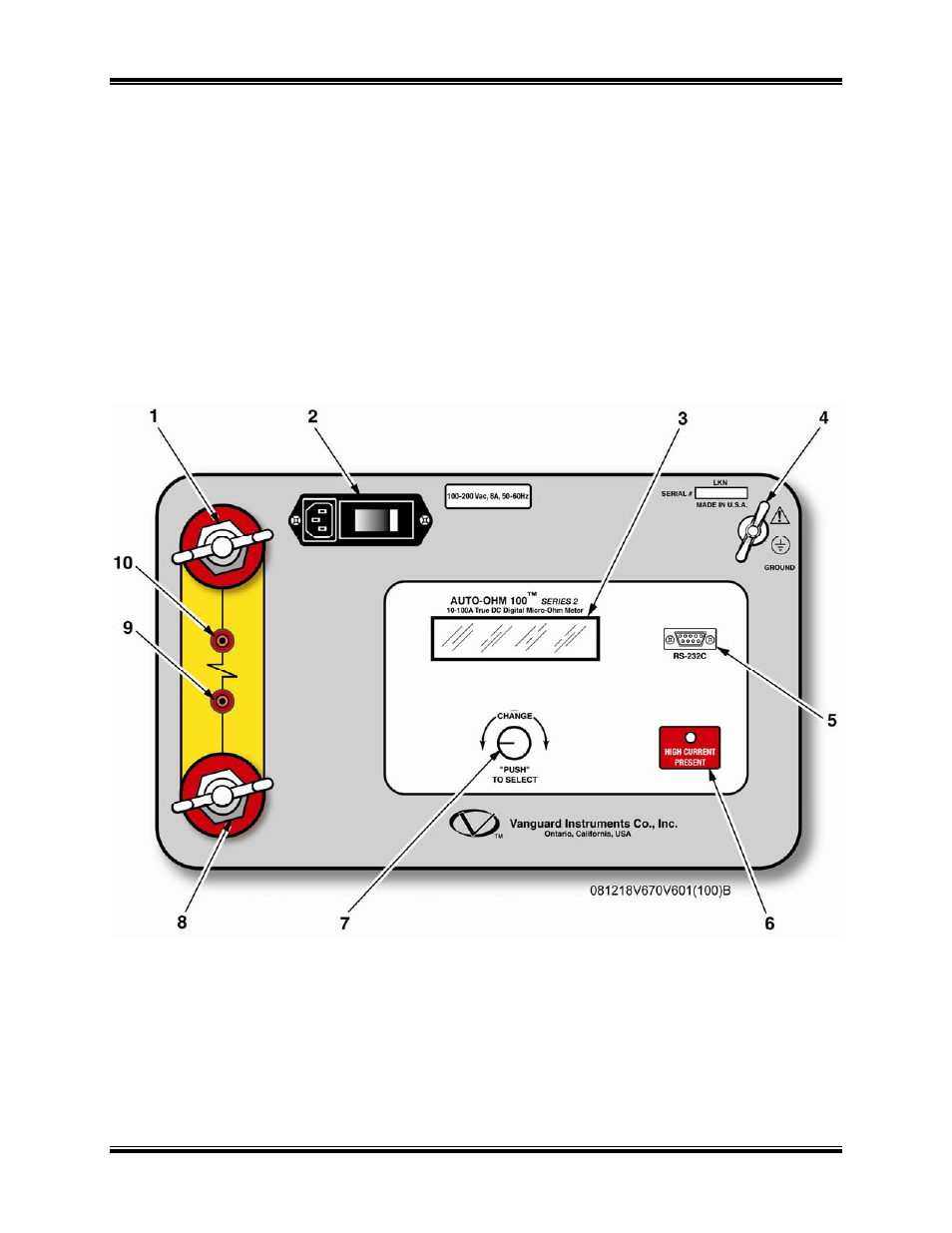

Figure 6.0 Auto-Ohm 100 Series 2 Control-Panel Controls and Display
