3 - 1 IQView../SM Installation Instructions TG200711 Issue 1/E 10/08/06
3

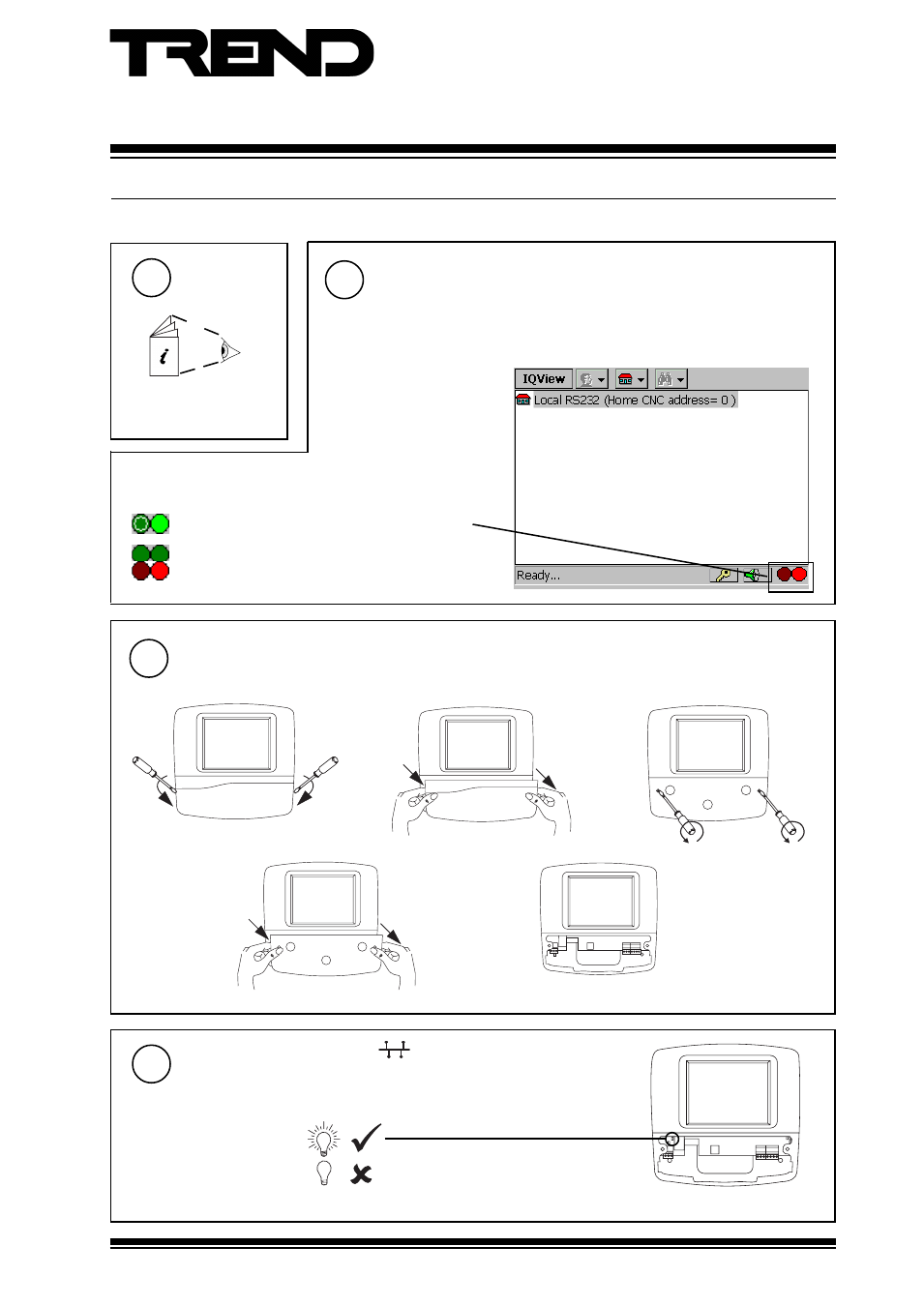

Installation Instructions - Sheet 3
IQView../SM
Surface Mount Touch Screen Display
Check Connection
9
A falure to connect in steps 4, 5, or 6 will produce a dialogue box detailing the reason
for failure.
The connection can be checked at any time by tapping on the
comms icons in the bottom right corner of the display.
(green flicker) Icons have been tapped and the check
is in progress
(green steady) Communications OK
(red steady) Communications fail
Mount Unit
8
IQVIEW../SM
Installation Instructions -
Sheet 2
2
SHEET 3: Installation Instructions
3.1 Installation - Configuration
(continued)
Remove Covers
10
if ‘Connect to CNC’/’Ethernet (vCNC)’, ‘Connect as Device’/’Ethernet Lan’, or ‘Connect as Device’/’Current Loop Lan’
a b c
d e
Check Ethernet OK LED
11
if ‘Connect to CNC’/’Ethernet (vCNC)’ or ‘Connect as Device’/’Ethernet Lan’
Ethernet OK
(green)
Check Ethernet Connection and/or vCNC
