TREND IQView.._SM - Manual (Page 3)

1 - 3 IQView../SM Installation Instructions TG200711 Issue 1/E 10/08/06

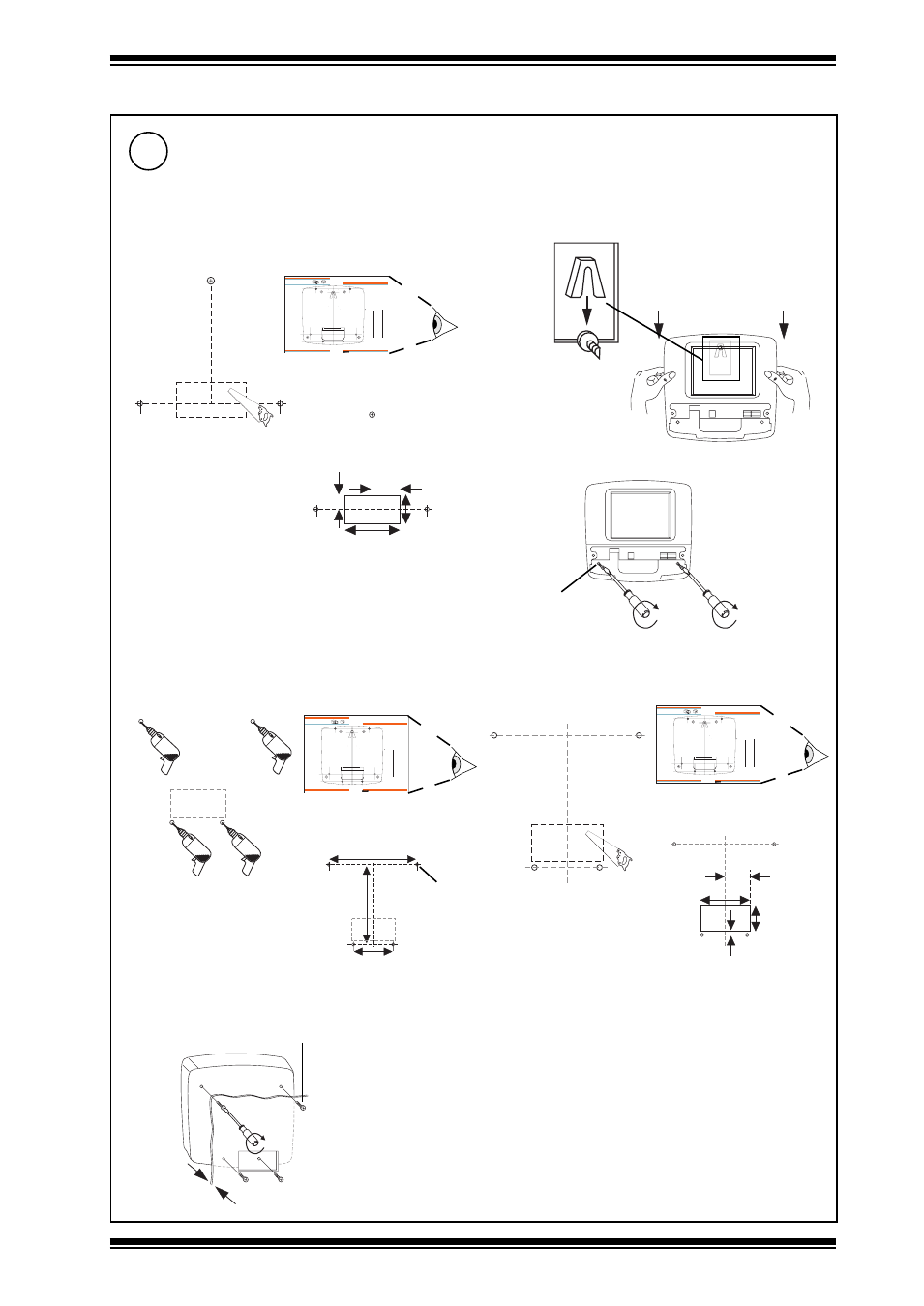

Installation Instructions - Sheet 1 IQView../SM
i
2 x M4, 5, or 6
(No 10 or 12)
or by using 4 screws (e.g. mounting on a panel)
a b
c
4 x M4 x 16 mm
10 mm
Max
126 mm (4.96”)
75 mm
(2.95”)
196 mm (3.78”)
80 mm (3.15”)
40 mm (1.57”)
40 mm (1.57”)
8 mm
(0.31”)
1.3 Installation - Mounting
(continued)
Mount Unit (continued) 5
either by using 3 screws (continued)
g cut rear cable entry hole
if required h
rear view
80 mm
(3.15”)
40 mm
(1.57”)
40 mm
(1.57”)
20 mm
(0.78”)
cut rear cable entry hole
if required
1 - 1 IQVIEW/SURF ACE Installation Instructions - Template TG200722 Issue 1/A 5/11/03
Installation Instructions - T emplate IQVIEW/SURFACE Touch Screen Display Important: Retain these instructions
IQVIEW/SURF ACE Installation Instructions - T emplate
Trend Control Systems Ltd reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes. Trend Control Systems Ltd P.O. Box 34 Horsham Sussex RH12 2YF England Tel:+44 (0)1403 211888 Fax:+44 (0)1403 241608 www.trend-controls.com
NOTE: Print to size.
Check dimensions below
10 cm 4"
A A
A
A
B B
B B
B
three hole fixing
four hole fixing
rear cable entry cutout
IQVIEW../SM template
TG200722
1 - 1 IQVIEW/SURF ACE Installation Instructions - Template TG200722 Issue 1/A 5/11/03
Installation Instructions - T emplate IQVIEW/SURFACE Touch Screen Display Important: Retain these instructions
IQVIEW/SURF ACE Installation Instructions - T emplate
Trend Control Systems Ltd reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes. Trend Control Systems Ltd P.O. Box 34 Horsham Sussex RH12 2YF England Tel:+44 (0)1403 211888 Fax:+44 (0)1403 241608 www.trend-controls.com
NOTE: Print to size.
Check dimensions below
10 cm 4"
A A
A
A
B B
B B
B three hole fixing
four hole fixing
rear cable entry cutout
IQVIEW../SM template
TG200722
1 - 1 IQVIEW/SURF ACE Installation Instructions - Template TG200722 Issue 1/A 5/11/03
Installation Instructions - T emplate IQVIEW/SURFACE Touch Screen Display Important: Retain these instructions
IQVIEW/SURF ACE Installation Instructions - T emplate
Trend Control Systems Ltd reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes. Trend Control Systems Ltd P.O. Box 34 Horsham Sussex RH12 2YF England Tel:+44 (0)1403 211888 Fax:+44 (0)1403 241608 www.trend-controls.com
NOTE: Print to size.
Check dimensions below
10 cm 4"
A A
A
A
B B
B B
B
three hole fixing
four hole fixing
rear cable entry cutout
IQVIEW../SM template
TG200722
4 holes Ø 5 mm
