2 - 4 IQView../SM Installation Instructions TG200711 Issue 1/E 10/08/06
IQView../SM Installation Instructions - Sheet 2

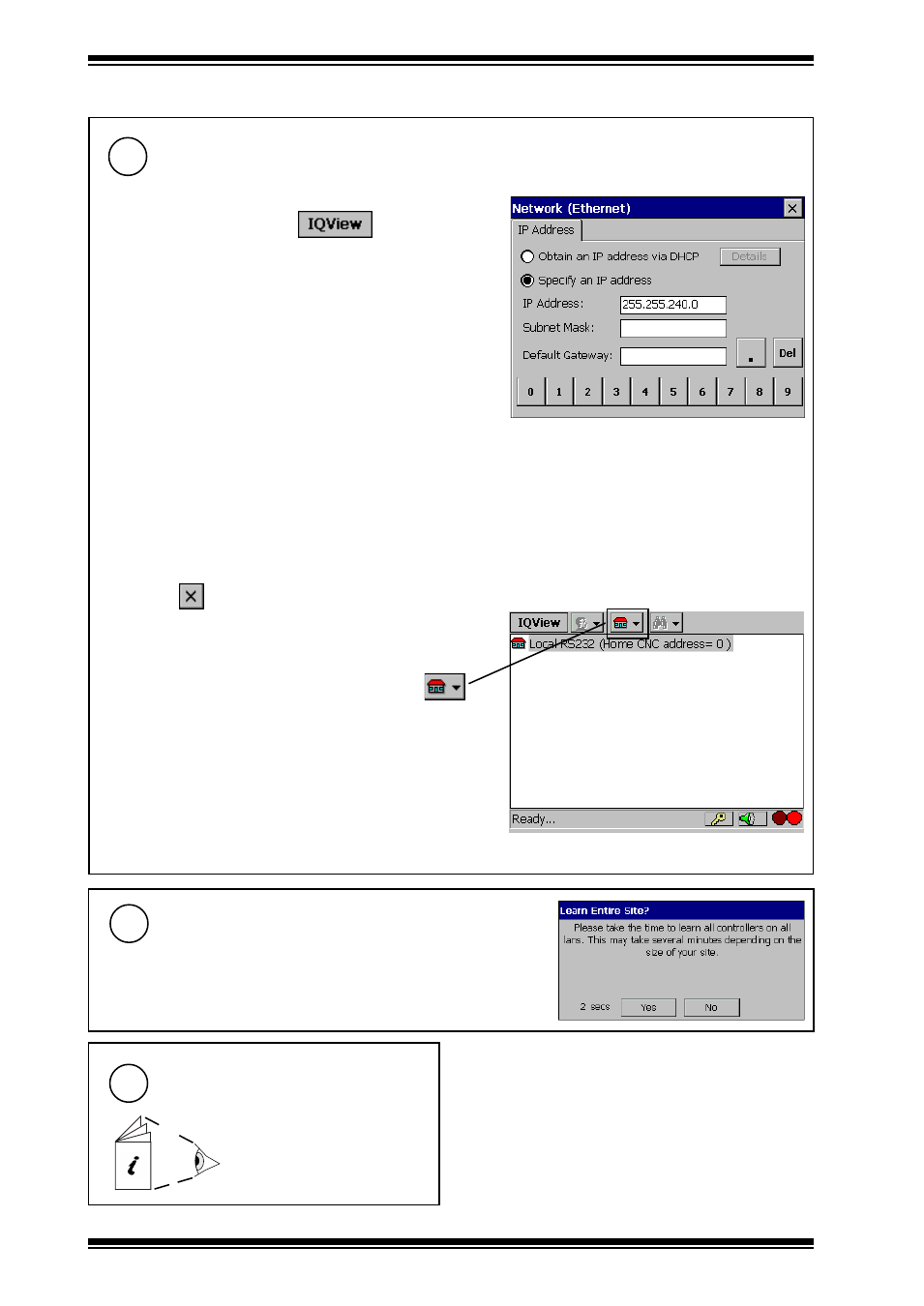

Set up IQView’s Ethernet Settings
5
if either ‘Connect to CNC’/’Ethernet vCNC’, or ‘Connect as Device’/’Ethernet Lan’ set up as above.
IQView (standard version) only
Note that if auto IP addressing is required (as per default) go to (d)
(a) Tap on IQView menu icon in the menu rail on the
top of the screen, and tap on ‘Settings/Network (Ethernet)’.
(b) Change IP address source:
from ‘Obtain IP address via DHCP’ (default)
IP settings being set up automatically
to ‘Specify an IP address’
IP settings being set up manually
(c) Enter IP Address
Subnet Mask
Default Gateway - router IP address (if communications
cross router)
Select servers tab and enter
WINS Server IP Address(es) (if host names being used
across router)
Learn Entire Site
6
(a) The IQView will display the adjacent dialogue box. Recommend select
‘Yes’ to learn of all controllers. The box times out after 5 s and will learn
the all controllers by default. (Selecting ‘No’ means that the controllers
should be learnt later when user selects the learn site/Lan functions).
2.2 Installation - Configuration
(continued)
7 Configure
Note that the time taken for the system to be available for mapping will
depend on the type of Ethernet connection. If connecting to ‘Connect to
CNC’, ‘Ethernet vCNC’ it can be instantaneous (if the rest of the system
is setup). If connecting ‘Connect as Device‘, ‘Ethernet Lan’ it can take
from <30s to <130s depending on its IP address and whether the network
crosses a router.
Note that the these details can be set up using IPTool (v1.1 or greater) rather than tapping them in on the screen
Go to (e)
(d) If ‘Obtain IP address via DHCP’ selected, and there is no DHCP server on the segment, then enter
Default Gateway - router IP address (if communications cross router)
Select servers tab and enter
WINS Server IP Address(es) (if host names being used across router)
Note that the these details can be set up using IPTool (v1.1 or greater) rather than tapping them in on the screen
(e) Tap to close the box, and the unit will reset.
IQVIEW../SM Installation
Instructions - Sheet 3
3
(f) If network is to cross router enter remote devices’ IP addresses
(or host names) and subnet masks using IPTool
(g) Re - initialise the site connection by selecting and
‘ReInit Connection’.
The IQView will now attempt to find its own Lan number (from
an INC). If successful it will try to learn the internetwork, if
unsuccessful it will just display its own Lan icon.
