Bluetooth Adapt Spvr Prt Installation Instructions TG200977 Issue 1/B 25/06/07

5

Installation Instructions

BLUETOOTH ADAPT SPVR PRT

Set up Password

3

a

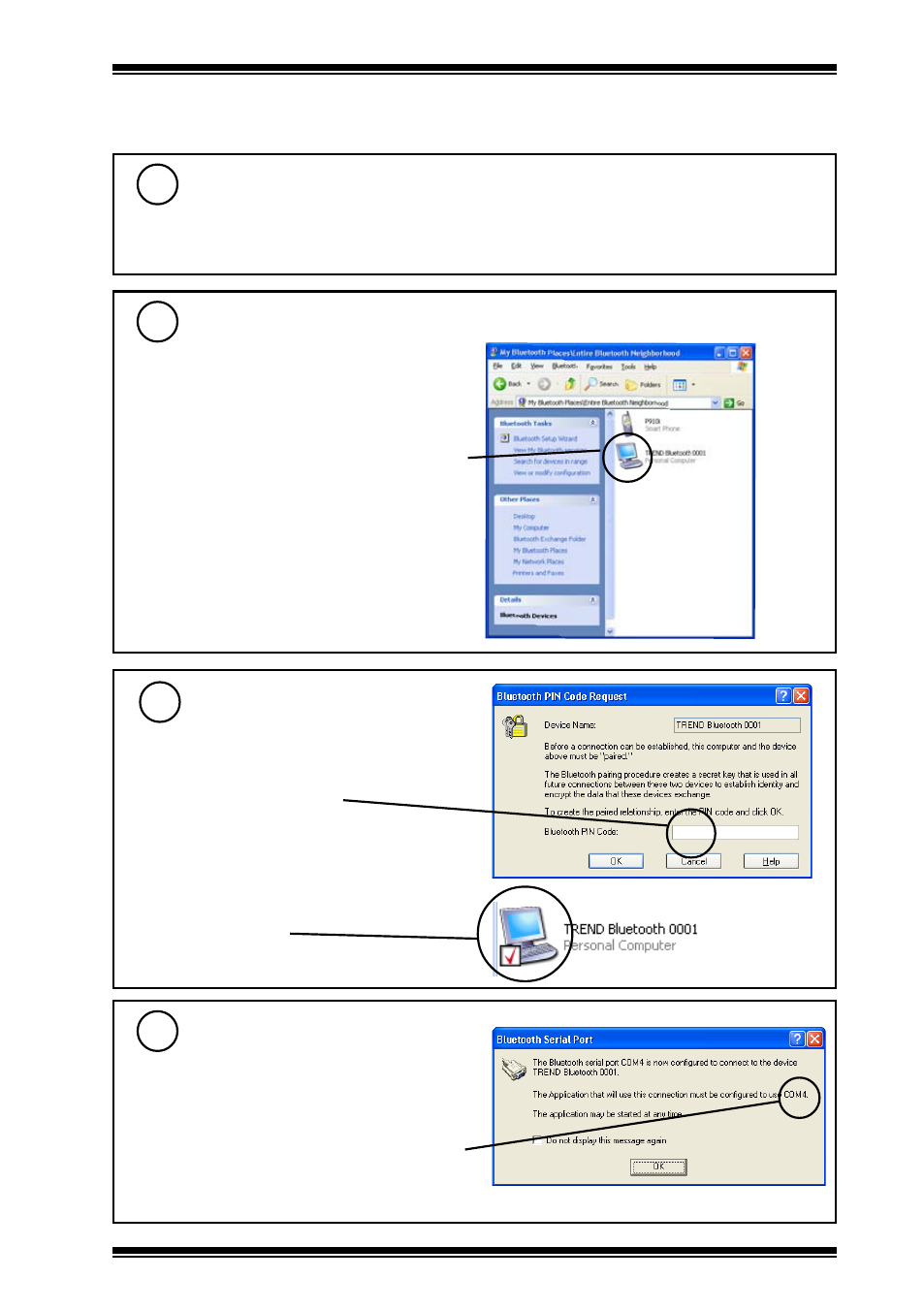

A dialog box entitled ‘Bluetooth PIN Code
Request’ is displayed.

b

Enter 9999 and click ‘OK

c

The browser now
appears with a tick
alongside the
Bluetooth icon

Determine Serial Port Number

4

a

Double-click the Bluetooth icon. The browser
will now display a single icon titled ‘Bluetooth
Serial Port on TREND Bluetooth xxxx’.

b

Double click the icon and a dialog similar to
that shown will appear. Note the port number.

5 Configuring PC Bluetooth Driver

5.1 On Windows XP

Install PC Bluetooth Adaptor

1

a

Install the PC’s Bluetooth adaptor in
accordance with its supplier’s instructions.

Select Trend Bluetooth Supervisor Port Adaptor

2

a

Browse to ‘My Bluetooth Places’ and click
‘View devices in range’ in the left margin
twice (1

st

click takes you to ‘My Bluetooth

Places\Entire Bluetooth Neighborhood’).

b

A desktop computer called ‘TREND
Bluetooth xxxx’ will be shown in the browser.
Where xxxx matches the 4 digit serial number
on the outside of the module.

c

Right-click on ‘TREND Bluetooth xxxx’ icon
and select ‘Pair Device’

b

Ensure that ‘Bluetooth Serial Port’ is included
in the list of services that the PC will
provide.
