XCITE/IO Standard I/O Module Installation Instructions TG200627 Issue 2/E 06/12/07 11
Installation Instructions XCITE/IO
4 Installation - Configuration
(continued)

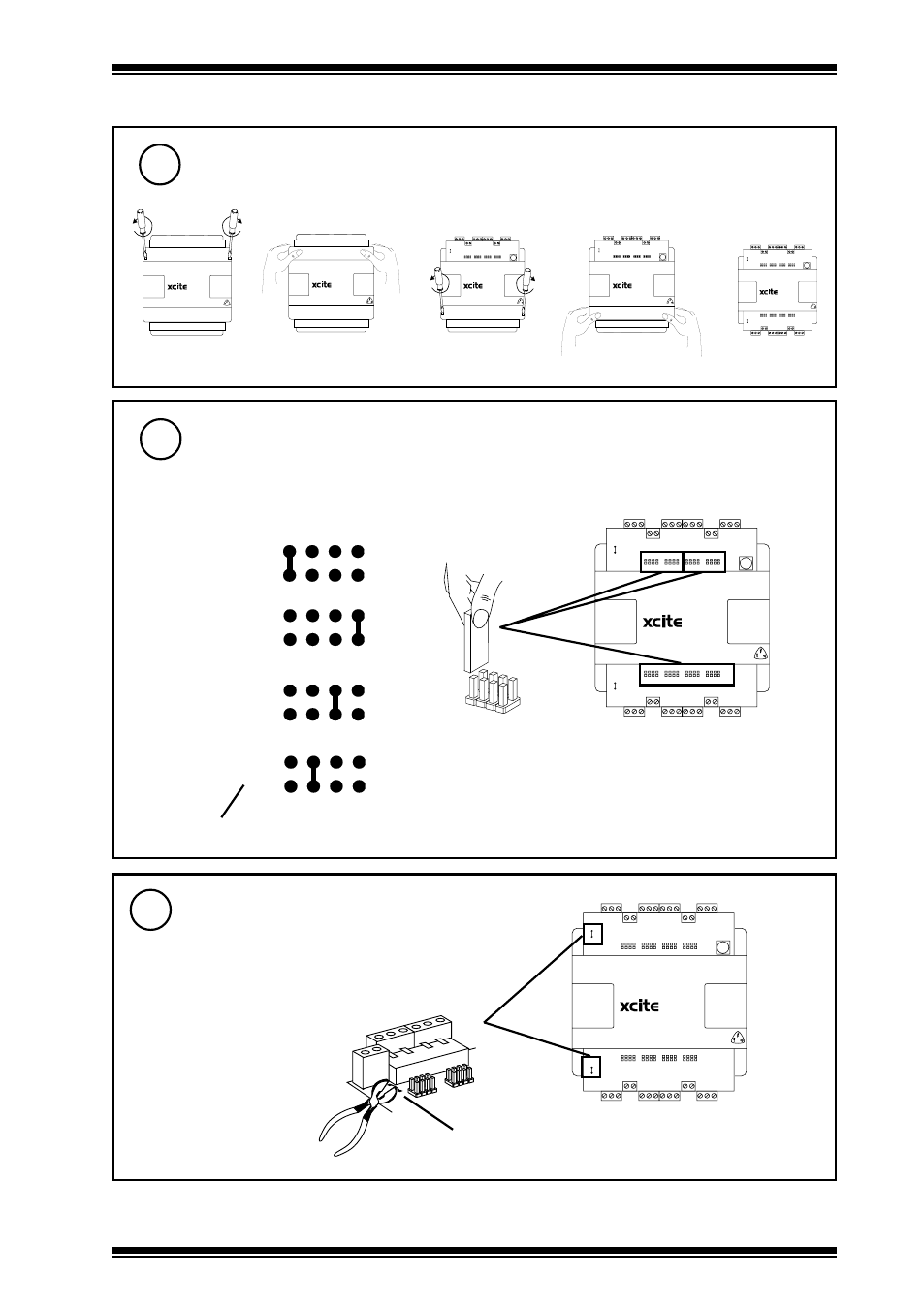

Remove Covers
5
a b c d e
6 Select Universal Input Channel Type
(Universal input I/O Modules only)
V (voltage)
I (current)
T (thermistor)
linking
D (digital)
either loop powered (I
L
), or external powered (I
x
)
XCITE/IO/8UI channels 1 to 8, ../4UI channels 1 to 4
../4UI/4AO, channels 1 to 4, ../2UI/2AO channels 1 to 2
8UI
7 Cut Screen Earth (Ground) Link(s)
(Universal input I/O Modules only)
screen earth (ground) link(s)
If screen earth (ground) segregated from I/O
module earth (ground) (see section 3 step 6)
8UI
