IQ23x Installation Instructions - Replacing IQ111

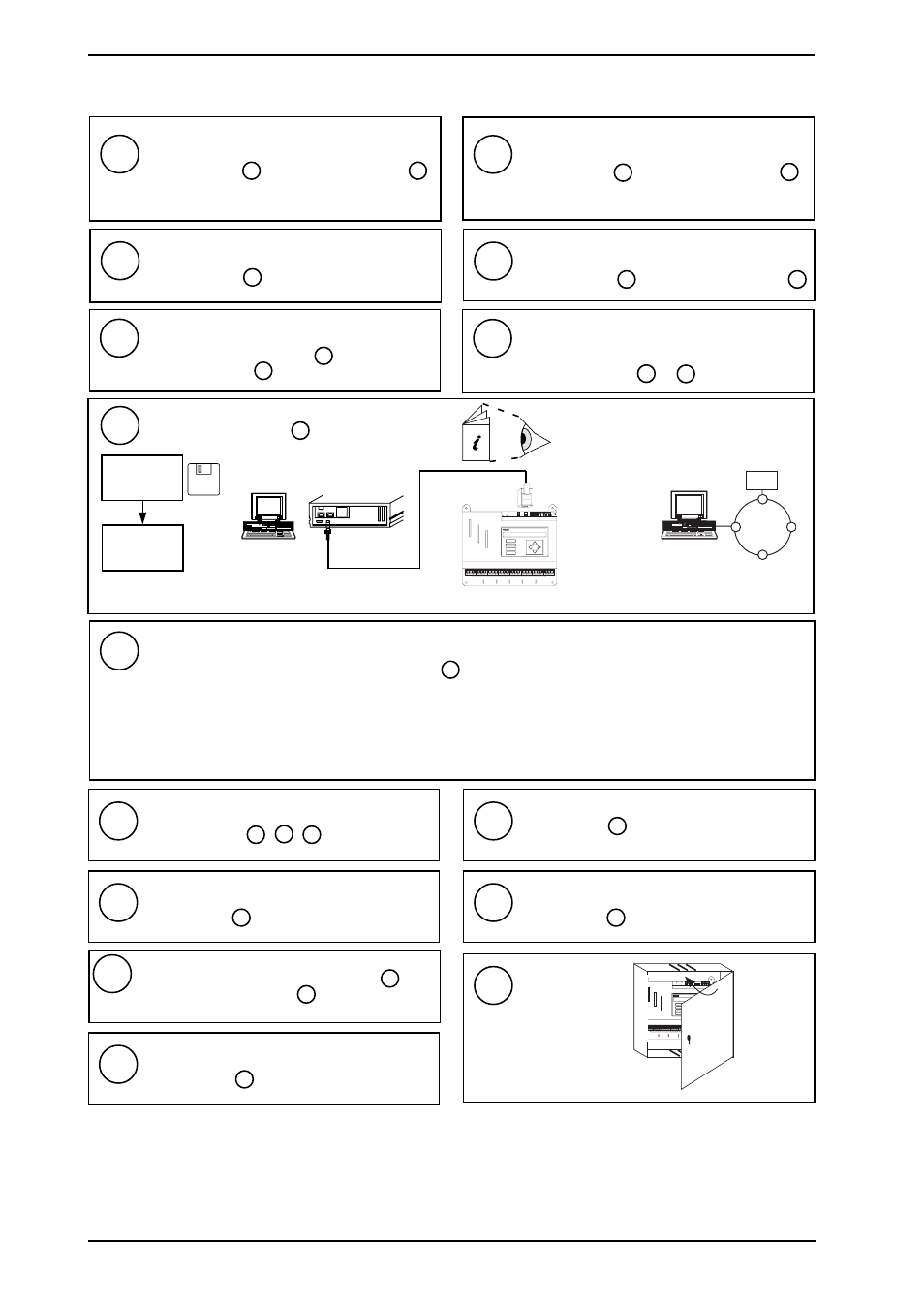

IQ23x Series Controllers Installation Instructions TG200539 Issue 1/A 26/3/02 4 - 4
19
Set Network Baud Rate to previous
as noted in step 10 above - see Sheet 2 step 6
4 Replacing an IQ111 with an IQ231
(continued)
20
Set Network Address to previous
as noted in step 3 above - see Sheet 2 step 9
21
Remove Cover
see Sheet 2 step 6
22
Link Input Channels
as noted in step 10 above - see Sheet 2 step 9
23
Fit Link Headers
to channels as noted in step 10 above
- see Sheet 2 step 10
24
Replace Cover, Switch On,
Check Controller, Check Network
- see Sheet 2 steps 11 to 14
I Q 2 3 1
Download Strategy file
25 WupDn Manual TE200162
PowerTool Manual TE200163
OR R X
T X O K
A
D
D P
C
B
1 2 8 4 16 32 64 1K 2 9K 6 19 K 2 A D D R E S S B A U D
9 'D type'
Female
Cable/EJ101442
RJ11
IQ231
WupDn or
PowerTool
IQ231
X.IQF
set time, date, day of week
26
Make IQ2xx Changes
27
Test Inputs, Test Outputs, Backup
see Sheet 2 step 16 17 18
28
Connect External Display Panel
29
Connect Local Supervisor
if noted in step 7 - see Sheet 3 section 3.2
30
Connect External NDP
if noted in step 7 - see Sheet 3 section 3.3
32
Connect Internal Node
if noted in step 10 - see Sheets 8, 9
33
Close Panel
1 2 3 4 5 6 7 8 9 1 0 R X T X O K A D D R E S S B A U D S W 4
A
D
D P
C B
J 1 6
D e v B
J 1 5
D e v A
previously saved in step 2 above
if noted in step 7 - see Sheet 3 section 3.1
either upload to SET and make changes,
or change in configuration mode - see Sheet 2 step 15 .
Loop Reschedule Time: Multiply by 5 and re-enter
Sensor Scaling Mode 1: If sensor outputs a voltage signal, and scaling mode 0, linear is being used, multipy T and B by 2 and re-enter.
Sensor Scaling Mode 2: If scaling mode 2 (linearise thermistor volts) is used, change it to sensor scaling mode 3 (linearise volts).
Shared Labels:
Set up digital input labels. (Copy from sensor channel of same number if appropriate).
Internal Sensors: If an internal sensor is used in internal digital mode, bit 506,1 should be set to one
31
Set Baud Rate of Supervisor
if 1k2 supervisor baud rate noted in step 10 , and
supervisor connected in step 29 above, set baud rate
of supervisor to 9k6
