QPHY-SATA Software Option
915745 Rev
G
29

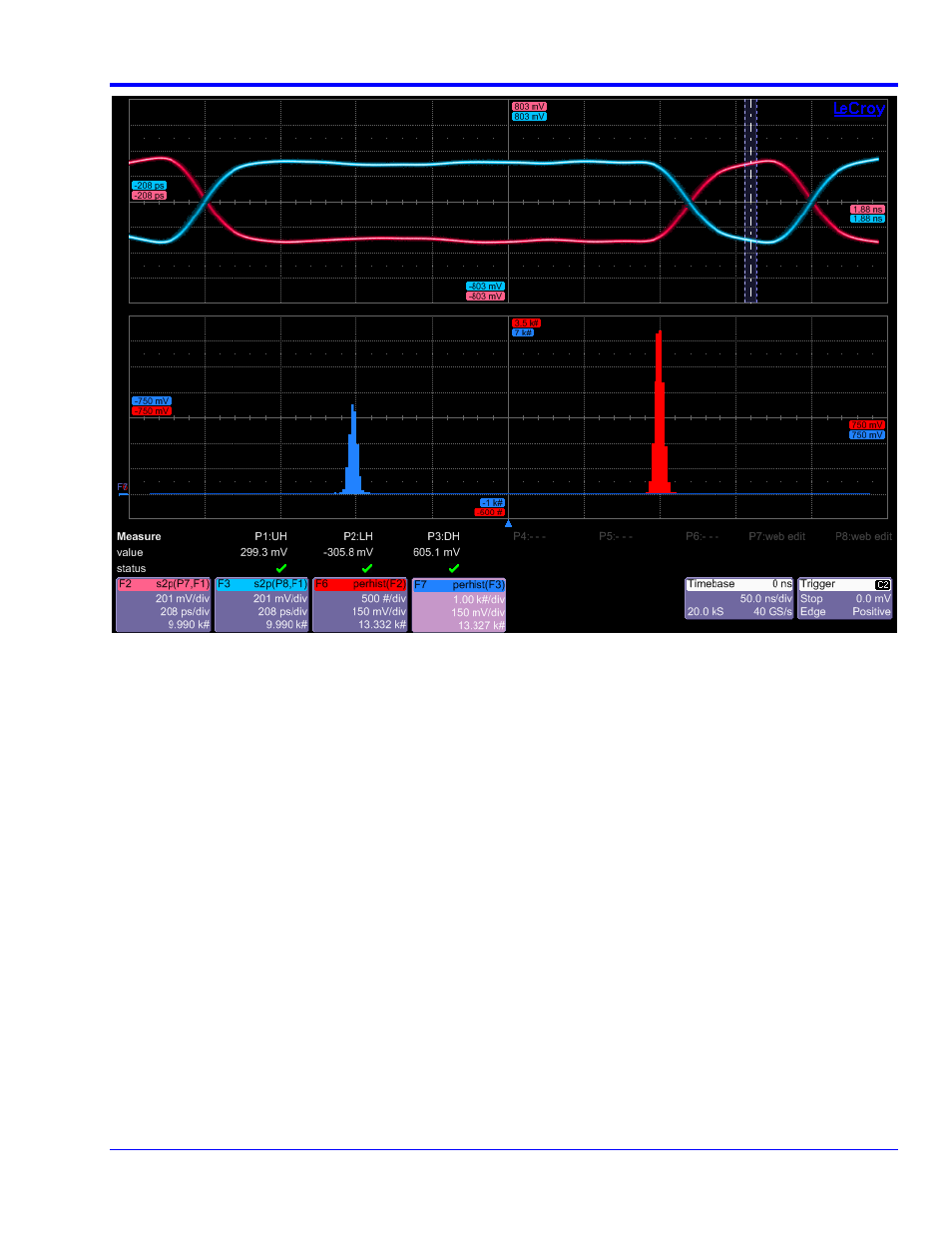

Figure 11. Screenshot of the VDiffMin measurement using LBP
The maximum differential output voltage is measured as a percentage of points exceeding half of the maximum
allowed voltage in the positive (pu) or negative (pl) directions. It is tested on MFTP and LFTP. The results are
reported for informational purposes only.
