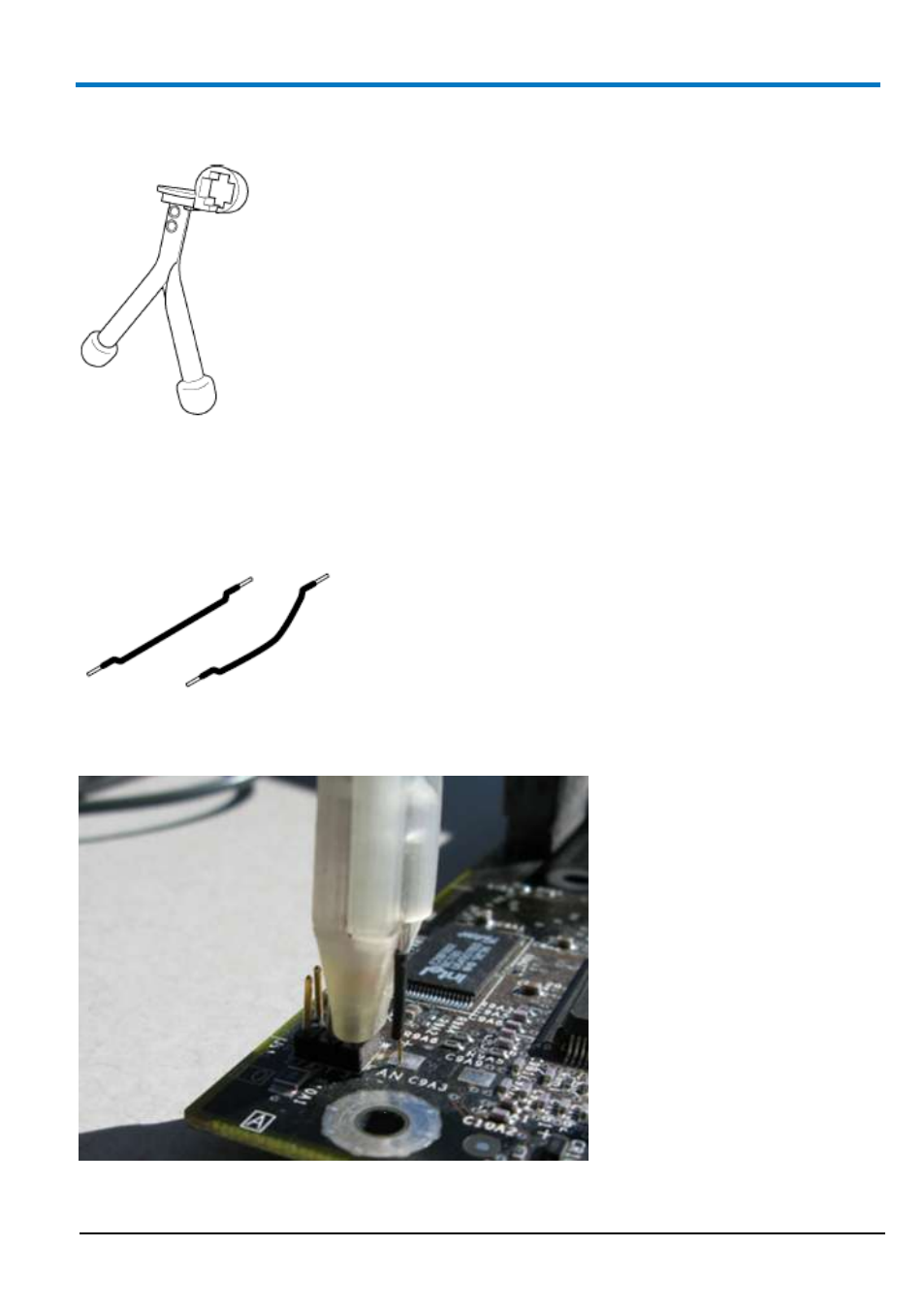

Freehand Probe Holder
The FreeHand lets you focus on the oscilloscope
screen instead of on maintaining contact to multiple
test points. It allows the user to concentrate on what
is really important – the waveform.
It is designed to keep most of the weight on the probe
tip and will prevent lost contact when a bump to the
table shakes the circuit under test.
Additionally, the ZD probe can be mounted
horizontally or vertically in the FreeHand, giving added
measurement flexibility.
Grounds
The bendable ground leads on the Long and Short
Spring-Loaded Bendable Grounds are designed to
be attached to the offset ground socket or be
attached to either socket of the probe head.
Below is an example using the short spring-loaded, bendable ground.
