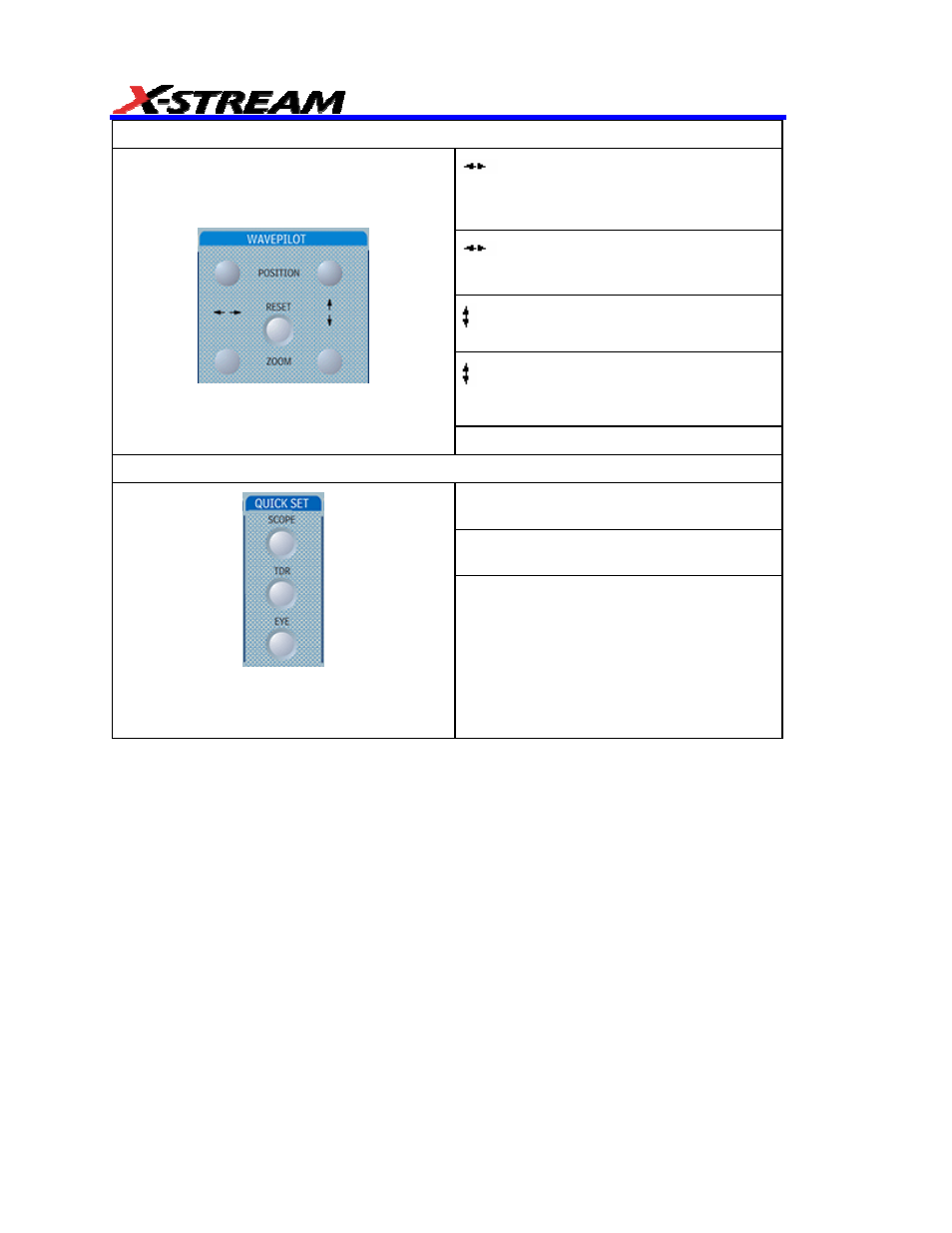

Wavepilot Control Knobs and Buttons:

P

OSITION

Adjusts the horizontal

position of a zoom trace on the display. The
zoom region is highlighted in color on the
source trace.

Z

OOM

Adjusts the horizontal zoom

(magnification factor) of the selected zoom
trace.

P

OSITION

Adjusts the vertical position of

the selected zoom trace on the display.

Z

OOM

Adjusts the vertical zoom

(magnification factor) of the selected zoom
trace on the display.

R

ESET

Resets the zoom factors.

Quick Set Buttons:

S

COPE

Takes the scope out of TDR or Eye

mode.

TDR –

Provides access to the TDR setup

dialog and sets the scope to TDR mode.

E

YE

Provides access to the Eye mode setup

dialog and sets the scope to eye mode.

The eye mode displays the eye pattern, using
display persistence (infinite). The optional SDA
analysis feature (standard on the SDA 100G)
enables a high throughput eye pattern that
collects data up to 20 times faster than the eye
mode.
