WaveExpert Getting Started Guide
WE-GS-E Rev A ISSUED: September 2005 33
Then use the keypad to type in the value. The S
ELECT
button steps through a dialog from one
control to the next.

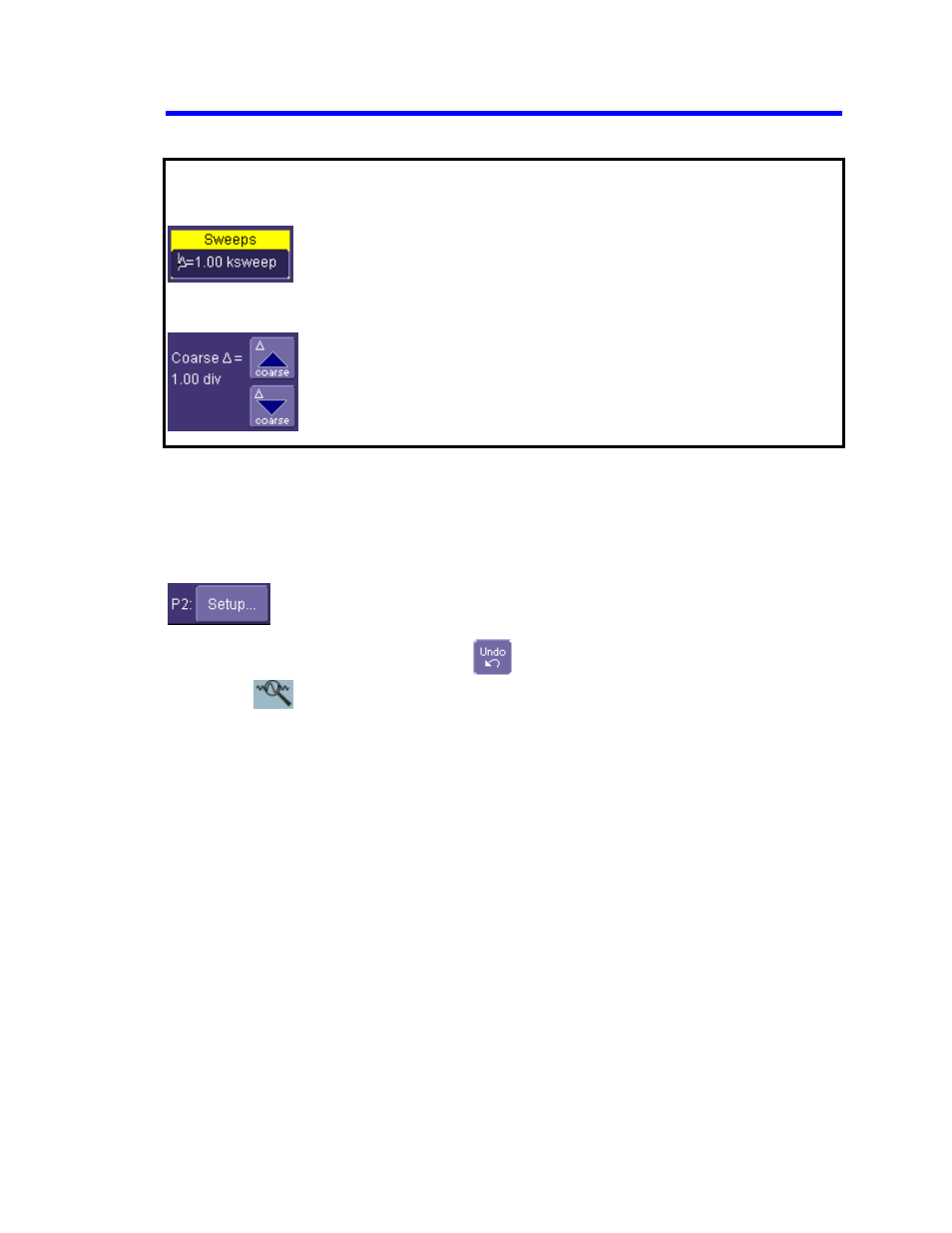

Note: You can set the granularity (delta) of the coarse adjustment in two ways:
• By pressing and holding the Fine front panel button while turning the Adjust knob. In this case you can read the
changing delta in the data entry field that is selected:
• By double-tapping inside the data entry field, then touching the Advanced checkbox in the pop-up numeric keypad. The
keypad presents Coarse delta up/down buttons to set the delta:
In the pop-up keypad, be sure to leave the Fine checkbox unchecked to adjust the coarse delta.
On-screen Toolbars, Icons, and Dialog Boxes
Menu Bar Buttons
The menu bar buttons at the top of the scope's display are designed for quick setup of common
functions. At the right end of the menu bar is a quick setup button that, when touched, opens the
setup dialog associated with the trace or parameter named beside it. The named trace or
parameter is the one whose setup dialog you last opened:
.
This button also appears as an undo button after front panel buttons Autosetup and
Q UICK Z OOM
are pressed. If you want to perform an Undo operation, it must be the very next
operation after you perform the Autosetup or QuickZoom operation.
