WaveExpert Getting Started Guide
WE-GS-E Rev A ISSUED: September 2005 29
Connecting to a Signal
Electrical Modules
The sampling modules are equipped with RF connectors of different types depending on the
bandwidth of the particular module, as indicated in the table below. The modules have male
connectors, and each module is shipped with a female-to-female adapter that matches the
connector type. This adapter should be attached to the module whenever possible, as it will
protect the connector on the module from possible damage caused by incorrect threading of
cables or connectors.

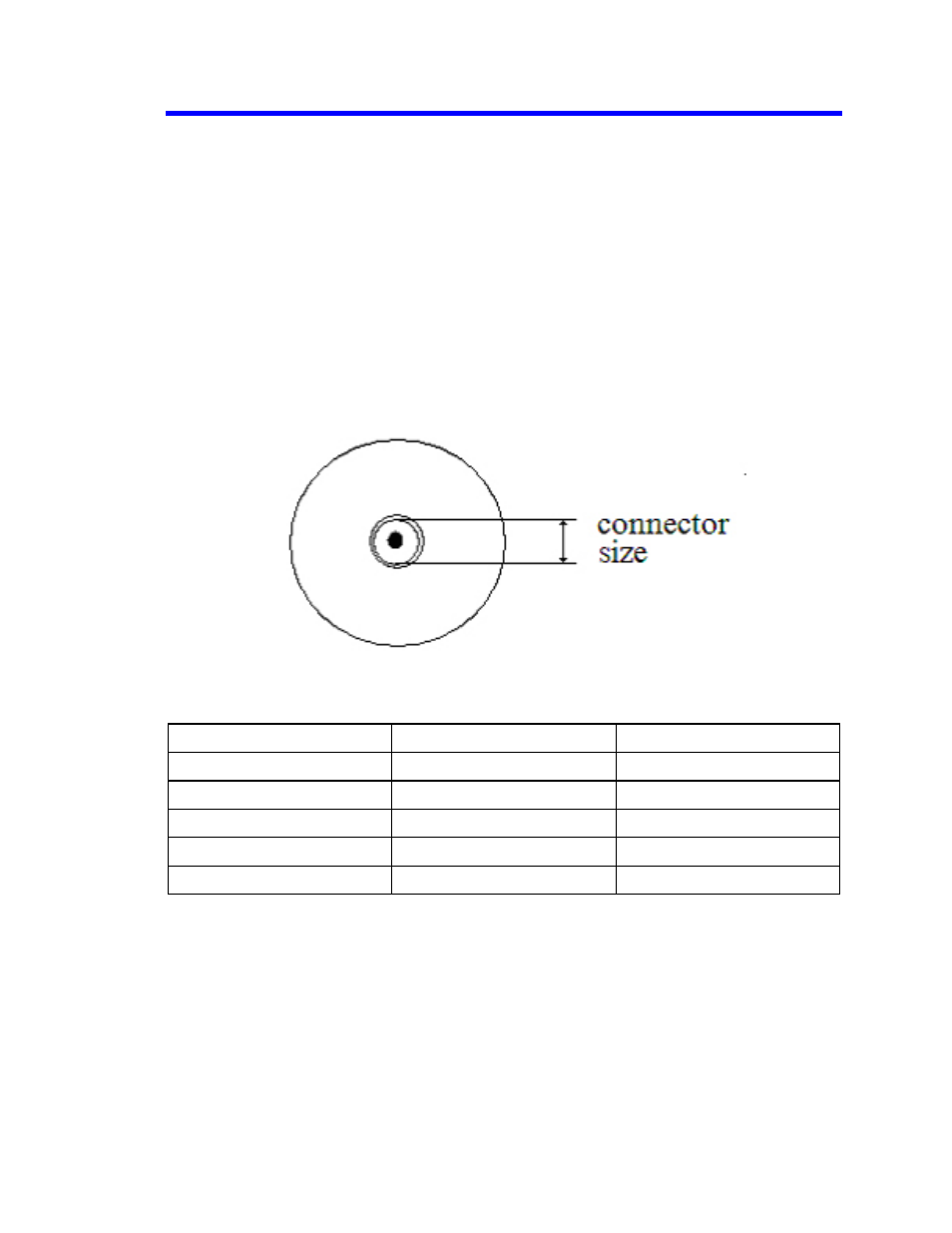

The connector types on the modules are named according to the inside diameter of their outer
conductor. This diameter must be matched within any connectors or cables attached to the
module in order to maintain the specified bandwidth.
Module Bandwidth Connector Type
ST-20 20 GHz 2.92 mm
SE-30 30 GHz 2.92 mm
SE-50 50 GHz 2.40 mm
SE-70 70 GHz 1.85 mm
SE-100 100 GHz 1 mm
