Installation

Hardware Connections for WaveMaster, WavePro, SDA, and DDA Models

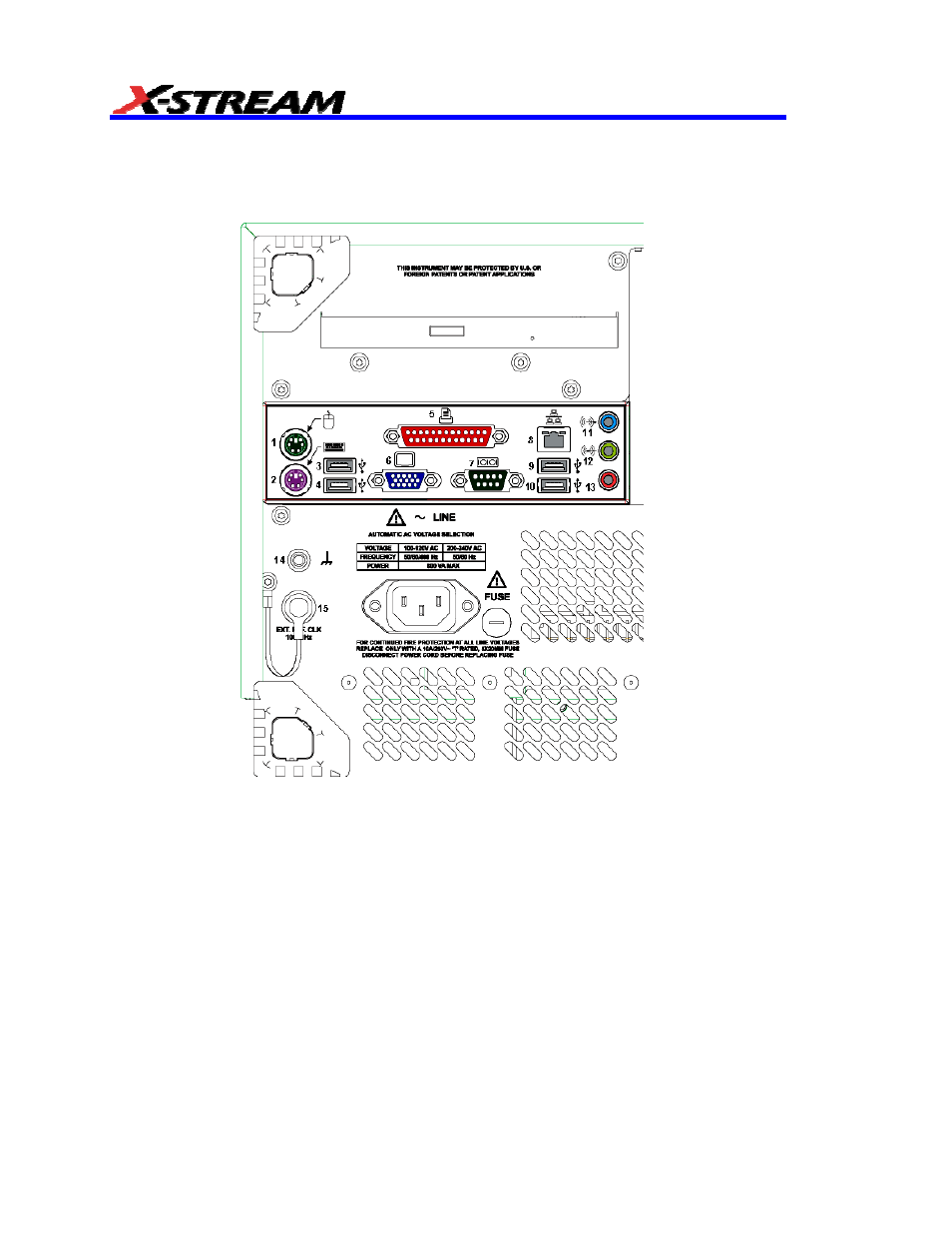

Rear Panel Diagram: (1) Mouse Port; (2) Printer Port; (3) USB Port; (4) USB Port; (5)
Centronics Port;(6) External VGA Monitor; (7) RS-232-C Port; (8) Ethernet Port; (9) USB
Port; (10) USB Port; (11) Line In; (12) Speakers; (13) Microphone; (14) Ground Connector;
(15) Gated Trigger
