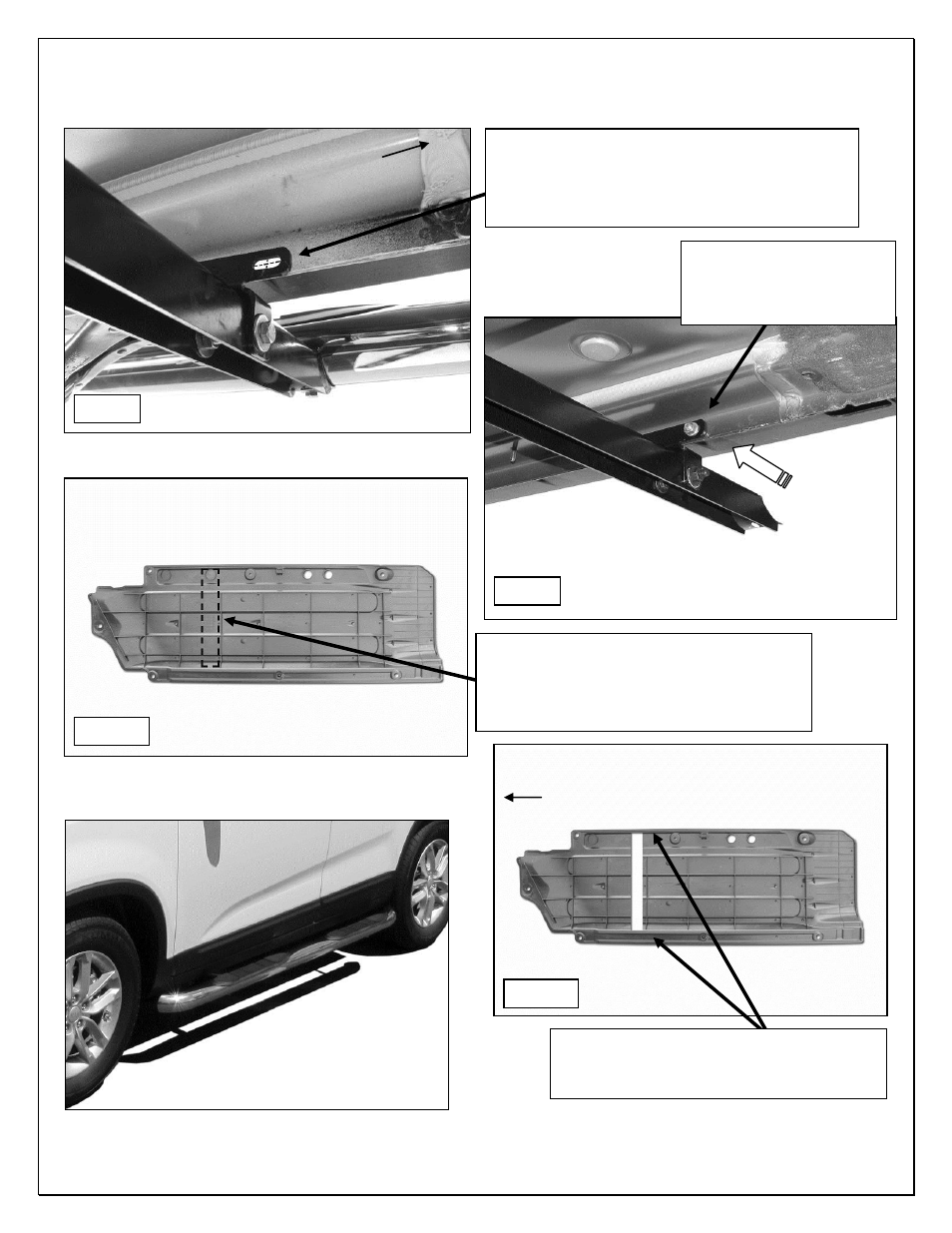

Steelcraft Automotive 280310 3 ROUND SIDE BAR - Manual (Page 6)

3" SIDEBAR
2014 SORENTO
Page 6 of 6 10/3/13 (DP)
Driver Side Installation Pictured
Fig 14
Fig 16A
Fig 16B
Complete Installation
Front
Front
Mark the Bracket location onto back of pinch
weld. Do not drill until after Sidebar is properly
aligned and adjusted. Use clamp to temporarily
hold Support Bracket in place. Do not drill too
close to bottom edge of pinch weld
After Sidebar has been properly aligned
and adjusted, hold the plastic cover up in
place against the front Bracket. Trace the
Bracket location onto the cover. Cut slot
out of cover to clear front Bracket.
IMPORTANT: Do not cut through the inner
or outer edge of the cover. Only remove
material required for Bracket clearance
(2) 6mm x 25mm Hex Bolts
(4) 6mm Flat Washers
(2) 6mm Lock Washers
(2) 6mm Hex Nuts
Fig 15
