Steelcraft Automotive 114000 RUNNING BOARD User Manual
Page 6
VIEWPOINT RUNNING BOARDS
2013 FORD ESCAPE
Page 6 of 7
9/12/12 (DP)
Driver Side Installation Pictured
12mm Flat Washer
12mm Lock Washer
12mm Hex Nut
Front
Rear
Rear
Rear

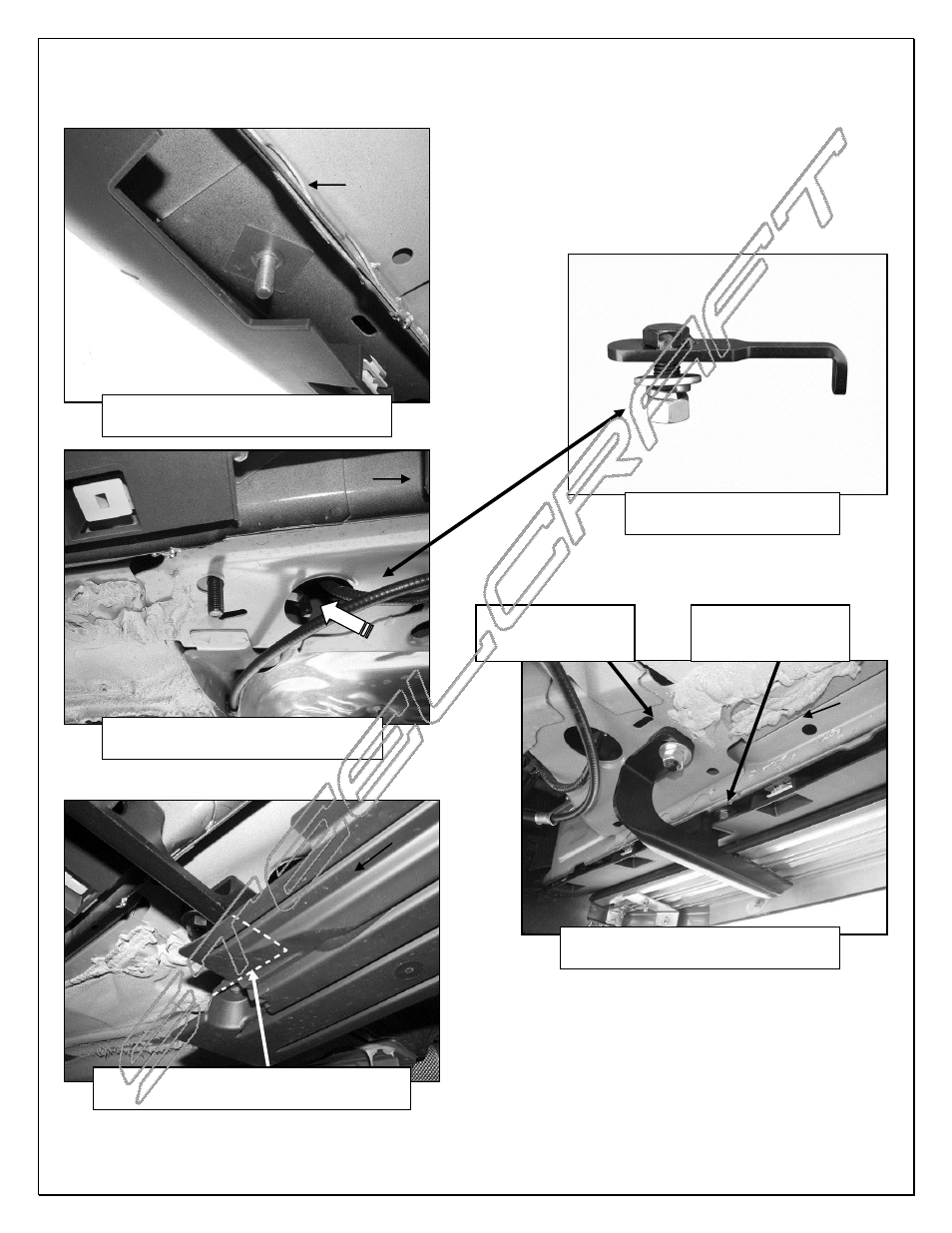

(Fig 17) Rear mounting location with
Bolt Plate pictured from below
(Fig 18) 12mm x 35mm Bolt
Plate for rear Bracket only
(Fig 19) Insert 12mm Bolt Plate into
large hole and out smaller hole
10mm Flat Washer
10mm Lock Washer
10mm Hex Nut
(Fig 20) Rear Bracket pictured from
below with Running Board installed
(Fig 21) Hold plastic cover up in position
to determine area to cut from cover
