Page 33

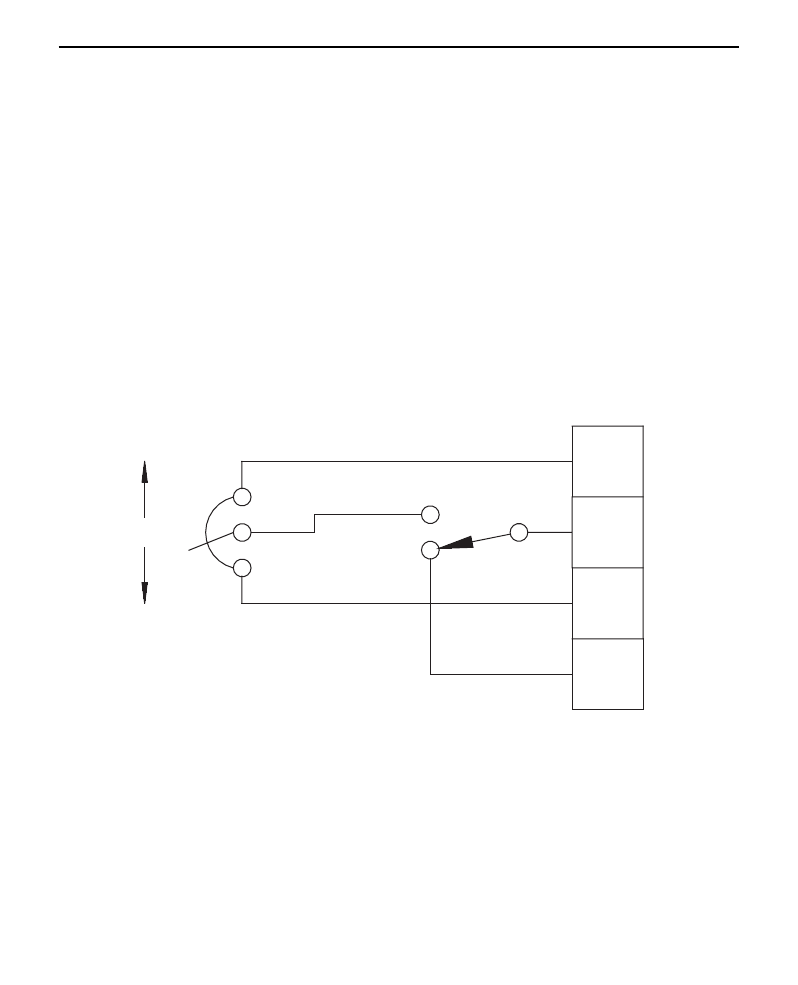

Figure 17. Run / Decelerate to Minimum Speed Switch
(shown with bidirectional connection)
Decelerate to minimum speed
The circuit shown in Figure 17 may be used to decelerate a
motor to a minimum speed. Closing the switch between S2 and
S0 decelerates the motor from set speed to a minimum speed
determined by the MIN SPD trimpot setting. If the MIN SPD
trimpot is set full CCW, the motor decelerates to zero speed
when the switch between S2 and S0 is closed. The DECEL
trimpot setting determines the rate at which the drive
decelerates. Set the switch to the RUN position to accelerate
the motor to set speed at a rate determined by the ACCEL
trimpot setting.
27
Starting and Stopping Methods
TB502
S1
S2
S3
10K
CW
S0
REV
FWD
RUN
DECEL TO
MIN SPD
