Starting and Stopping Methods
Regenerative brake
Short the INHIBIT terminals to regeneratively brake the motor
(see Figure 15 for INHIBIT terminal location). Reopening the
INHIBIT terminals causes the motor to run at set speed.
The INHIBIT terminals bypass both the MIN SPD circuit and
the deceleration circuit. This causes the motor to stop rapidly
when the INHIBIT terminals are shorted. Braking torque is
determined by the opposite-direction torque setting.

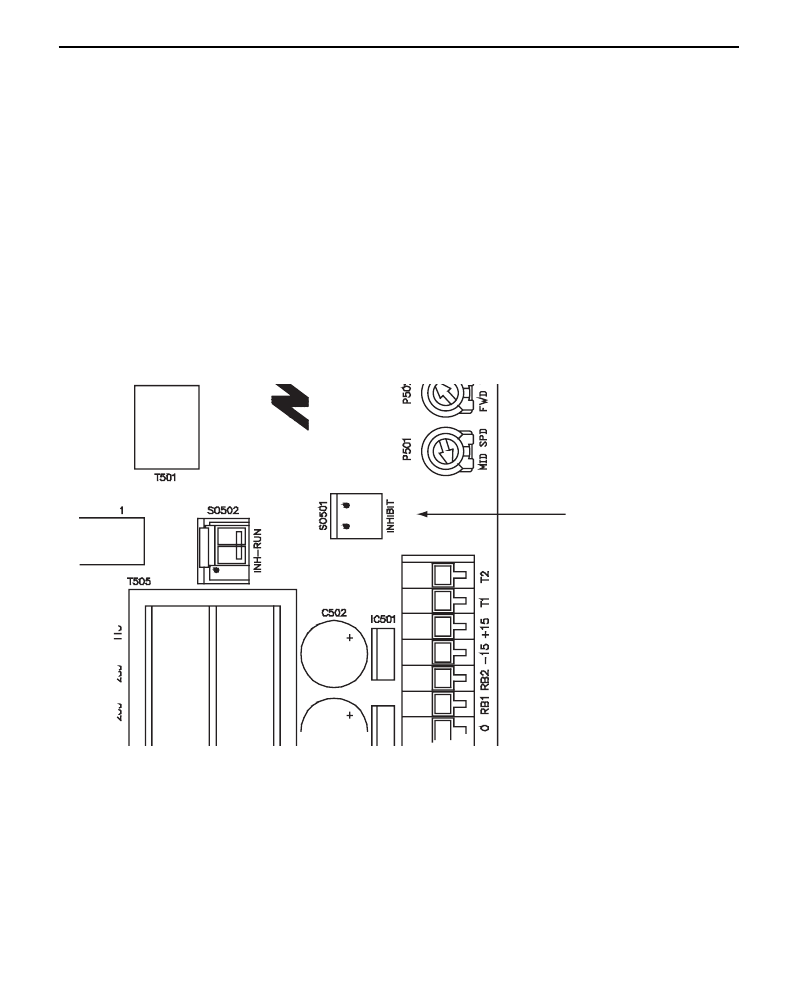

INHIBIT
TERMINALS
Figure 15. Inhibit Terminals
