Cage-clamp terminal block
Connections to drives are made to a cage-clamp terminal block
(Figure 6). To insert a wire into the terminal block, press down
on the lever arm using a small screwdriver. Insert stripped wire
into the large opening in front of the terminal block. Release
the lever arm to clamp the wire.

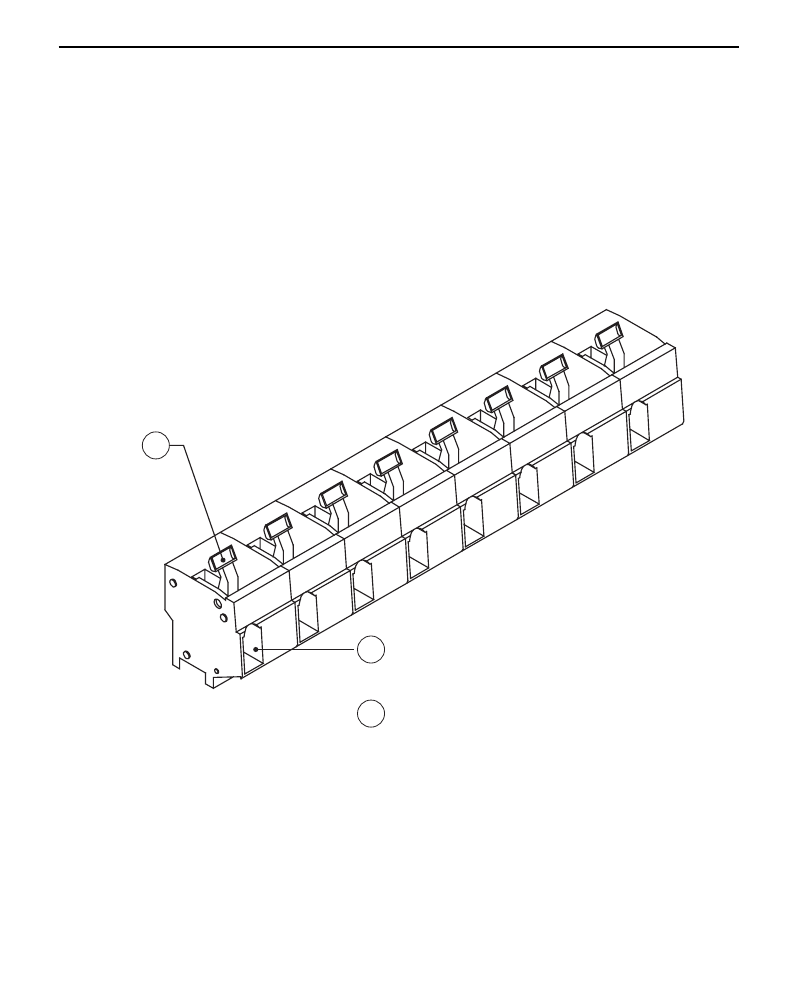

Figure 6. Cage-Clamp Terminal Block
Press down on the
lever arm using
a small screwdriver.
Insert wire into the
wire clamp.
1
2
Release the lever arm
to clamp the wire.
3
