56
SECTION VIII
Technical Information
The following section contains various technical information important to the service person in servicing and
maintaining the dryer.
A. Motor Plate (High and Low Voltage)

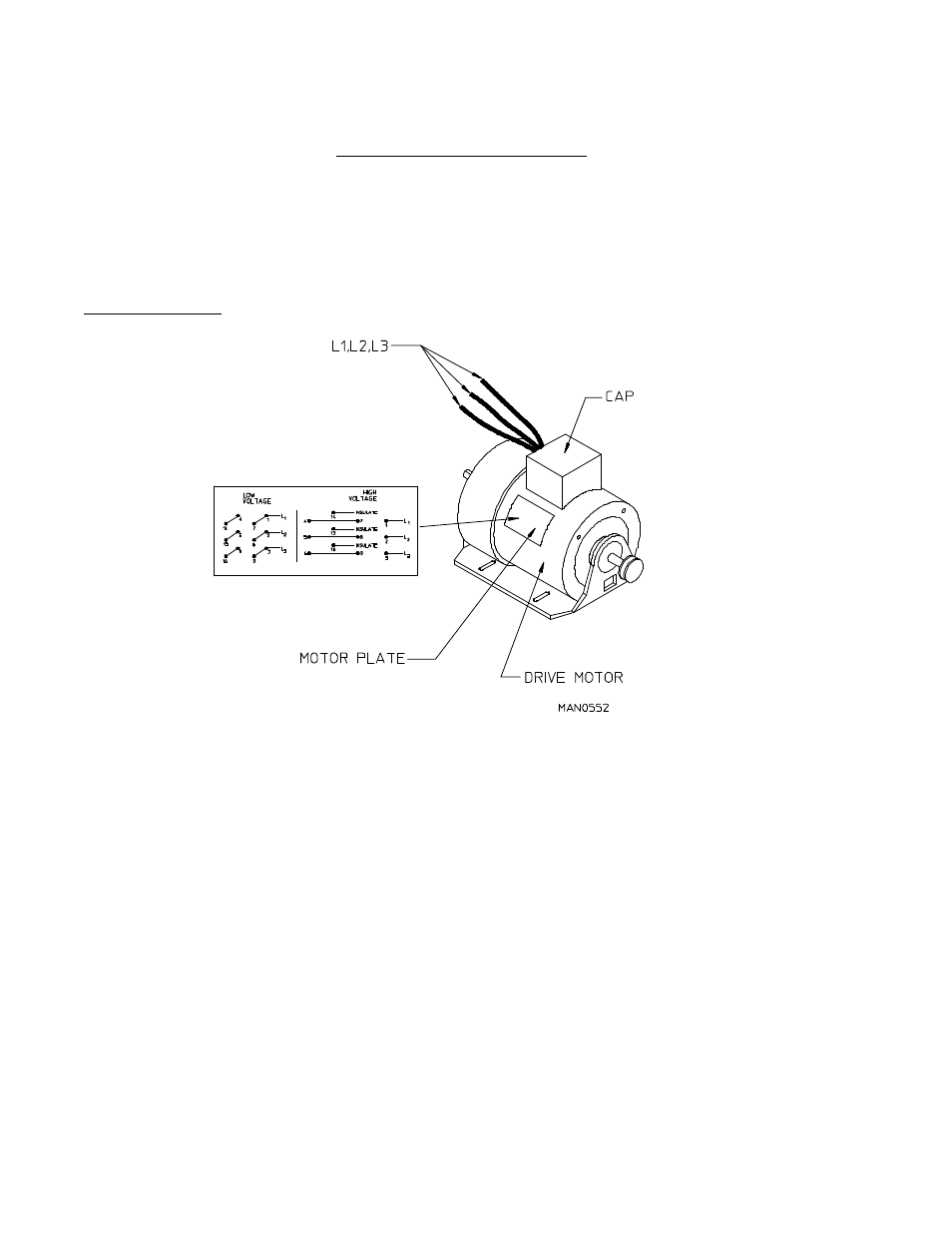

The motor plate is located on the side of the drive motor (see illustration) and contains a graphical representation
of the motor wiring for both low voltage rating and high voltage rating.
Removing the cap reveals the wiring to the motor. On each wire there is a number which corresponds to the
numbers on the motor plate. Depending on whether the dryer is operating on low voltage or high voltage, the
wiring should match the motor plate as follows:
The dots and lines represent connections (see illustration). For example:
On Low Voltage - wire #14 is connected to wire #4
- wire #1 is connected to wire #7, which in turn are both connected to L1
On High Voltage - wire #14 is insulated or capped
- wire #4 is connected to wire #7
- wire #1 is connected to L1
